433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器，尺寸7.0×5.0mm，频率27MHZ，Oscilent进口晶振，石英晶体振荡器，XO时钟振荡器，7050mm有源晶振，有源贴片晶振，四脚贴片有源晶振，有源晶体振荡器，低抖动有源晶振，低功耗有源晶振，低电压有源晶振，低耗能有源晶振，智能家居有源晶振，网络设备有源晶振，6G无线模块晶振，蓝牙模块有源晶振，物联网晶振，仪器仪表晶振，测试设备有源晶振，具有低电压低抖动的特点。
OSC晶振产品很适合用于智能家居，网络设备，6G无线模块，蓝牙模块，物联网，仪器仪表，测试设备等领域。433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器.
433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器 参数表
|
Parameter
|
Conditions
|
Characteristics
|
Units
|
|
Output Logic
|
-
|
HCMOS / TTL Output
|
-
|
|
Input Voltage (VDD)
|
-
|
3.3±10%
|
5.0±10%
|
VDC
|
|
Frequency Range (fO)
|
-
|
1.544~133.333
|
MHz
|
Operating
Temperature (TOPR)
|
-
|
0 ~ +70 (Std.) / -40 ~ 85 (Option)
|
°C
|
Storage Temperature
(TSTG)
|
TSTG
|
-55 ~ +125
|
°C
|
|
Frequency Stability
|
a + b + c + d
|
±25, ±50, ±100 max.
|
PPM
|
|
(a) Frequency Tolerance
|
Inclusive of Overall Stability
|
-
|
|
(b) Temperature Stability
|
Inclusive of Overall Stability (Operating
Temperature)
|
-
|
|
(c) Input Voltage Stability
|
Inclusive of Overall Stability (VDD ±10%)
|
-
|
|
(d) Load Stability
|
Inclusive of Overall Stability (RL ±5%)
|
-
|
|
Input Current (IDD)
|
-
|
12 ~ 60 max.
|
25 ~ 100 max.
|
mA
|
|
Aging
|
@ 25°C
|
±5 max.
|
PPM/Y
|
Rise Time (TR) / Fall
Time (TF)
|
-
|
8 max. (0.4V to 2.4V w/ TTL, 20% ~ 80%
/ HCMOS)
|
nS
|
|
PIN 1 Tri-State
|
-
|
Option
|
-
|
Output Voltage High
"1" VOH
|
TTL Load
|
2.4 min
|
VDC
|
|
HCMOS Load
|
2.7 min.
|
VDD-0.5 min.
|
Output Voltage Low
"0" VOL
|
TTL Load
|
0.4 max.
|
VDC
|
|
HCMOS Load
|
0.5 max.
|
|
Duty Cycle
|
-
|
50 ±10 (Std.) / 50 ±5 (Option)
|
%
|
|
Start-Up Time (TS)
|
1~ 35 MHz
|
4 max.
|
mS
|
|
35 ~ 125.000 MHz
|
10 max.
|
 Jitter
|
(Bandwidth 12Khz ~ 20Mhz)
|
±1
|
ps RMS
|

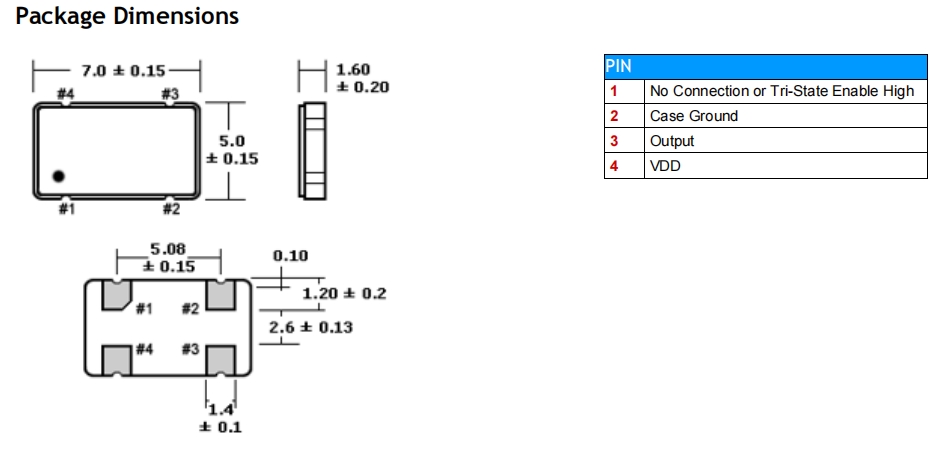

433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器 尺寸图
433-27.0M-3EN-TTS,6G无线模块晶振,奥斯康利时钟振荡器
7050mm贴片晶振产品特点：
1pS时的超低抖动
低功耗
待机功能
磁带和卷轴
微型外形
3.3V或5.0V可选
