ECS高性能晶振/ECS-2100AX-283.2/6G无线模块晶振

频率:28.332MHz

尺寸:13.20mmx13.20mm

ECS高性能晶振/ECS-2100AX-283.2/6G无线模块晶振美国进口晶振,ECS伊西斯晶振,型号ECS-2100X,编码为ECS-2100AX-283.2,频率为:28.332MHz,尺寸为:13.20mm x 13.20mm,ECS-2100X系列时钟振荡器,有源晶体,石英晶振,石英晶体振荡器,8引脚DIP时钟振荡器提供低电流消耗,并兼容HCMOS/TTL逻辑。带有针#4外壳接地的金属包装作为屏蔽作用,以减少辐射具有HCMOS/TTL逻辑兼容宽频范围,低功耗,电阻焊包3.3V操作(可选),符合无铅/RoHS标准。应用于通讯设备,无线网络,蓝牙模块,GPS定位,物联网,数码电子,车载设备,医疗设备等应用.
订购热线:0755-27838351
QQ咨询 点击这里给我发消息

ECS高性能晶振/ECS-2100AX-283.2/6G无线模块晶振美国进口晶振,ECS伊西斯晶振,型号ECS-2100X,编码为ECS-2100AX-283.2,频率为:28.332MHz,尺寸为:13.20mm x 13.20mm,ECS-2100X系列时钟振荡器,石英晶振,石英晶体振荡器,有源晶体8引脚DIP时钟振荡器提供低电流消耗,并兼容HCMOS/TTL逻辑。带有针#4外壳接地的金属包装作为屏蔽作用,以减少辐射具有HCMOS/TTL逻辑兼容宽频范围,低功耗,电阻焊包3.3V操作(可选),符合无铅/RoHS标准。应用于通讯设备,无线网络,蓝牙模块,GPS定位,物联网,数码电子,车载设备,医疗设备等应用.

ECS高性能晶振/ECS-2100AX-283.2/6G无线模块晶振参数表

PARAMETERS FREQUENCY RANGE CONDITIONS MINIMUM TYPICAL MAXIMUM UNITS
FREQUENCY RANGE (fo) 1.000 ~ 150.000 1 150 MHz
OPERATING TEMP. RANGE (TOPR) 1.000 ~ 150.000 0 70
STORAGE TEMP. RANGE    (TSTG) 1.000 ~ 150.000 -55 125
FREQUENCY STABILITY 1.000 ~ 150.000 All conditions* -100 100 PPM
1.000 ~ 25.000 17 25 mA
INPUT CURRENT (IDD) 25.000 ~ 50.000 33 46 mA
50.000 ~ 80.000 45 77 mA
80.000 ~ 150.000 67 82 mA
OUTPUT SYMMETRY 1.000 ~ 80.000 50%  VDD level 45 50 ±3 55 %
80.000 ~ 150.000 50%  VDD level 40 50 ±3 60 %
RISE TIME (TR) 1.000 ~ 150.000 10% ~ 90% VDD level 5 nS
FALL TIME (TF) 1.000 ~ 150.000 90% ~ 10% VDD level 5 nS
OUTPUT VOLTAGE (VOL ) 1.000 ~ 150.000 IOL = 16 mA 0.5 V
(VOH) 1.000 ~ 150.000 IOH = - 16 mA 4.5 V
OUTPUT CURRENT (IOL ) 1.000 ~ 100.000 VOL = 0.5 V 16 mA
(IOH ) 1.000 ~ 150.000 VOH = 4.5 V -16 mA
OUTPUT LOAD 1.000 ~ 150.000 TTL 10 TTL
1.000 ~ 80.000 HCMOS 50 pF
80.000 ~ 150.000 HCMOS 30 pF
START-UP TIME (TS ) 1.000 ~ 150.000 0.0V TO 5.0V 10 mS
SUPPLY VOLTAGE  (VDC) +5.0 ±0.25 VDC

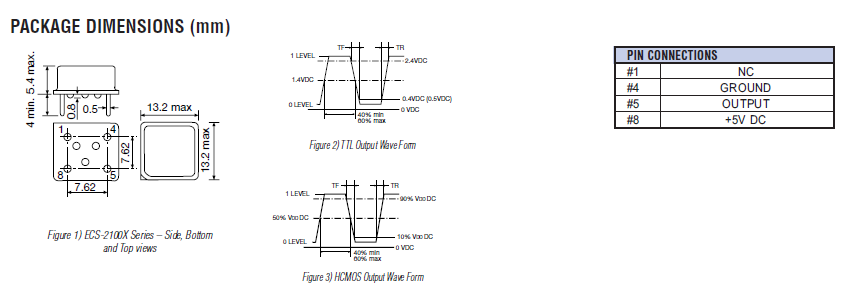

ECS高性能晶振/ECS-2100AX-283.2/6G无线模块晶振,尺寸图

ecs-2100x 13.2_13.2 ECS OSC

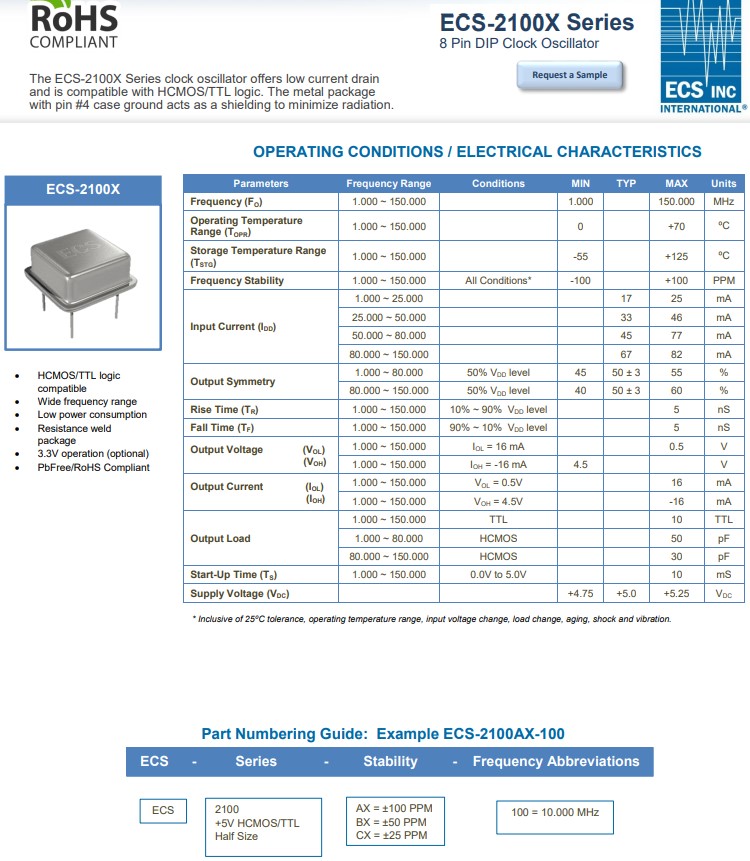

ECS高性能晶振/ECS-2100AX-283.2/6G无线模块晶振

The ECS-2100X Series clock oscillator offers low current drain and is compatible with    HCMOS/TTL logic. The metal package with pin #4 case ground acts as a shielding to      minimize radiation.
FEATURES
• HCMOS/TTL logic compatible
• Wide frequency range  石英晶体振荡器
• Low power consumption
• Resistance weld package
• 3.3V operation (optional)
• PbFree/RoHS Compliant

ECS-2100X-1

原厂代码 石英晶振厂家 型号 频率 工作温度 Size / Dimension 尺寸
ECS-2100AX-200 ECS晶振 ECS-2100X 20MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-200 ECS晶振 ECS-2200X 20MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-080 ECS晶振 ECS-2200X 8MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-400 ECS晶振 ECS-2200X 40MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-120 ECS晶振 ECS-2100X 12MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-036 ECS晶振 ECS-2100X 3.6864MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-400 ECS晶振 ECS-2100X 40MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-300 ECS晶振 ECS-2100X 30MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-147.4 ECS晶振 ECS-2100X 14.7456MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-500 ECS晶振 ECS-2100X 50MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-049 ECS晶振 ECS-2100X 4.9152MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-160 ECS晶振 ECS-2200X 16MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-800 ECS晶振 ECS-2200X 80MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-100 ECS晶振 ECS-2200X 10MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-060 ECS晶振 ECS-2200X 6MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-040 ECS晶振 ECS-2200X 4MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-040 ECS晶振 ECS-2100X 4MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-098.3 ECS晶振 ECS-2100X 9.8304MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-184 ECS晶振 ECS-2100X 18.432MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-110.5 进口晶振 ECS-2100X 11.0592MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-480 ECS晶振 ECS-2100X 48MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-100 ECS晶振 ECS-2100X 10MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-196.6 ECS晶振 ECS-2100X 19.6608MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-240 ECS晶振 ECS-2200X 24MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-098 ECS晶振 ECS-2200X 9.8304MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-110.5 ECS晶振 ECS-2200X 11.0592MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-320 ECS晶振 ECS-2200X 32MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-480 ECS晶振 ECS-2200X 48MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-500 ECS晶振 ECS-2200X 50MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-160 ECS晶振 ECS-2100X 16MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-073 ECS晶振 ECS-2200X 7.3728MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-080 ECS晶振 ECS-2100X 8MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-073.7 ECS晶振 ECS-2100X 7.3728MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-196 ECS晶振 ECS-2200X 19.6608MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2200BX-049 ECS晶振 ECS-2200X 4.9152MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-283.2 ECS晶振 ECS-2100X 28.332MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-092.1 ECS晶振 ECS-2100X 9.216MHz 0°C ~ 70°C 0.520" L x 0.520" W (13.20mm x 13.20mm)
