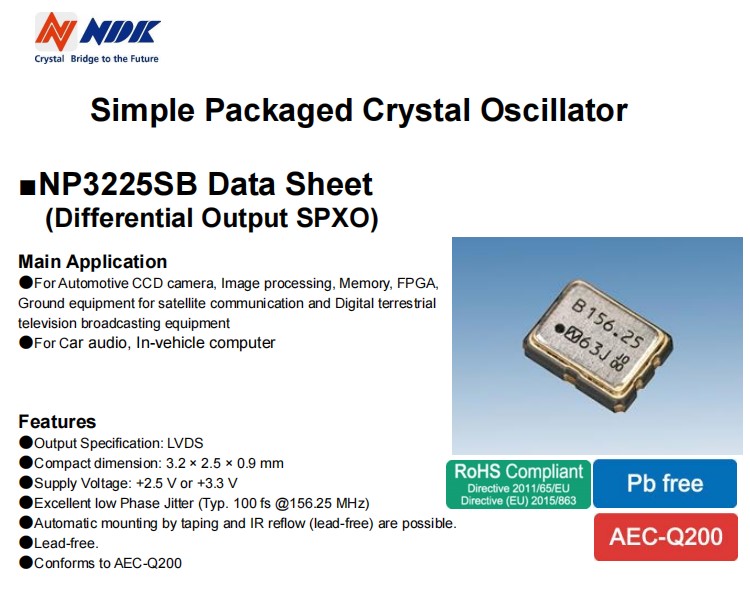

NDK差分晶振,NP3225SB-148.351648MHz-NSC5344A,汽车音响6G晶振，日本进口晶振，NDK晶振，型号NP3225SB，编码为：NP3225SB-148.351648MHz-NSC5344A，频率为：148.351648MHz，小体积晶振尺寸：3.2x2.5mm，六脚贴片晶振，LVDS输出差分晶振，SPXO石英晶体振荡器，电源电压：+2.5V或+3.3V，低相位抖动：典型。100fs@156.25MHz，可以通过胶带和IR回流（无铅）自动安装，符合AEC-Q200标准，有源晶振，石英晶振，贴片晶振，无铅环保晶振，差分晶体振荡器使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的。被广泛用于6G兼容设备、基站、光网络单元、SDH/SONET设备，低端路由器、以太网、光收发器，汽车级晶振，汽车音响、汽车电脑，通讯设备，无线网络，蓝牙模块，光模块，路由器等应用，

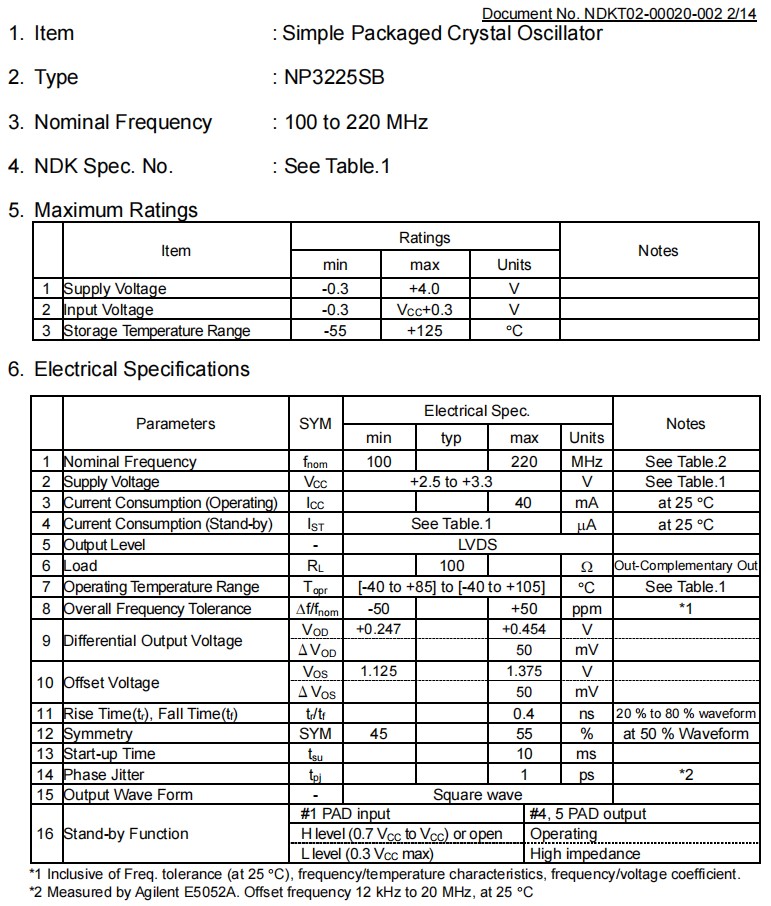

NDK差分晶振,NP3225SB-148.351648MHz-NSC5344A,汽车音响6G晶振，参数表
|
Item
|
Symbol
|
NP3225SB
|
Unit
|
|
Nominal frequency range
|
fnom
|
148.351648MHz
|
|
MHz
|
|
Package size (L×W×H)
|
-
|
3.2×2.5×0.9
|
mm
|
|
Supply voltage
|
Vcc
|
+2.5 to +3.3
|
V
|
|
Current consumption
|
ICC
|
Max. 40
|
mA
|
|
Stand-by current
|
IST
|
Max. 15
|
Max. 30
|
Max. 15
|
Max. 30
|
μA
|
|
Output specification
|
-
|
LVDS
|
-
|
|
Load
|
RL
|
100
|
Ω
|
|
Storage temperature range
|
Tstr
|
-55 to +125
|
℃
|
|
Operating temperature range
|
Topr
|
-40 to +85
|
-40 to +105
|
-40 to +85
|
-40 to +105
|
℃
|
|
Overall frequency tolerance
|
Δf/fnom
|
Max. ±50
|
ppm
|
|
Offset Voltage
|
VOD
|
+0.247 to +0.454
|
V
|
|
Offset Voltage
|
ΔVOD
|
Max. 50
|
mV
|
|
Differential Output Voltage
|
VOS
|
+1.125 to +1.375
|
V
|
|
Differential Output Voltage
|
ΔVOS
|
Max. 50
|
mV
|
|
Rise (tr), fall (tf) time (20% to 80% WaveForm)
|
tr/tf
|
Max. 0.4
|
ns
|
|
Symmetry (at 50 % Waveform)
|
SYM
|
45 to 55
|
%
|
|
Start-up time
|
tsu
|
Max. 10
|
ms
|
|
Phase jitter
|
tpj
|
Max. 1
|
ps
|
|
Specification number （Vcc=2.5V±5%）
|
-
|
NSC5343A
|
NSC5344A
|
NSC5236A
|
NSC5238A
|
-
|
|
Specification number （Vcc=3.3V±10%）
|
-
|
NSC5343B
|
NSC5344B
|
NSC5236B
|
NSC5238B
|
-
|

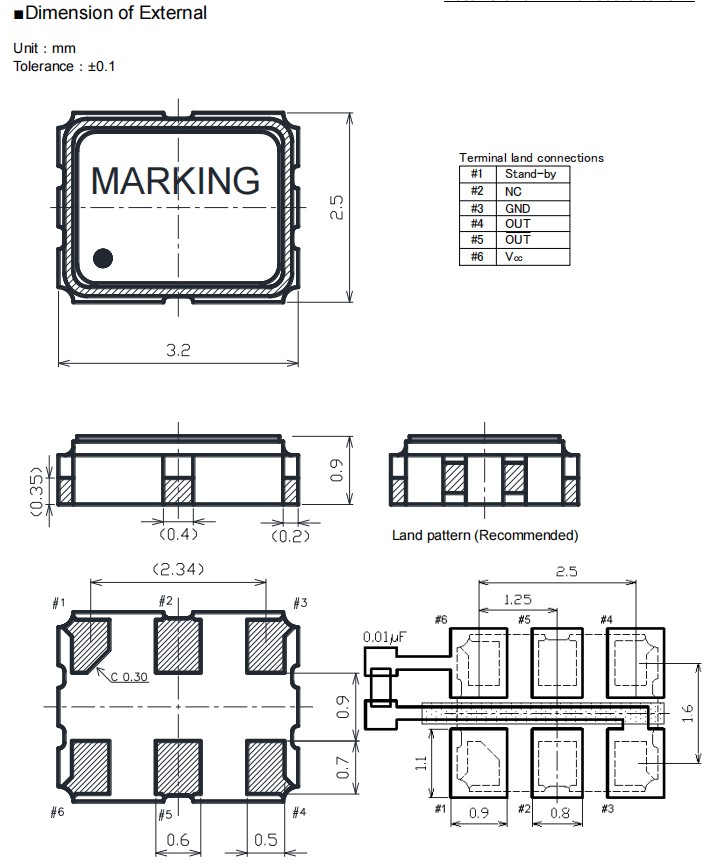

NDK差分晶振,NP3225SB-148.351648MHz-NSC5344A,汽车音响6G晶振，尺寸图
NDK差分晶振,NP3225SB-148.351648MHz-NSC5344A,汽车音响6G晶振
生活中常见的高档游戏机、智能水表、蓝牙耳机、电风扇等电子设备都需要用到各种不同类型的晶振，对比汽车的应用场景来看，汽车电子产品对晶振的需求就非常明显了。
汽车的应用场景包括导航、远程呼叫、紧急救援、防盗跟踪、道路救援、电话、资讯娱乐、下载应用，自动驾驶等等，为了实现人与汽车系统自由的交互，并提供实时的信息互动、支付、交通、天气等功能，汽车对车规级晶振的依赖只会越来越强
总的来说3225mm体积石英贴片晶振满足汽车在高温和低温条件下都能正常工作，晶振本身具有耐热、耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。
|
