6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器
prevnext

6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器

频率：148.351648MHz

尺寸：5.0x3.2mm

6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器，美国进口晶振，IDT艾迪悌晶振XLL系列，编码为：XLL52V148.351648X，频率为：148.351648MHz，小体积尺寸5.0x3.2mm，六脚贴片晶振，有源晶振，石英晶体振荡器。XLL是一个LVDS差分晶振，具有0.89ps的典型相位抖动，超过12 kHz到20 MHz的带宽。IDT XLL系列晶体振荡器的频率范围从0.750MHz到1350MHz，采用了一系列专有的asic，重点关注降噪技术。三阶德尔塔-西格玛调制器将噪声降低到与传统大块石英和SAW振荡器相当的水平。XLL有源晶体交付周期短、成本低、噪音低、频率范围宽、环境性能优异，是传统技术的绝佳选择。XLL的稳定性高达±20ppm，速度极快，提供标准频率和自定义频率。广泛应用于：通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA，SAS，光纤通信，10G以太网及各种频率控制设备上。
订购热线：0755-27838351
QQ咨询 点击这里给我发消息

6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器，美国进口晶振，IDT艾迪悌晶振XLL系列，编码为：XLL52V148.351648X，频率为：148.351648MHz，小体积尺寸5.0x3.2mm，六脚贴片晶振，有源晶振，石英晶体振荡器。XLL是一个LVDS差分晶振，具有0.89ps的典型相位抖动，超过12 kHz到20 MHz的带宽。IDT XLL系列晶体振荡器的频率范围从0.750MHz到1350MHz，采用了一系列专有的asic，重点关注降噪技术。三阶德尔塔-西格玛调制器将噪声降低到与传统大块石英和SAW振荡器相当的水平。XLL有源晶体交付周期短、成本低、噪音低、频率范围宽、环境性能优异，是传统技术的绝佳选择。XLL的稳定性高达±20ppm，速度极快，提供标准频率和自定义频率。广泛应用于：通讯设备、机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA，SAS，光纤通信，10G以太网及各种频率控制设备上。

6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器，参数表

Parameter Symbol Condition Min Typ Max Units
Output Frequency Range FOUTR
148.351648
MHz
Frequency Stability Temperature = -20°C to +70°C ±20 ±100 ppm
Temperature = -40°C to +85°C ±25 ±100 ppm
Aging(1st year) Ta = 25°C 3
Aging (10 years) Ta = 25°C 10
Output Load Differential 100 Ohms
Start-up Time TST Output valid time after VDD meets
minimum specified level 		10 ms
Output Rise Time 20% to 80% VPP 400 ps
Output Fall Time 80% to 20% VPP 400 ps
Output Clock Duty Cycle TDTCY 50%VP-P 45 55 %
Output Enable/ Disable Time TOE 100 ns
Period Jitter, RMS J PER Frequency = 156.25MHz 3.0 ps
Random Jitter RJ Frequency = 156.25MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications) 		1.3 ps
Deterministic Jitter DJ 5.8 ps
Total Jitter TJ 23.6 ps
Phase Jitter (12kHz – 20MHz) φJITTER Common Frequencies 0.89 ps
Phase Noise Performance
Frequency = 156.25MHz 		φNOISE 100Hz of Carrier -80 dBc/Hz
1kHz of Carrier -115 dBc/Hz
10kHz of Carrier -118 dBc/Hz
100kHz of Carrier -124 dBc/Hz
1MHz of Carrier -142 dBc/Hz
10MHz of Carrier -151 dBc/Hz
Output Frequency (Common) F OUT 100MHz, 106.25MHz, 1258MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz,212.5MHz, 250MHz, 300MHz, 312.5MHZ, 400MHz
(Contact IDT for additional frequencies)

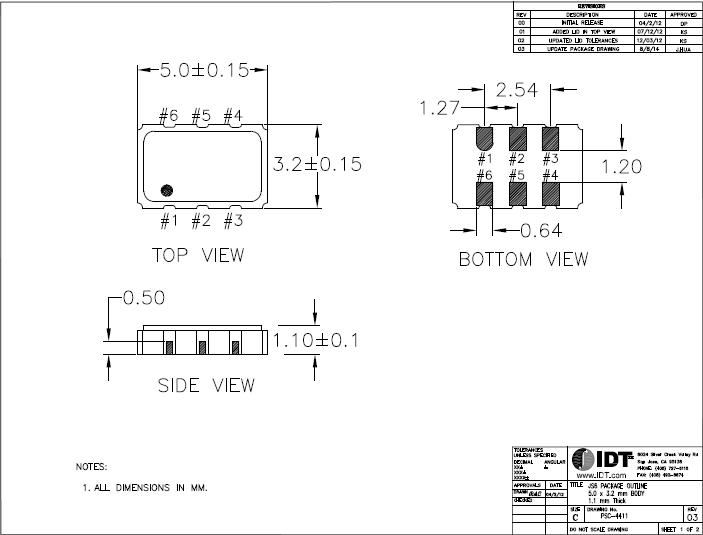

6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器，尺寸图

XLL 5032 LVDS


6G通讯设备晶振,XLL52V148.351648X,IDT低抖动振荡器

产品特点：
频率范围：0.750MHz至1350MHz
输出类型：LVDS输出 石英晶体振荡器
频率稳定性：±20ppm、±25ppm、±50ppm或±100ppm
电源电压：2.5V或3.3V
相位抖动（1.875MHz至20MHz）：典型225fs
相位抖动（12kHz至20MHz）：典型值为0.89ps
包装选项：3.2mm x 2.5mm x 1.0mm（JX6）
5.0毫米x 3.2毫米x 1.2毫米（JS6）
7.0毫米x 5.0毫米x 1.3毫米（JU6）
工作温度：-20°C至+70°C或-40°C至+85°C


XLL.5032

XLL-2

XLL-1

XLL-3

原厂代码 进口晶振 输出 电压 参数 包装/封装
XLL526125.000000I IDT晶振 LVDS 2.5V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL536125.000000I IDT晶振 LVDS 3.3V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL52V125.000000X IDT晶振 LVDS 2.5V OSC VCXO 125.000MHZ SMD 6-SMD, No Lead
XLL536150.000000I IDT晶振 LVDS 3.3V OSC XO 150.000MHZ SMD 6-SMD, No Lead
XLL536016.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 16.000MHZ SMD 6-SMD, No Lead
XLL528200.000000X IDT晶振 LVDS 2.5V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL52V148.500000X IDT晶振 LVDS 2.5V OSC VCXO 148.5MHZ SMD 6-SMD, No Lead
XLL52V148.351648X IDT晶振 LVDS 2.5V OSC VCXO 148.351648MHZ SMD 6-SMD, No Lead
XLL52V074.250000X IDT晶振 LVDS 2.5V OSC VCXO 74.25MHZ SMD 6-SMD, No Lead
XLL53V045.000000X IDT晶振 LVDS 3.3V OSC VCXO 45.000MHZ SMD 6-SMD, No Lead
XLL520085.000000X IDT晶振 LVDS 2.5V OSCILLATOR XO 85.000MHZ SMD 6-SMD, No Lead
XLL525156.250000X IDT晶振 LVDS 2.5V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL525148.500000X IDT晶振 LVDS 2.5V OSCILLATOR XO 148.5MHZ SMD 6-SMD, No Lead
XLL530074.250000X IDT晶振 LVDS 3.3V OSCILLATOR XO 74.25MHZ SMD 6-SMD, No Lead
XLL535180.000000X IDT晶振 LVDS 3.3V OSC XO 180.000MHZ SMD 6-SMD, No Lead
XLL52V074.175824X IDT晶振 LVDS 2.5V OSC VCXO 74.175824MHZ SMD 6-SMD, No Lead
XLL52V644.531250X IDT晶振 LVDS 2.5V OSC VCXO 644.53125MHZ SMD 6-SMD, No Lead
XLL52V160.000000I IDT晶振 LVDS 2.5V OSC VCXO 160.000MHZ SMD 6-SMD, No Lead
XLL52V025.000000I IDT晶振 LVDS 2.5V OSC VCXO 25.000MHZ SMD 6-SMD, No Lead
XLL525200.000000I IDT晶振 LVDS 2.5V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL525100.000000I IDT晶振 LVDS 2.5V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL528125.000000X IDT晶振 LVDS 2.5V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL530300.000000X IDT晶振 LVDS 3.3V OSC XO 300.000MHZ SMD 6-SMD, No Lead
XLL530156.250000I IDT晶振 LVDS 3.3V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL535A90.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 1.09GHZ SMD 6-SMD, No Lead
XLL535210.000000X IDT晶振 LVDS 3.3V OSC XO 210.000MHZ SMD 6-SMD, No Lead
XLL535160.000000I IDT晶振 LVDS 3.3V OSC XO 160.000MHZ SMD 6-SMD, No Lead
XLL535156.250000I IDT晶振 LVDS 3.3V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL535020.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 20.000MHZ SMD 6-SMD, No Lead
XLL536156.250000X IDT晶振 LVDS 3.3V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL536100.000000X IDT晶振 LVDS 3.3V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL536050.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 50.000MHZ SMD 6-SMD, No Lead
XLL538156.250000X IDT晶振 LVDS 3.3V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL538100.000000X IDT晶振 LVDS 3.3V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL538050.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 50.000MHZ SMD 6-SMD, No Lead
XLL538001.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 1.000MHZ SMD 6-SMD, No Lead
XLL526148.500000X IDT晶振 LVDS 2.5V OSCILLATOR XO 148.5MHZ SMD 6-SMD, No Lead
XLL526100.000000X IDT晶振 LVDS 2.5V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL526050.000000X IDT晶振 LVDS 2.5V OSCILLATOR XO 50.000MHZ SMD 6-SMD, No Lead
XLL53VC00.000000I IDT晶振 LVDS 3.3V OSCILLATOR VCXO 1.2GHZ SMD 6-SMD, No Lead
XLL526156.250000I IDT晶振 LVDS 2.5V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL526025.000000I IDT晶振 LVDS 2.5V OSCILLATOR XO 25.000MHZ SMD 6-SMD, No Lead
XLL530C80.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 1.28GHZ SMD 6-SMD, No Lead
XLL535400.000000I IDT晶振 LVDS 3.3V OSC XO 400.000MHZ SMD 6-SMD, No Lead
XLL535333.000000I IDT晶振 LVDS 3.3V OSC XO 333.000MHZ SMD 6-SMD, No Lead
XLL535250.000000I IDT晶振 LVDS 3.3V OSC XO 250.000MHZ SMD 6-SMD, No Lead
XLL536400.000000X IDT晶振 LVDS 3.3V OSC XO 400.000MHZ SMD 6-SMD, No Lead
XLL536200.000000X IDT晶振 LVDS 3.3V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL536090.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 90.000MHZ SMD 6-SMD, No Lead
XLL536050.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 50.000MHZ SMD 6-SMD, No Lead
XLL536025.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 25.000MHZ SMD 6-SMD, No Lead
XLL536010.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 10.000MHZ SMD 6-SMD, No Lead
XLL538C00.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 1.2GHZ SMD 6-SMD, No Lead
XLL538A00.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 1.000GHZ SMD 6-SMD, No Lead
XLL538312.500000X IDT晶振 LVDS 3.3V OSCILLATOR XO 312.5MHZ SMD 6-SMD, No Lead
XLL526155.520000I IDT晶振 LVDS 2.5V OSC XO 155.520MHZ SMD 6-SMD, No Lead
XLL526400.000000I IDT晶振 LVDS 2.5V OSC XO 400.000MHZ SMD 6-SMD, No Lead
XLL536A00.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 1.000GHZ SMD 6-SMD, No Lead
XLL536500.000000I IDT晶振 LVDS 3.3V OSC XO 500.000MHZ SMD 6-SMD, No Lead
XLL536400.000000I IDT晶振 LVDS 3.3V OSC XO 400.000MHZ SMD 6-SMD, No Lead
XLL536250.000000I IDT晶振 LVDS 3.3V OSC XO 250.000MHZ SMD 6-SMD, No Lead
XLL536200.000000I IDT晶振 LVDS 3.3V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL53VA00.000000X IDT晶振 LVDS 3.3V OSC VCXO 1.000GHZ SMD 6-SMD, No Lead
XLL53V877.714285X IDT晶振 LVDS 3.3V OSC VCXO 877.714285MHZ SMD 6-SMD, No Lead
XLL53V500.000000X IDT晶振 LVDS 3.3V OSC VCXO 500.000MHZ SMD 6-SMD, No Lead
XLL53VA00.000000I IDT晶振 LVDS 3.3V OSC VCXO 1.000GHZ SMD 6-SMD, No Lead
XLL53V622.080000I IDT晶振 LVDS 3.3V OSC VCXO 622.08MHZ SMD 6-SMD, No Lead
XLL53V250.000000I IDT晶振 LVDS 3.3V OSC VCXO 250.000MHZ SMD 6-SMD, No Lead
XLL525200.000000X IDT晶振 LVDS 2.5V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL525164.000000X IDT晶振 LVDS 2.5V OSC XO 164.000MHZ SMD 6-SMD, No Lead
XLL525125.000000X IDT晶振 LVDS 2.5V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL525125.000000I IDT晶振 LVDS 2.5V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL526200.000000X IDT晶振 LVDS 2.5V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL526125.000000X IDT晶振 LVDS 2.5V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL526060.000000I IDT晶振 LVDS 2.5V OSCILLATOR XO 60.000MHZ SMD 6-SMD, No Lead
XLL528212.500000X IDT晶振 LVDS 2.5V OSCILLATOR XO 212.5MHZ SMD 6-SMD, No Lead
XLL528025.000000X IDT晶振 LVDS 2.5V OSCILLATOR XO 25.000MHZ SMD 6-SMD, No Lead
XLL530148.500000X IDT晶振 LVDS 3.3V OSCILLATOR XO 148.5MHZ SMD 石英贴片晶振
XLL530025.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 25.000MHZ SMD 6-SMD, No Lead
XLL535250.000000X IDT晶振 LVDS 3.3V OSC XO 250.000MHZ SMD 6-SMD, No Lead
XLL535125.000000X IDT晶振 LVDS 3.3V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL535100.000000X IDT晶振 LVDS 3.3V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL535A00.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 1.000GHZ SMD 6-SMD, No Lead
XLL535622.080000I IDT晶振 LVDS 3.3V OSCILLATOR XO 622.08MHZ SMD 6-SMD, No Lead
XLL535312.500000I IDT晶振 LVDS 3.3V OSCILLATOR XO 312.5MHZ SMD 6-SMD, No Lead
XLL535200.000000I IDT晶振 LVDS 3.3V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL535150.000000I IDT晶振 LVDS 3.3V OSC XO 150.000MHZ SMD 6-SMD, No Lead
XLL535125.000000I IDT晶振 LVDS 3.3V OSC XO 125.000MHZ SMD 6-SMD, No Lead
XLL535106.250000I IDT晶振 LVDS 3.3V OSCILLATOR XO 106.25MHZ SMD 6-SMD, No Lead
XLL535100.000000I IDT晶振 LVDS 3.3V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL535025.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 25.000MHZ SMD 6-SMD, No Lead
XLL536250.000000X IDT晶振 LVDS 3.3V OSC XO 250.000MHZ SMD 6-SMD, No Lead
XLL536075.000000X IDT晶振 LVDS 3.3V OSCILLATOR XO 75.000MHZ SMD 6-SMD, No Lead
XLL536080.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 80.000MHZ SMD 6-SMD, No Lead
XLL536064.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 64.000MHZ SMD 6-SMD, No Lead
XLL536037.500000I IDT晶振 LVDS 3.3V OSCILLATOR XO 37.5MHZ SMD 6-SMD, No Lead
XLL538300.000000X IDT晶振 LVDS 3.3V OSC XO 300.000MHZ SMD 6-SMD, No Lead
XLL526150.000000X IDT晶振 LVDS 2.5V OSC XO 150.000MHZ SMD 6-SMD, No Lead
XLL536062.500000I IDT晶振 LVDS 3.3V OSCILLATOR XO 62.5MHZ SMD 6-SMD, No Lead
XLL536156.250000I IDT晶振 LVDS 3.3V OSCILLATOR XO 156.25MHZ SMD 6-SMD, No Lead
XLL536160.000000I IDT晶振 LVDS 3.3V OSC XO 160.000MHZ SMD 6-SMD, No Lead
XLL526100.000000I IDT晶振 LVDS 2.5V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL536100.000000I IDT晶振 LVDS 3.3V OSC XO 100.000MHZ SMD 6-SMD, No Lead
XLL536148.500000I IDT晶振 LVDS 3.3V OSCILLATOR XO 148.5MHZ SMD 6-SMD, No Lead
XLL526200.000000I IDT晶振 LVDS 2.5V OSC XO 200.000MHZ SMD 6-SMD, No Lead
XLL530012.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 12.000MHZ SMD 6-SMD, No Lead
XLL535040.000000I IDT晶振 LVDS 3.3V OSCILLATOR XO 40.000MHZ SMD 6-SMD, No Lead
