Hosonic鸿星晶振\E1SB40E000000E\智能手机6G晶振，尺寸2.0x1.6mm，频率40MHZ，台湾鸿星晶振，四脚贴片晶振，石英水晶振动子，石英贴片晶振，石英晶体谐振器，无源贴片晶振，2016mm石英晶振，石英晶振，SMD晶振，无铅环保晶振，40MHZ贴片晶振，智能手机晶振，无线模块设备专用晶振，小型设备晶振，RFID应用晶振，消费电子专用晶振，多媒体设备晶振，低损耗晶振，低功耗晶振，低老化晶振，高质量晶振，高性能晶振，具有高性能低功耗的特点。
Quartz crystal产品非常适合设计空间有限的智能手机应用，小型化无线模块设备，RFID应用，以及其他消费类产品等应用.Hosonic鸿星晶振\E1SB40E000000E\智能手机6G晶振.
Hosonic鸿星晶振\E1SB40E000000E\智能手机6G晶振 参数表
|
Item
|
Type
|
E1SB
|
|
Frequency Range
|
F0
|
40MHZ
|
19 to 24.9 MHz
|
25 to 29.9 MHz
|
30 to 62.
|
63 to 96.0 MHz
|
|
Mode of Vibration
|
|
Fundamental
|
|
Load Capacitance
|
CL
|
6 to 16pF
|
|
Frequency Tolerance
|
Δ F/ F0
|
±10ppm, ±15ppm, ±30ppm(At 25℃)
|
|
Equivalent Series Resistance
|
ESR
|
200Ω max.
|
100Ω max.
|
80Ω max.
|
60Ω max.
|
40Ω max.
|
|
Temperature Stability
|
TC
|
±10ppm, ±15ppm, ±30ppm(Refer to 25℃)
|
|
Operating Temperature Range
|
TOPR
|
-20~+70℃,-30~+85℃ Option
|
|
Storage Temperature Range
|
TSTG
|
-55~+125℃
|
|
Shunt Capacitance
|
C0
|
2pF max.
|
|
Insulator Resistance
|
IR
|
500MΩ min. (At 100VDC)
|
|
Drive Level
|
DL
|
50μW(100μW max.)
|
|
Aging
|
Fa
|
±2ppm max. (At 25℃,First year)
|
|
Packing Unit
|
|
3000pcs/reel
|

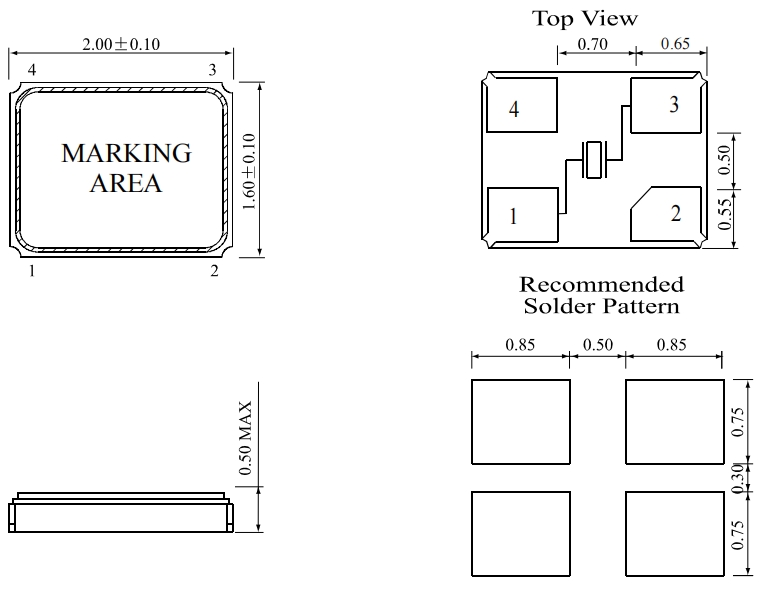

Hosonic鸿星晶振\E1SB40E000000E\智能手机6G晶振 尺寸图
Hosonic鸿星晶振\E1SB40E000000E\智能手机6G晶振
无源石英晶体产品特点：
非常小巧轻薄(2.0*1.6*0.5mm)
频率范围为16 - 96.0M
无铅。满足回流剖面使用的要求
无铅焊料
|
Mfr Part #
|
Supplier
|
Series
|
Frequency
|
Frequency Stability稳定度
|
Frequency Tolerance
|
Load Capacitance
|
|
E1SB24E00001EE
|
Hosonic鸿星晶振
|
E1S
|
24 MHz
|
±30ppm
|
±30ppm
|
18pF
|
|
E1SB26E007902E
|
Hosonic鸿星晶振
|
E1SB
|
26 MHz
|
±15ppm
|
±10ppm
|
9pF
|
|
E1SB60E003701E
|
Hosonic鸿星晶振
|
E1S
|
60 MHz
|
±20ppm
|
±10ppm
|
9pF
|
|
E1SB55E0X0002E
|
Hosonic鸿星晶振
|
E1SB
|
55.2 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
ETSB37E0X0014E
|
Hosonic鸿星晶振
|
ETSB
|
37.4 MHz
|
±10ppm
|
±10ppm
|
16pF
|
|
ETSB38E0X0005E
|
Hosonic鸿星晶振
|
ETSB
|
38.4 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
E1SB24E000007E
|
Hosonic鸿星晶振
|
E1SB
|
24 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
E1SB25E000009E
|
Hosonic鸿星晶振
|
E1S
|
25 MHz
|
±30ppm
|
±30ppm
|
6pF
|
|
E1SB24E004000E
|
Hosonic鸿星晶振
|
E1S
|
24 MHz
|
±10ppm
|
±10ppm
|
18pF
|
|
E1SB38E0X0001E
|
Hosonic鸿星晶振
|
E1S
|
38.4 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
E1SB39E000000E
|
Hosonic鸿星晶振
|
E1SB
|
39 MHz
|
±13ppm
|
±8ppm
|
10pF
|
|
E1SB40E00090AECBB8
|
Hosonic鸿星晶振
|
E1S
|
40 MHz
|
±20ppm
|
±10ppm
|
12pF
|
|
E1SB48E000506E
|
Hosonic鸿星晶振
|
E1S
|
48 MHz
|
±16ppm
|
±8ppm
|
11.1pF
|
|
E1SB25E001000E
|
Hosonic鸿星晶振
|
E1S
|
25 MHz
|
±30ppm
|
±30ppm
|
18pF
|
|
E1SB32E007900E
|
Hosonic鸿星晶振
|
E1SB
|
32 MHz
|
±15ppm
|
±10ppm
|
10pF
|
|
E1SB32E001502E
|
Hosonic鸿星晶振
|
E1SB
|
32 MHz
|
±20ppm
|
±10ppm
|
12pF
|
|
E1SB37E0X0002E
|
Hosonic鸿星晶振
|
E1S
|
37.4 MHz
|
±10ppm
|
±10ppm
|
16pF
|
|
E1SB32E001501ECBB8
|
Hosonic鸿星晶振
|
E1S
|
32 MHz
|
±10ppm
|
±10ppm
|
9pF
|
|
E1SB16E000004E
|
Hosonic鸿星晶振
|
E1SB
|
16 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
ETSB24E000003E
|
Hosonic鸿星晶振
|
ETSB
|
24 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
ETSB48E007500ECBB8
|
Hosonic鸿星晶振
|
ETSB
|
48 MHz
|
±15ppm
|
±10ppm
|
10pF
|
|
ETSB48E007502E
|
Hosonic鸿星晶振
|
ETSB
|
48 MHz
|
±15ppm
|
±10ppm
|
10pF
|
|
ETSB32E000003E
|
Hosonic鸿星晶振
|
ETSB
|
32 MHz
|
±10ppm
|
±10ppm
|
8pF
|
|
ETSB60E003700E
|
Hosonic鸿星晶振
|
ETSB
|
60 MHz
|
±20ppm
|
±10ppm
|
9pF
|
|
E3FB24E00000KE
|
Hosonic鸿星晶振
|
E3FB
|
24 MHz
|
±30ppm
|
±30ppm
|
12pF
|
|
E1SB40E001202E
|
Hosonic鸿星晶振
|
E1SB
|
40 MHz
|
±17ppm
|
±10ppm
|
8pF
|
|
ETSB27E0X0003E
|
Hosonic鸿星晶振
|
ETSB
|
27.12 MHz
|
±10ppm
|
±10ppm
|
10pF
|
|
ETSB25E004800E
|
Hosonic鸿星晶振
|
ETSB
|
25 MHz
|
±15ppm
|
±10ppm
|
8pF
|
|
E5FA8E000000DE
|
Hosonic鸿星晶振
|
E5FA
|
8MHz
|
±20ppm
|
|
20pF
|
|
E1SB24E000901E
|
Hosonic鸿星晶振
|
E1SB
|
24.000MHz
|
±10ppm
|
|
12PF
|
|
E1SB24E000009E
|
Hosonic鸿星晶振
|
E1SB
|
24.000MHz
|
±10ppm
|
|
12PF
|
|
E1SB32E000016E
|
Hosonic鸿星晶振
|
E1SB
|
32MHz
|
±10ppm
|
|
9pF
|
|
E1SB27E00000FE
|
Hosonic鸿星晶振
|
E1SB
|
27MHz
|
±10ppm
|
|
10pF
|
|
E3FB26E004203E
|
Hosonic鸿星晶振
|
E3FB
|
26MHz
|
±10ppm
|
|
7.3pF
|
|
E1SB40E000000E
|
Hosonic鸿星晶振
|
E1SB
|
40MHz
|
±10ppm
|
|
8pF
|
|
E1SB48E00001JE
|
Hosonic鸿星晶振
|
E1SB
|
48MHz
|
±10ppm
|
|
15pF
|
|
E1SB26E000006E
|
Hosonic鸿星晶振
|
E1SB
|
26MHz
|
±10ppm
|
|
16pF
|
|
E1SB24E000012E
|
Hosonic鸿星晶振
|
E1SB
|
24.000MHz
|
±10ppm
|
|
9pF
|
|
E1SB50E000000E
|
Hosonic鸿星晶振
|
E1SB
|
50MHz
|
±15ppm
|
|
7pF
|
|
E1SB24E00000EE
|
Hosonic鸿星晶振
|
E1SB
|
24MHz
|
±20ppm
|
|
20pF
|
|
E1SB26E00000PE
|
Hosonic鸿星晶振
|
E1SB
|
26MHz
|
±15ppm
|
|
12pF
|
|
E1SB40E000007E
|
Hosonic鸿星晶振
|
E1SB
|
40.000MHz
|
±10ppm
|
|
15pF
|
|
E1SB16E00000PE
|
Hosonic鸿星晶振
|
E1SB
|
16MHz
|
±10ppm
|
|
16pF
|
|
E1SB27E0X0005E
|
Hosonic鸿星晶振
|
E1SB
|
27.12MHz
|
±10ppm
|
|
10pF
|
|
E1SB26E00000SE
|
Hosonic鸿星晶振
|
E1SB
|
26MHz
|
±10ppm
|
|
9pF
|
|
E1SB24E00000XE
|
Hosonic鸿星晶振
|
E1SB
|
24MHz
|
±10ppm
|
|
16pF
|
|
E1SB37E0X0009E
|
Hosonic鸿星晶振
|
E1SB
|
37.4MHz
|
±10ppm
|
|
12pF
|
|
E1SB40E00000CE
|
Hosonic鸿星晶振
|
E1SB
|
40MHz
|
±10ppm
|
|
10pF
|
|
E1SB32E00000AE
|
Hosonic鸿星晶振
|
E1SB
|
32MHz
|
±15ppm
|
|
10pF
|
|
E1SB50E00000DE
|
Hosonic鸿星晶振
|
E1SB
|
50MHz
|
±10ppm
|
|
15pF
|
|
E1SB38E0X000EE
|
Hosonic鸿星晶振
|
E1SB
|
38.4MHz
|
±8ppm
|
|
12pF
|
|
E1SB40E00000AE
|
Hosonic鸿星晶振
|
E1SB
|
40MHz
|
±10ppm
|
|
12pF
|
|
E1SB24E000011E
|
Hosonic鸿星晶振
|
E1SB
|
24.000MHz
|
±10ppm
|
|
8pF
|
|
E1SB25E00000NE
|
Hosonic鸿星晶振
|
E1SB
|
25MHz
|
±10ppm
|
|
12pF
|
|
E1SB16E000008E
|
Hosonic鸿星晶振
|
E1SB
|
16MHz
|
±10ppm
|
|
12pF
|
|
E1SB24E00000PE
|
Hosonic鸿星晶振
|
E1SB
|
24.000MHZ
|
±30ppm
|
|
16pF
|
|
E1SB16E000005E
|
Hosonic鸿星晶振
|
E1SB
|
16MHz
|
±10ppm
|
|
10pF
|
|
E1SB32E00000WE
|
Hosonic鸿星晶振
|
E1SB
|
32MHZ
|
±10ppm
|
|
8pF
|
|
E1SB48E000008E
|
Hosonic鸿星晶振
|
E1SB
|
48MHz
|
±8ppm
|
|
10pF
|
|
E1SB48E000009E
|
Hosonic鸿星晶振
|
E1SB
|
48MHz
|
±10ppm
|
|
12pF
|
|
E49B8E000001AE
|
Hosonic鸿星晶振
|
E49B
|
8MHz
|
±20ppm
|
|
20pF
|
|
E49B13E0X000FE10C0
|
HOSONIC Crystal
|
E49B
|
13.560MHz
|
±20ppm
|
|
20PF
|
|
E1SB40E00001AE
|
Hosonic鸿星晶振
|
E1SB
|
40MHz
|
±10ppm
|
|
9pF
|
|
E5FA8.00000F20E22
|
Hosonic鸿星晶振
|
E5FA
|
8MHz
|
±20ppm
|
|
20PF
|
|
E49B4E000000VE10C0
|
Hosonic鸿星晶振
|
E49B
|
4MHz
|
±20ppm
|
|
20PF
|
|
E5FA8.00000F20E11
|
Hosonic鸿星晶振
|
E5FA
|
8MHz
|
|
|
|
|
E49B11E0X000YE10C0
|
Hosonic鸿星晶振
|
E49B
|
11.0592MHz
|
±20ppm
|
|
20pF
|
|
E49A8E00000FE10CO
|
Hosonic鸿星晶振
|
E49A
|
8MHz
|
±20ppm
|
|
20pF
|
|
E49A16E00000KE10CO
|
Hosonic鸿星晶振
|
E49A
|
16M
|
±20ppm
|
|
20pF
|
|
E49A25E000033E
|
Hosonic鸿星晶振
|
E49A
|
20pF
|
±30ppm
|
|
20pF
|
|
E49A8E000001CE
|
Hosonic鸿星晶振
|
E49A
|
|
|
|
10pF
|
|
E49B10E00000TE
|
Hosonic鸿星晶振
|
E49B
|
10MHZ
|
|
|
10pF
|
|
E49B4E00X000ZE
|
Hosonic鸿星晶振
|
E49B
|
|
|
|
10pF
|
|
E49B8E00X000CE
|
Hosonic鸿星晶振
|
E49B
|
|
|
|
10pF
|
