Geyer格耶无源晶振KX-4,12.84813,可穿戴设备6G晶振，丹麦进口晶振，Geyer格耶晶振，型号：KX-4，编码为：12.84813，频率为：27.120MHz，负载：8pF，SMD石英晶体，小体积晶振尺寸：1.6x1.2mm，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振。工作温度范围：-40℃至+85℃。具有超小型，轻薄型，耐热及耐环境特点。应用于：可穿戴设备，小型便捷式设备，智能手机，平板电脑，无线，蓝牙，游戏机设备，遥控器，数码电子等应用。

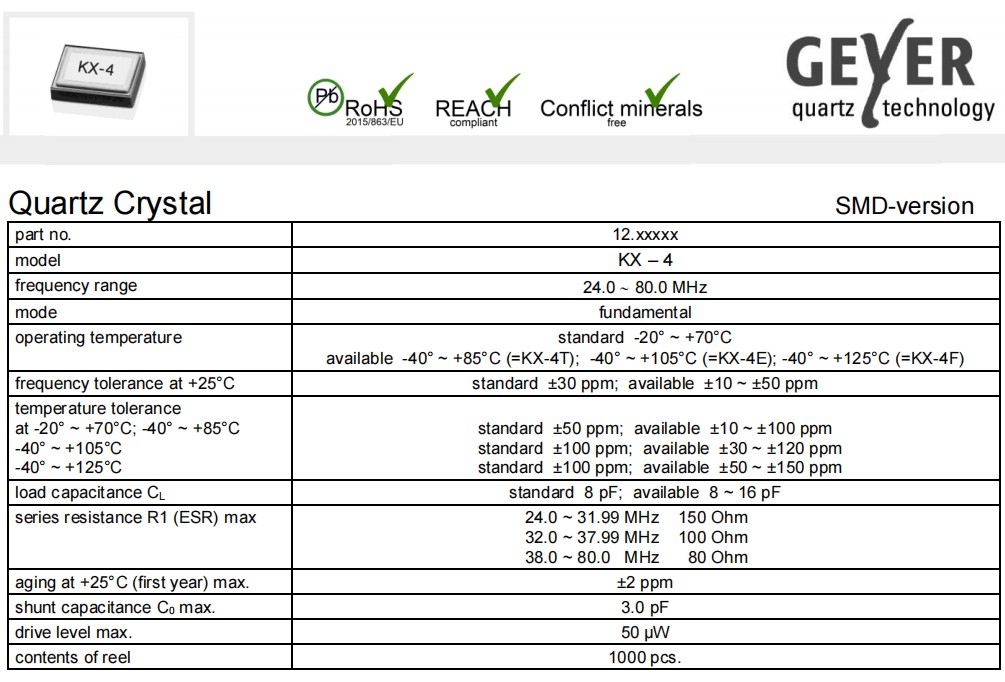

Geyer格耶无源晶振KX-4,12.84813,可穿戴设备6G晶振，参数表
|
part no.
|
12.84813
|
|
model
|
KX - 4
|
|
frequency range
|
27.120 MHz
|
|
mode
|
fundamental
|
|
operating temperature
|
standard -20° ~ +70°C
available -40° ~ +85°C (=KX-4T); -40° ~ +105°C (=KX-4E); -40° ~ +125°C (=KX-4F)
|
|
frequency tolerance at +25°C
|
standard ±30 ppm; available ±10 ~ ±50 ppm
|
temperature tolerance
at -20° ~ +70°C; -40° ~ +85°C
-40° ~ +105°C
-40° ~ +125°C
|
standard ±50 ppm; available ±10 ~ ±100 ppm
standard ±100 ppm; available ±30 ~ ±120 ppm
standard ±100 ppm; available ±50 ~ ±150 ppm
|
|
load capacitance CL
|
standard 8 pF; available 8 ~ 16 pF
|
|
series resistance R1 (ESR) max
|
24.0 ~ 31.99 MHz 150 Ohm
32.0 ~ 37.99 MHz 100 Ohm
38.0 ~ 80.0 MHz 80 Ohm
|
|
aging at +25°C (first year) max.
|
±2 ppm
|
|
shunt capacitance C0 max.
|
3.0 pF
|
|
drive level max.
|
50 µW
|
|
contents of reel
|
1000 pcs.
|

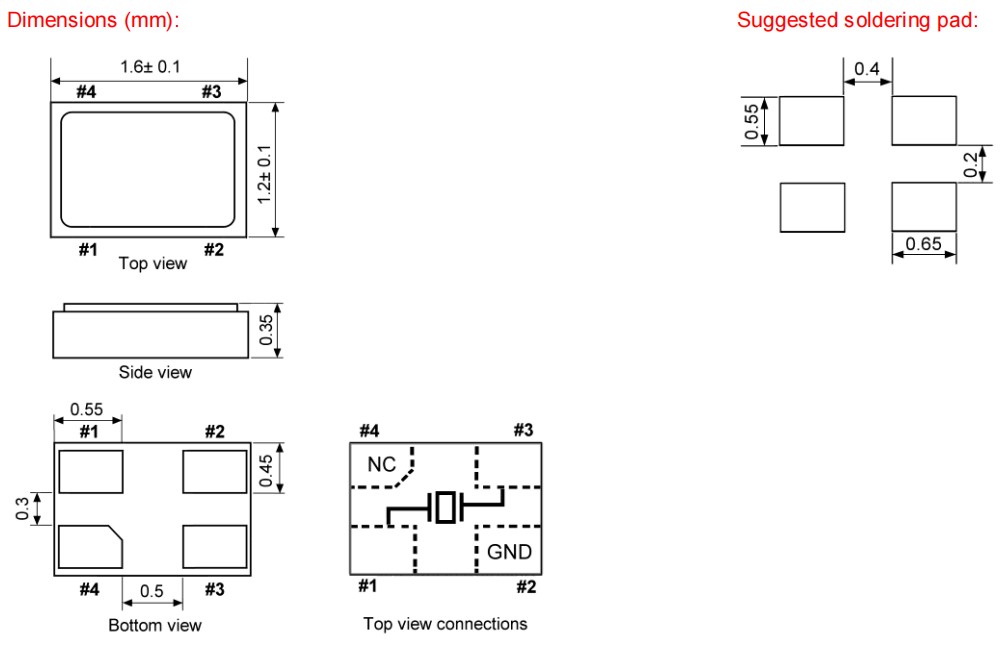

Geyer格耶无源晶振KX-4,12.84813,可穿戴设备6G晶振，尺寸图
Geyer格耶无源晶振KX-4,12.84813,可穿戴设备6G晶振
GEYER ELECTRONIC成立于1964年,总部位于慕尼黑/德国.几十年来，GEYER ELECTRONIC一直是频率产品，石英晶体，振荡器和陶瓷谐振器的领先制造商之一。另外，我们还生产品牌电池，蓄电池（可充电电池）和负载技术。最高的质量，创造力和安全性是我们创新解决方案的特点。
|
编码
|
品牌
|
石英晶体谐振器
|
型号
|
频率
|
频率稳定性
|
|
12.85536
|
Geyer晶振
|
CYSTAL 40.0MHZ 8PF SMD
|
KX-5T
|
40 MHz
|
±20ppm
|
|
12.84816
|
Geyer晶振
|
Crystal 25.0MHz 8pF SMD
|
KX-4
|
25 MHz
|
±50ppm
|
|
12.84805
|
Geyer晶振
|
Crystal 27.120MHz 8pF SMD
|
KX-4
|
27.12 MHz
|
±30ppm
|
|
12.84813
|
Geyer晶振
|
Crystal 27.120MHz 8pF SMD
|
KX-4
|
27.12 MHz
|
±15ppm
|
|
12.85515
|
Geyer晶振
|
CYSTAL 27.0MHZ 8PF SMD
|
KX-5
|
27 MHz
|
±50ppm
|
|
12.85547
|
Geyer晶振
|
CYSTAL 26.0MHZ 8PF SMD
|
KX-5T
|
26 MHz
|
±20ppm
|
|
12.85562
|
Geyer晶振
|
CYSTAL 50.0MHZ 8PF SMD
|
KX-5T
|
50 MHz
|
±50ppm
|
|
12.85521
|
Geyer晶振
|
CYSTAL 26.0MHZ 10PF SMD
|
KX-5T
|
26 MHz
|
±20ppm
|
|
12.84812
|
Geyer晶振
|
Crystal 25.0MHz 8pF SMD
|
KX-4
|
25 MHz
|
±50ppm
|
|
12.85519
|
Geyer晶振
|
CYSTAL 20.0MHZ 8PF SMD
|
KX-5T
|
20 MHz
|
±50ppm
|
|
12.85539
|
Geyer晶振
|
CYSTAL 40.0MHZ 8PF SMD
|
KX-5T
|
48 MHz
|
±20ppm
|
|
12.85517
|
Geyer晶振
|
CYSTAL 54.0MHZ 8PF SMD
|
KX-5T
|
54 MHz
|
±100ppm
|
|
12.85569
|
Geyer晶振
|
CYSTAL 27.120MHZ 8PF SMD
|
KX-5T
|
27.12 MHz
|
±15ppm
|
|
12.85538
|
Geyer晶振
|
CYSTAL 24.5760MHZ 8PF SMD
|
KX-5T
|
24.576 MHz
|
±100ppm
|
|
12.85541
|
Geyer晶振
|
CYSTAL 30.0MHZ 8PF SMD
|
KX-5
|
30 MHz
|
±30ppm
|
|
12.84818
|
Geyer晶振
|
Crystal 24.0MHz 8pF SMD
|
KX-4
|
24 MHz
|
±50ppm
|
|
12.85534
|
Geyer晶振
|
CYSTAL 27.0MHZ 8PF SMD
|
KX-5T
|
27 MHz
|
±50ppm
|
|
12.84803
|
Geyer晶振
|
Crystal 26.0MHz 8pF SMD
|
KX-4
|
26 MHz
|
±20ppm
|
|
12.85518
|
Geyer晶振
|
CYSTAL 20.0MHZ 8PF SMD
|
KX-5E
|
20 MHz
|
±50ppm
|
|
12.8481
|
Geyer晶振
|
Crystal 48.0MHz 8pF SMD
|
KX-4
|
48 MHz
|
±50ppm
|
|
12.84814
|
Geyer晶振
|
Crystal 32.0MHz 8pF SMD
|
KX-4
|
32 MHz
|
±15ppm
|
|
12.8556
|
Geyer晶振
|
CYSTAL 16.0MHZ 8PF SMD
|
KX-5T
|
16 MHz
|
±30ppm
|
|
12.87163
|
Geyer晶振
|
CRYSTAL 32.768KHZ 7PF SMD
|
KX-327RT
|
32.768 kHz
|
-0.036ppm
|
|
12.8716
|
Geyer晶振
|
CYSTAL 32.7680KHZ 12.5PF SMD
|
KX-327RT
|
32.768 kHz
|
±20ppm
|
|
12.84801
|
Geyer晶振
|
Crystal 26.0MHz 8pF SMD
|
KX-4
|
26 MHz
|
±50ppm
|
|
12.87174
|
Geyer晶振
|
CRYSTAL 32.768KHz 7pF SMD
|
KX-327FT
|
32.768 kHz
|
-0.036ppm
|
|
12.85559
|
Geyer晶振
|
CYSTAL 40.0MHZ 8PF SMD
|
KX-5
|
40 MHz
|
±50ppm
|
