Cardinal蓝牙晶振,CX252Z-A2B3C3-70-26.0D10,2520mm,26MHz,CX252，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CX252系列晶振，编码为：CX252Z-A2B3C3-70-26.0D10，频率为：26.000MHz，小体积晶振尺寸：2.5x2.0x0.55mm封装，小型薄型表面贴装水晶，四脚贴片晶振，石英贴片晶振，SMD晶振，无源晶振，石英晶体谐振器，包装是自动表面安装的理想选择，组装和回流实践，磁带和卷轴包装，T切割水晶。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境特点。2520晶振，被广泛应用于：通讯设备，无线网络，蓝牙模块，可穿戴设备晶振，小型便捷式设备，平板电脑，汽车电子，无线局域网，物联网，数码电子等应用。

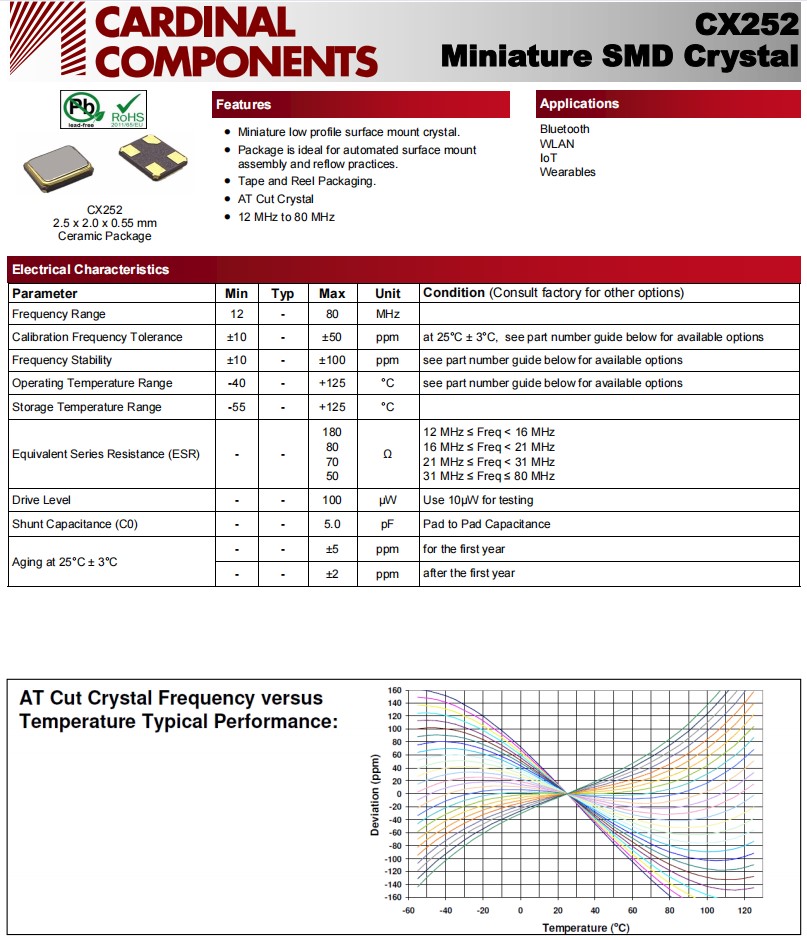

Cardinal蓝牙晶振,CX252Z-A2B3C3-70-26.0D10,2520mm,26MHz,CX252,参数表
|
Parameter
|
Min
|
Typ
|
Max
|
Unit
|
Condition (Consult factory for other options)
|
|
Frequency Range
|
|
26
|
|
MHz
|
|
|
Calibration Frequency Tolerance
|
±10
|
-
|
±50
|
ppm
|
at 25°C ± 3°C, see part number guide below for available options
|
|
Frequency Stability
|
±10
|
-
|
±100
|
ppm
|
see part number guide below for available options
|
|
Operating Temperature Range
|
-40
|
-
|
+125
|
°C
|
see part number guide below for available options
|
|
Storage Temperature Range
|
-55
|
-
|
+125
|
°C
|
|
|
Equivalent Series Resistance (ESR)
|
-
|
-
|
180
80
70
50
|
Ω
|
12 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 21 MHz
21 MHz ≤ Freq < 31 MHz
31 MHz ≤ Freq ≤ 80 MHz
|
|
Drive Level
|
-
|
-
|
100
|
µW
|
Use 10µW for testing
|
|
Shunt Capacitance (C0)
|
-
|
-
|
5.0
|
pF
|
Pad to Pad Capacitance
|
|
Aging at 25°C ± 3°C
|
-
|
-
|
±5
|
ppm
|
for the first year
|
|
-
|
-
|
±2
|
ppm
|
after the first year
|
Cardinal蓝牙晶振,CX252Z-A2B3C3-70-26.0D10,2520mm,26MHz,CX252,尺寸图
Cardinal蓝牙晶振,CX252Z-A2B3C3-70-26.0D10,2520mm,26MHz,CX252
产品特点：
外形尺寸：2.5x2.0x0.55mm
频率范围：12MHz~80MHz
小型薄型表面贴装水晶。
包装是自动表面安装的理想选择
组装和回流实践。
磁带和卷轴包装。
AT切割水晶
应用于：蓝牙晶振，无线局域网，物联网，可穿戴设备
|
原厂编码
|
卡迪纳尔晶振
|
型号
|
系列
|
频率
|
频率稳定度
|
|
CTF6-A2C5-32.768KD12.5
|
Cardinal晶振
|
CTF6
|
kHz Crystal (Tuning Fork)
|
32.768kHz
|
-
|
|
CX5Z-A5B2C5-70-7.37280D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
7.3728MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-12.288D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12.288MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-16.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
16MHz
|
±30ppm
|
|
CX5Z-ARB2C5-70-7.3728D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
7.3728MHz
|
±50ppm
|
|
CX325Z-A5B2C5-50-20.0D18
|
Cardinal晶振
|
CX325
|
MHz Crystal
|
20MHz
|
±50ppm
|
|
CX635A-A5B2C3-40-18.432D13
|
Cardinal晶振
|
CX635A
|
MHz Crystal
|
18.432MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-12.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12MHz
|
±30ppm
|
|
CX5Z-A5B2C5-40-27.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
27MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-24.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-24.576D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24.576MHz
|
±50ppm
|
|
CX5Z-A5B2C5-70-8.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
8MHz
|
±50ppm
|
|
CX5Z-A1B2C5-40-24.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
24MHz
|
±50ppm
|
|
CX5Z-A5B2C5-50-16.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
16MHz
|
±50ppm
|
|
CX5Z-A0B2C5-50-16.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
16MHz
|
±50ppm
|
|
CX5Z-A2B2C5-40-10.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
10MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-1966080D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
19.6608MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-33.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
33MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-27.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
27MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-20.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
20MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-14.7456D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
14.7456MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-12.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
12MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-50.0D18
|
石英晶振
|
CX532
|
MHz Crystal
|
50MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-30.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
30MHz
|
±30ppm
|
|
CX532Z-A5B3C5-70-27.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
27MHz
|
±30ppm
|
|
CX532AZ-A5B2C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A5B3C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-20.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
20MHz
|
±30ppm
|
|
CX5Z-A2B2C5-70-8.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
8MHz
|
±50ppm
|
|
CX5Z-A2B2C5-40-25D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX532Z-A2B3C5-70-8.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
8MHz
|
±30ppm
|
|
CX5Z-A2B2C5-40-12.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
12MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-12.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
12MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-10.0D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
10MHz
|
±50ppm
|
|
CX5Z-A5B2C5-40-25D18
|
Cardinal晶振
|
CX5
|
MHz Crystal
|
25MHz
|
±50ppm
|
|
CX635BZ-A1B2C3-80-14.31818D20
|
Cardinal晶振
|
CX635B
|
MHz Crystal
|
14.31818MHz
|
±50ppm
|
|
CX532Z-A5B3C5-70-18.432D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
18.432MHz
|
±30ppm
|
|
CX532Z-A2B3C5-70-25.0D18
|
Cardinal晶振
|
CX532
|
MHz Crystal
|
25MHz
|
±30ppm
|
