ABM8G-14.7456MHZ-18-D2Y-T,14.7456MHz,3225mm,SMD-4P,±20ppm，美国进口晶振，Abracon艾博康晶振型号：ABM8G，编码为ABM8G-14.7456MHZ-18-D2Y-T，频率：14.7456MHz，是一款小体积晶振尺寸3.2x2.5x1.0mm四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅环保晶振，贴片晶振，低高度；适用于薄型设备玻璃密封封装确保高可靠性和高温操作，紧密的公差和稳定性，可用的红外回流能力，低成本版本的ABM8晶体，高密度的应用程序：调制解调器，通信和测试设备，PMCIA，无线应用程序。
ABM8G-14.7456MHZ-18-D2Y-T,14.7456MHz,3225mm,SMD-4P,±20ppm
|
ABM8G
|
Minimum
|
Typical
|
Maximum
|
Units
|
Notes
|
|
Frequency Range
|
12
|
|
50
|
MHz
|
|
|
Operation Mode
|
Fundamental
|
|
|
|
Operating Temperature
|
-10
|
|
60
|
ºC
|
See options
|
|
Storage Temperature
|
-40
|
|
85
|
ºC
|
|
|
Frequency Tolerance @+25°C
|
-50
|
|
50
|
ppm
|
See options
|
Frequency Stability
over the Operating
|
-50
|
|
50
|
|
See options
|
|
Temperature
|
ppm
|
|
( ref. to +25°C)
|
|
|
|
|
|
120
|
Ω
|
12.000MHz
|
|
Equivalent series resistance
|
|
|
80
|
Ω
|
12.001MHz ~ 20.000MHz
|
|
|
|
|
60
|
Ω
|
20.001MHz ~ 28.000MHz
|
|
|
|
|
50
|
Ω
|
28.001MHz ~ 50.000MHz
|
|
Shunt capacitance (C0)
|
|
|
5
|
pF
|
|
|
Load capacitance (CL)
|
10
|
pF
|
See options
|
|
Drive Level
|
|
10
|
100
|
µW
|
|
|
Aging@25°C±3°C
|
|
|
±3
|
ppm
|
First year
|
|
Insulation Resistance
|
500
|
|
|
M Ω
|
@ 100Vdc ± 15V
|

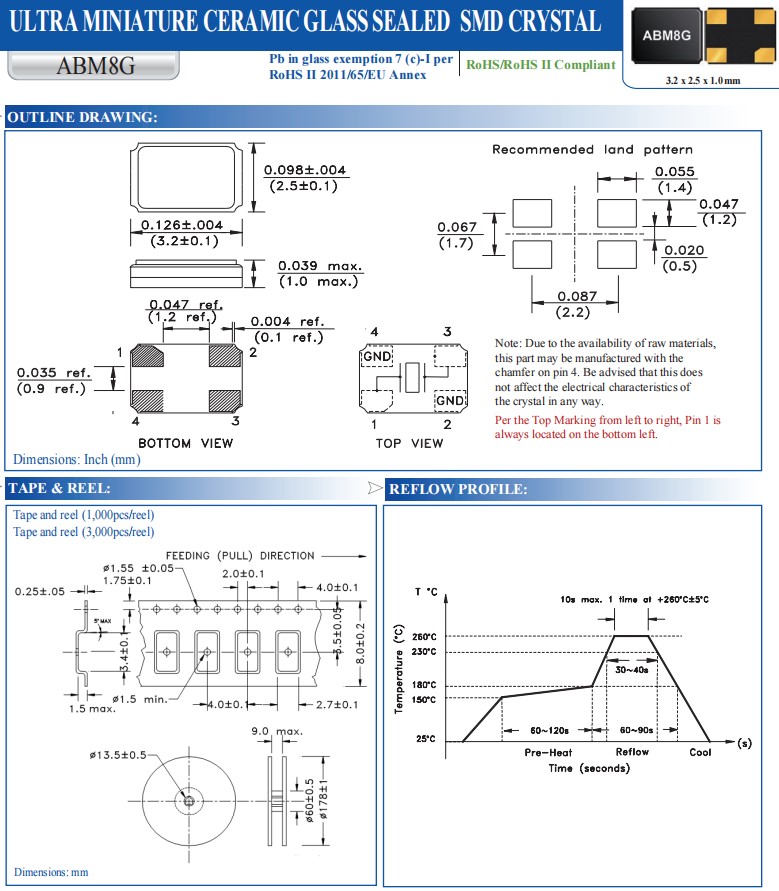

ABM8G-14.7456MHZ-18-D2Y-T,14.7456MHz,3225mm,SMD-4P,±20ppm，尺寸图
|
