AXLE5032-V-5-C-05-4F-36.000MHz,5032mm,AXTAL晶振，德国进口晶振，AXTAL晶振，型号：AXLE5032，编码为：AXLE5032-V-5-C-05-4F-36.000MHz，高稳定性SMD晶振，VCTCXO石英晶体振荡器，电源电压：5.0V，频率稳定性：±0.5ppm，工作温度范围：-40℃至+85℃，频率为：36.000MHz，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，有源晶振，压控温补晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电压等特点。石英晶振，被广泛应用于：移动通讯设备晶振，无线蓝牙晶振，物联网晶振，航空电子晶振，汽车电子晶振，导航仪等应用。

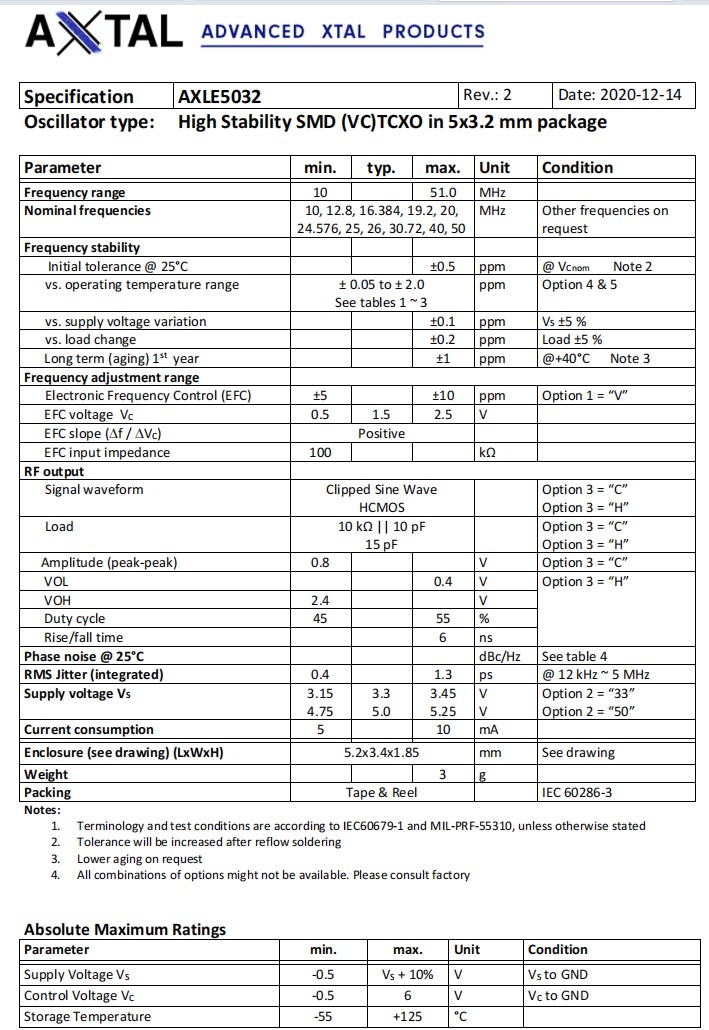

AXLE5032-V-5-C-05-4F-36.000MHz,5032mm,AXTAL晶振,参数表
|
Parameter
|
min.
|
typ.
|
max.
|
Unit
|
Condition
|
|
Frequency range
|
36
|
|
|
MHz
|
|
|
Nominal frequencies
|
10, 12.8, 16.384, 19.2, 20,
24.576, 25, 26, 30.72, 40, 50
|
MHz
|
Other frequencies on
request
|
|
Frequency stability
|
|
|
|
|
|
|
Initial tolerance @ 25°C
|
|
|
±0.5
|
ppm
|
@ VCnom Note 2
|
|
vs. operating temperature range
|
± 0.05 to ± 2.0
See tables 1 ~ 3
|
ppm
|
Option 4 & 5
|
|
vs. supply voltage variation
|
|
|
±0.1
|
ppm
|
VS ±5 %
|
|
vs. load change
|
|
|
±0.2
|
ppm
|
Load ±5 %
|
|
Long term (aging) 1st year
|
|
|
±1
|
ppm
|
@+40°C Note 3
|
|
Frequency adjustment range
|
|
|
Electronic Frequency Control (EFC)
|
±5
|
|
±10
|
ppm
|
Option 1 = “V”
|
|
EFC voltage VC
|
0.5
|
1.5
|
2.5
|
V
|
|
|
EFC slope (Δf / ΔVC)
|
Positive
|
|
|
|
EFC input impedance
|
100
|
|
|
ka
|
|
|
RF output
|
|
|
Signal waveform
|
Clipped Sine Wave
HCMOS
|
|
Option 3 = “C”
Option 3 = “H”
|
|
Load
|
10 ka || 10 pF
15 pF
|
|
Option 3 = “C”
Option 3 = “H”
|
|
Amplitude (peak-peak)
|
0.8
|
|
|
V
|
Option 3 = “C”
|
|
VOL
|
|
|
0.4
|
V
|
Option 3 = “H”
|
|
VOH
|
2.4
|
|
|
V
|
|
Duty cycle
|
45
|
|
55
|
%
|
|
Rise/fall time
|
|
|
6
|
ns
|
|
Phase noise @ 25°C
|
|
|
|
dBc/Hz
|
See table 4
|
|
RMS Jitter (integrated)
|
0.4
|
|
1.3
|
ps
|
@ 12 kHz ~ 5 MHz
|
|
Supply voltage VS
|
3.15
4.75
|
3.3
5.0
|
3.45
5.25
|
V
V
|
Option 2 = “33”
Option 2 = “50”
|
|
Current consumption
|
5
|
|
10
|
mA
|
|
|
Enclosure (see drawing) (LxWxH)
|
5.2x3.4x1.85
|
mm
|
See drawing
|
|
Weight
|
|
|
3
|
g
|
|
|
Packing
|
Tape & Reel
|
|
IEC 60286-3
|
AXLE5032-V-5-C-05-4F-36.000MHz,5032mm,AXTAL晶振,尺寸图
