ESB11.0592F16M33,HOSONIC鸿星晶振,49SMD晶振

当前位置：首页 » 台产晶振 » ESB11.0592F16M33,HOSONIC鸿星晶振,49SMD晶振

prevnext

ESB11.0592F16M33,HOSONIC鸿星晶振,49SMD晶振

频率：11.0592M

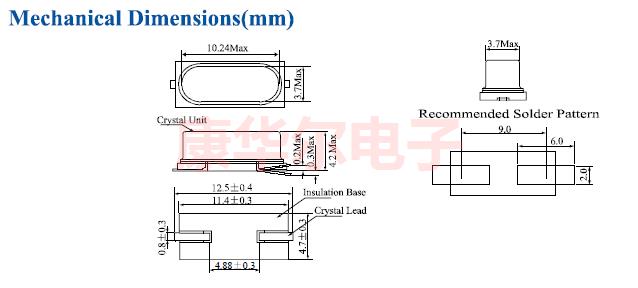

尺寸：12.5*4.7*4.2mm

ESB11.0592F16M33,HOSONIC鸿星晶振,49SMD晶振,11.0592MHz,是消费电子与工业嵌入式领域高性价比时钟源.产品从传统HC-49S插件改良为贴片形式,兼顾性能与组装便利性,频率偏差控制优秀,ESR参数表现良好,保障单片机系统可靠起振,减少硬件故障风险.适配各类串口通信电路板,应用于网关设备,继电器控制板,USB外设,教育开发板等场景.康华尔电子作为HOSONIC品牌代理,原厂渠道供货,可提供技术选型协助,欢迎来电咨询0755?27838351.

订购热线：0755-27838351

ESB11.0592F16M33,HOSONIC鸿星晶振,49SMD晶振

ESB11.0592F16M33是HOSONIC鸿星49SMD封装无源石英晶振,11.0592MHz经典频点,非常适配单片机串口通信,可规避波特率通讯误差,保障数据传输稳定可靠.产品采用金属密封贴片结构,适配SMT自动化贴装工艺,满足无铅回流焊生产要求,具备优秀频率稳定性与较低等效串联电阻,抗环境干扰能力强,符合RoHS环保标准.广泛应用于工控主板,安防设备,智能家居控制器,无线模块等产品.康华尔电子作为HOSONIC晶振品牌代理,现货库存充足,支持批量与样品采购,欢迎来电咨询0755?27838351.

ESB11.0592F16M33,HOSONIC鸿星晶振,49SMD晶振

品牌 Hosonic鸿星无源晶振

编码 ESB11.0592F16M33

型号 -

频率 11.0592M

精度 30PP

负载 16PF

尺寸 49SMD

工作温度 -20+70℃

ESB11.0592F16M33,HOSONIC鸿星晶振,,49SMD晶振

更多相关晶振参考

编码品牌型号尺寸频率负载

12.87000 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 12.5pF

12.87001 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 9pF

12.87002 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 7pF

12.87034 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 4pF

12.87080 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87081 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF

12.87083 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF

12.87086 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF

12.87090 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF

12.87095 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF

12.87105 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF

12.87107 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87109 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12pF

12.87110 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87111 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87112 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87113 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87114 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87115 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87116 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF

12.87118 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF

12.87119 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF

12.87120 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF

12.87121 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF

12.87123 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF

12.87126 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF

12.87127 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF

12.87128 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF

12.87129 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF

12.87130 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF

12.87131 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF

12.87132 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF

12.87133 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF

12.87134 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF

12.87135 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF

12.87136 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF

12.87137 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 9pF

12.87138 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF

12.87139 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF

12.87143 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF

12.87144 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF

12.87145 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768KHz 12.5pF

12.87146 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF

12.87147 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF

12.87148 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF

12.87149 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF

12.87150 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87151 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF

12.87152 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87153 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF

12.87155 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87157 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87158 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87159 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87160 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF

12.87161 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF

12.87163 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 7pF

12.87164 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF

12.87165 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF

12.87166 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF

12.87167 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF

12.87168 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF

12.87169 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF

12.87170 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF

12.87171 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF

12.87172 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 9pF

12.87173 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 9pF

12.87174 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF

12.87175 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF

12.87176 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF

12.87177 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF

12.87178 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 4pF

12.87180 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 9pF

12.87181 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87182 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 7pF

12.87183 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF

12.87186 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF

12.87187 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 6pF

12.87188 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
