A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振

频率：16.000MHZ

尺寸：3225mm

A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振,3225封装无源晶体,现货常备原厂全新原装料卷.核心耐高温陶瓷壳体设计,耐受工业,车载高温使用环境,工作温区-40至125℃,兼容高温回流焊,焊接后性能无损耗,大幅降低设备高温故障概率.TXC品牌品控严苛,每批次元件经过温循,振动,湿热可靠性测试,频率稳定度覆盖多档精度,适配各类MCU主控电路时钟.广泛适配工业自动化,车联网,户外智能硬件,新能源控制设备,

订购热线：0755-27838351

A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振

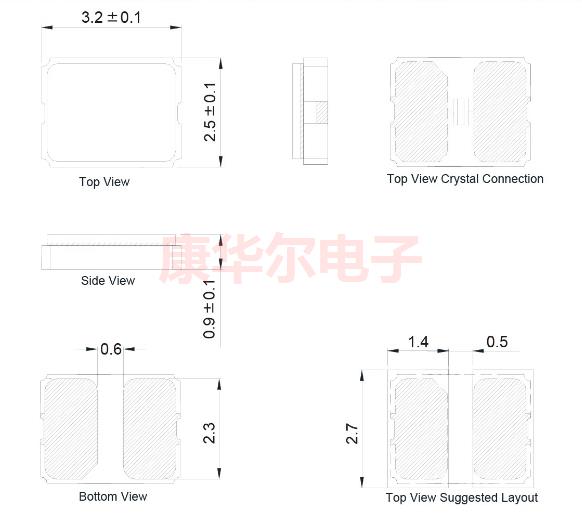

A316000006是台湾TXC晶技原厂A3系列耐高温陶瓷贴片晶振,标准3.2*2.5mm晶体两引脚无源封装,搭载高强度黑色陶瓷密闭壳体,热稳定性能远超普通塑封晶振.产品采用原厂AT切割石英晶片,工作温域覆盖-40℃至125℃极限区间,完美适配高温回流焊工艺,无惧车间高温焊接冲击.频率稳定度可选±15~±50ppm,等效串联电阻低,振荡损耗小,抗温漂,抗湿热老化.台企标准化产线生产,符合RoHS无铅环保规范,广泛用于工业控制器,高温传感设备,户外物联网网关,原厂货源稳定,批量供货适配各类严苛高温工况电路时钟方案.

A316000006,耐高温陶瓷晶振,台湾TXC晶技晶振

品牌	TXC
编码	A316000006
型号	A3
频率	16M
精度	±20ppm
负载	8PF
尺寸	3225mm
工作温度	−40℃ ～ +125℃
