Skyworks差分输出硅振荡器,500DCAB120M000ACF,低抖动6G晶振

频率：120MHz

尺寸：5.0x3.2mm

Skyworks差分输出硅振荡器,500DCAB120M000ACF,低抖动6G晶振，进口晶振，Skyworks思佳讯晶振，型号：Si500D，编码为：500DCAB120M000ACF，频率为：120MHz，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，LVDS差分输出硅振荡器，石英晶体振荡器，石英晶振，有源晶振，电压3.3V。具有超小型，轻薄型，无石英、无MEMS和无PLL的全硅振荡器，优异的温度稳定性（±20 ppm），高度可靠的启动和运行，高度抗冲击和振动，低抖动：＜1.5 ps rms，0至85°C操作包括10年老化，高温环境。进口晶振 被广泛用于：通讯设备，无线网络，蓝牙模块，物联网，GPS定位，汽车电子，医疗设备，数码电子等应用。

订购热线：0755-27838351

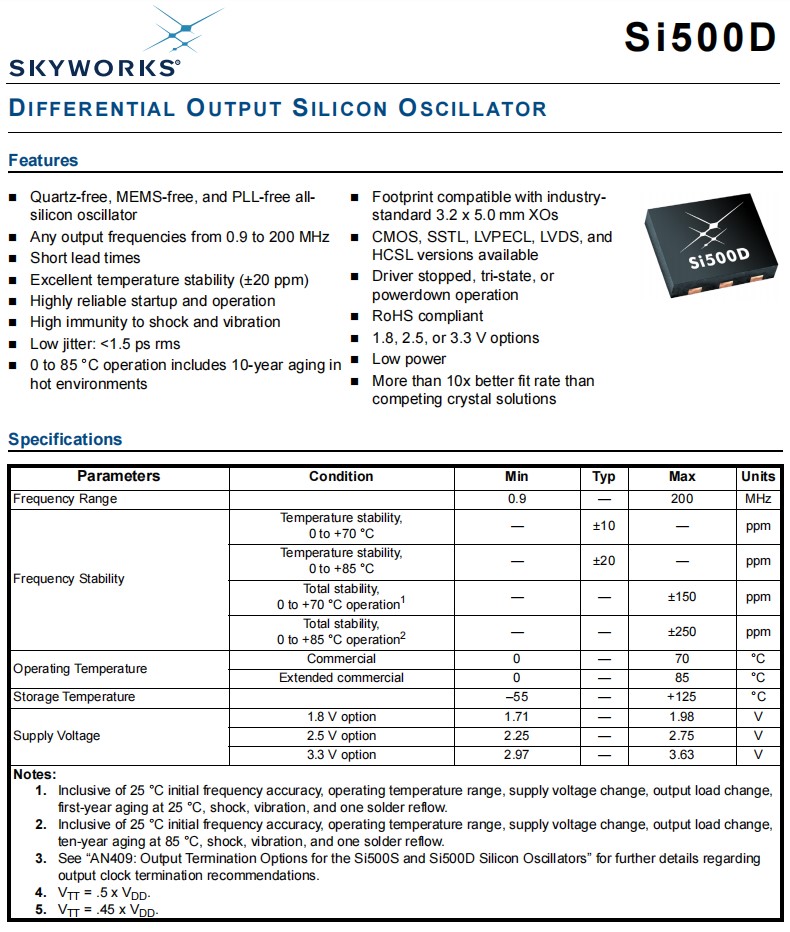

Skyworks差分输出硅振荡器,500DCAB120M000ACF,低抖动6G晶振，参数表

Parameters	Condition	Min	Typ	Max	Units
Frequency Range			120		MHz
Frequency Stability	Temperature stability, 0 to +70 °C	—	±10	—	ppm
	Temperature stability, 0 to +85 °C	—	±20	—	ppm
	Total stability, 0 to +70 °C operation1	—	—	±150	ppm
	Total stability, 0 to +85 °C operation2	—	—	±250	ppm
Operating Temperature	Commercial	0	—	70	°C
Operating Temperature	Extended commercial	0	—	85	°C
Storage Temperature		–55	—	+125	°C
Supply Voltage	1.8 V option	1.71		1.98	V
	2.5 V option	2.25	—	2.75	V
	3.3 V option	2.97	—	3.63	V

Skyworks差分输出硅振荡器,500DCAB120M000ACF,低抖动6G晶振，尺寸图

Skyworks差分输出硅振荡器,500DCAB120M000ACF,低抖动6G晶振

产品特点：

无石英、无MEMS和无PLL的全硅振荡器
0.9至200 MHz的任何输出频率
交付周期短
优异的温度稳定性（±20 ppm）
高度可靠的启动和运行
高度抗冲击和振动
低抖动：＜1.5 ps rms
0至85°C的操作包括在高温环境中老化10年
占地面积与行业标准3.2 x 5.0 mm XO兼容石英贴片晶振
提供CMOS、SSTL、LVPECL、LVDS和HCSL版本
驱动器停止、三态或断电操作
符合RoHS
1.8、2.5或3.3 V选项
低功率
匹配率是竞争水晶解决方案的10倍以上
Si500D支持多种选项，包括频率、输出格式、电源电压和三态/断电。特定的设备配置在装运时被编程到Si500D中。使用下图指定了配置。Skyworks解决方案提供了一个基于web的零件号实用程序，可用于简化零件号配置

编码	晶振厂家	系列	频率	输出	电压
500DLAA200M000ACF	Skyworks晶振	Si500D	200 MHz	LVDS	2.5V
500DTBE200M000ACH	Skyworks晶振	Si500D	200 MHz	HCSL	1.8V
500DCAE25M0000ACFR	Skyworks晶振	Si500D	25 MHz	LVDS	3.3V
500DCAA40M0790ACF	Skyworks晶振	Si500D	40.079 MHz	LVDS	3.3V
500DCAE25M0000ACF	Skyworks晶振	Si500D	25 MHz	LVDS	3.3V
500DCAB120M000ACF	Skyworks晶振	Si500D	120 MHz	LVDS	3.3V
500DEAA11M2896ACF	Skyworks晶振	Si500D	11.2896 MHz	CMOS	3.3V
500DEAA18M4320ACFR	Skyworks晶振	Si500D	18.432 MHz	CMOS	3.3V
500DEAA11M2896ACFR	Skyworks晶振	Si500D	11.2896 MHz	CMOS	3.3V
500DCAA40M0790ACFR	Skyworks晶振	Si500D	40.079 MHz	LVDS	3.3V
500DCAE40M0790ACF	Skyworks晶振	Si500D	40.079 MHz	LVDS	3.3V
500DCAB120M000ACFR	Skyworks晶振	Si500D	120 MHz	LVDS	3.3V
500DABB156M250ACHR	Skyworks晶振	Si500D	156.25 MHz	LVPECL	3.3V
500DCAB70M0000ACFR	Skyworks晶振	Si500D	70 MHz	LVDS	3.3V
500DEAA18M4320ACF	Skyworks晶振	Si500D	18.432 MHz	CMOS	3.3V
500DCAE40M0790ACFR	Skyworks晶振	Si500D	40.079 MHz	LVDS	3.3V
500DCAB70M0000ACF	Skyworks晶振	Si500D	70 MHz	LVDS	3.3V
500DABB156M250ACH	Skyworks晶振	Si500D	156.25 MHz	LVPECL	3.3V
500DTBE200M000ACHR	Skyworks晶振	Si500D	200 MHz	HCSL	1.8V
500DMAD135M000ACFR	Skyworks晶振	Si500D	135 MHz	HCSL	2.5V
500DLAA61M4400ACF	Skyworks晶振	Si500D	61.44 MHz	LVDS	2.5V
500DLAA61M4400ACFR	Skyworks晶振	Si500D	61.44 MHz	LVDS	2.5V
500DMAD135M000ACF	Skyworks晶振	Si500D	135 MHz	HCSL	2.5V
500DSBB25M0000ACH	Skyworks晶振	Si500D	25 MHz	LVDS	1.8V
500DABA62M5000ACH	Skyworks晶振	Si500D	62.5 MHz	LVPECL	3.3V
500DABE10M0000ACH	Skyworks晶振	Si500D	10 MHz	LVPECL	3.3V
500DBBA62M5000ACH	Skyworks晶振	Si500D	62.5 MHz	LVPECL	3.3V
500DCBE135M000ACH	差分晶振	Si500D	135 MHz	LVDS	3.3V
500DEAA72M0000ACF	Skyworks晶振	Si500D	72 MHz	CMOS	3.3V
500DLBB65M0000ACH	Skyworks晶振	Si500D	65 MHz	LVDS	2.5V
500DLBC200M000ACH	Skyworks晶振	Si500D	200 MHz	LVDS	2.5V
500DSAA132M000ACF	Skyworks晶振	Si500D	132 MHz	LVDS	1.8V
500DSAA135M000ACF	Skyworks晶振	Si500D	135 MHz	LVDS	1.8V
500DSAA148M500ACF	Skyworks晶振	Si500D	148.5 MHz	LVDS	1.8V
500DSAA24M0000ACF	Skyworks晶振	Si500D	24 MHz	LVDS	1.8V
500DSAB100M000ACF	Skyworks晶振	Si500D	100 MHz	LVDS	1.8V
500DSBB10M0000ACH	Skyworks晶振	Si500D	10 MHz	LVDS	1.8V
500DSBB135M000ACH	Skyworks晶振	Si500D	135 MHz	LVDS	1.8V
500DVAB4M00000ACF	Skyworks晶振	Si500D	4 MHz	CMOS	1.8V
500DABA62M5000ACHR	Skyworks晶振	Si500D	62.5 MHz	LVPECL	3.3V
500DABE10M0000ACHR	Skyworks晶振	Si500D	10 MHz	LVPECL	3.3V
500DBBA62M5000ACHR	Skyworks晶振	Si500D	62.5 MHz	LVPECL	3.3V
500DCBE135M000ACHR	Skyworks晶振	Si500D	135 MHz	LVDS	3.3V
500DEAA72M0000ACFR	Skyworks晶振	Si500D	72 MHz	CMOS	3.3V
500DLBB65M0000ACHR	Skyworks晶振	Si500D	65 MHz	LVDS	2.5V
500DLBC200M000ACHR	Skyworks晶振	Si500D	200 MHz	LVDS	2.5V
500DSAA132M000ACFR	Skyworks晶振	Si500D	132 MHz	LVDS	1.8V
500DSAA135M000ACFR	Skyworks晶振	Si500D	135 MHz	LVDS	1.8V
500DSAA148M500ACFR	Skyworks晶振	Si500D	148.5 MHz	LVDS	1.8V
500DSAA24M0000ACFR	Skyworks晶振	Si500D	24 MHz	LVDS	1.8V
500DSAB100M000ACFR	Skyworks晶振	Si500D	100 MHz	LVDS	1.8V
500DSBB10M0000ACHR	Skyworks晶振	Si500D	10 MHz	LVDS	1.8V
500DSBB135M000ACHR	Skyworks晶振	Si500D	135 MHz	LVDS	1.8V
500DVAB4M00000ACFR	Skyworks晶振	Si500D	4 MHz	CMOS	1.8V
500DCBA156M250ACHR	Skyworks晶振	Si500D	156.25 MHz	LVDS	3.3V
500DCBA20M0000ACH	Skyworks晶振	Si500D	20 MHz	LVDS	3.3V
500DCBA20M0000ACHR	Skyworks晶振	Si500D	20 MHz	LVDS	3.3V
500DCBA75M0000ACH	Skyworks晶振	Si500D	75 MHz	LVDS	3.3V
500DCBA75M0000ACHR	Skyworks晶振	Si500D	75 MHz	LVDS	3.3V
500DCBB108M000ACH	Skyworks晶振	Si500D	108 MHz	LVDS	3.3V
500DCBB108M000ACHR	Skyworks晶振	Si500D	108 MHz	LVDS	3.3V
500DCBB200M000ACH	Skyworks晶振	Si500D	200 MHz	LVDS	3.3V
500DCBB200M000ACHR	Skyworks晶振	Si500D	200 MHz	LVDS	3.3V
500DDAA100M000ACF	Skyworks晶振	Si500D	100 MHz	HCSL	3.3V
500DDAA100M000ACFR	Skyworks晶振	Si500D	100 MHz	HCSL	3.3V
500DDAA100M300ACF	Skyworks晶振	Si500D	100.3 MHz	HCSL	3.3V
500DDAA100M300ACFR	Skyworks晶振	Si500D	100.3 MHz	HCSL	3.3V
500DDAA106M250ACF	Skyworks晶振	Si500D	106.25 MHz	HCSL	3.3V
500DDAA106M250ACFR	Skyworks晶振	Si500D	106.25 MHz	HCSL	3.3V
500DDAA135M000ACF	Skyworks晶振	Si500D	135 MHz	HCSL	3.3V
500DDAA135M000ACFR	Skyworks晶振	Si500D	135 MHz	HCSL	3.3V
500DDAB100M000ACF	Skyworks晶振	Si500D	100 MHz	HCSL	3.3V
