6G无线局域网应用晶振,4HF100000Z3AACTGI,瑞萨LVDS有源晶振

频率：100.000MHz

尺寸：5.0x3.2mm

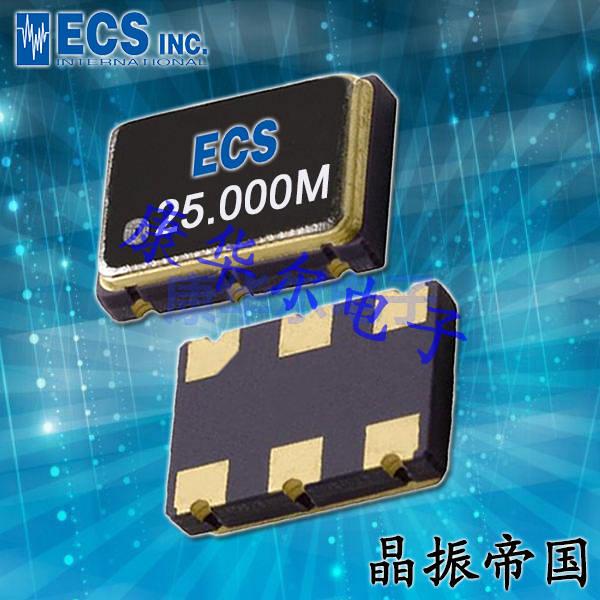

6G无线局域网应用晶振,4HF100000Z3AACTGI,瑞萨LVDS有源晶振，进口晶振，Renesas瑞萨电子晶振，4HF100000Z3系列晶振，编码为：4HF100000Z3AACTGI，频率为：100.000MHz，小体积晶振尺寸：5.0x3.2mm，六脚贴片晶振，石英晶振，有源晶体，LVPECL差分晶振，石英晶体振荡器。4HF100000Z3是一个超低相位抖动（100 fs）振荡器，能够在1ppm的步长中实现高达± 1000 ppm的实时频率边缘。它是理想的应用程序需要极低的抖动和/或加PPM时钟。从99.900到100.100MHz的任何频率都可以实时生成，而不需要使用y个外部XTAL或XO。差分晶振应用于：移动通讯设备，网络设备晶振，蓝牙模块，物联网，GPS定位系统，导航仪，汽车电子设备，安防设备，以太网等应用。

订购热线：0755-27838351

6G无线局域网应用晶振,4HF100000Z3AACTGI,瑞萨LVDS有源晶振，参数表

Parameter	2.5 V			3.3 V			Units	Conditions
	Specifications			Specifications
	Min	Typ	Max	Min	Typ	Max
Supply Voltage (VDD)	2.375	2.5	2.625	2.97	3.3	3.63	V
Output Frequency		100			100		MHz
Frequency Stability	-50		50	-50		50	ppm	Includes supply voltage and temperature variation (-40 to 85°C),
Frequency Stability	-50		50	-50		50	ppm	reflow drift, and aging.
Supply Current		90			95		mA	No load
Enable/Disable Time			1			1	us	Guaranteed by design
Input LOW level			0.3VDD	0. 7VDD		0.3VDD	V	At OE pin
Input HIGH level	0. 7VDD		VDD-1.8			VDD-1.8	V
Output LOW level		0.8		VDD-1.1	1.5		V
Output HIGH level	VDD-1.0	1.6			2.3		V
Amplitude (VA )		0.75			0.75		V	Single Ended output swing (Pk-Pk)
Mid Level (VM)		VDD-1.3			VDD-1.3		V
Rise Time (TR)			300		250		ps	Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.
Symmetry (SYM)	48	50	52	48	50	52	%	Worst case; measured at 50% of waveform
Phase Jitter		0.12			0.12			1.875MHz to 20MHz, RMS; Measured Differentially (IEEE802.3-2005)
Phase Jitter		0.25			0.25		ps	12k to 20MHz, RMS; Measured Differentially
Period Jitter		2.5			2.5		ps	RMS
Cycle-to-Cycle Jitter		20			20		ps	1,000 cycles, Peak
Start-up Time		10			10		ms	Output valid time after power up, 25°C
Aging		± 5			± 5		ppm	25°C, 10 years

6G无线局域网应用晶振,4HF100000Z3AACTGI,瑞萨LVDS有源晶振，尺寸图

6G无线局域网应用晶振,4HF100000Z3AACTGI,瑞萨LVDS有源晶振

产品特点：标称频率： 100.00MHz（LVPECL）

任何Freq调谐（±1000ppm）： 99.900至100.100MHz

RMS相位抖动：0.1ps典型的

频率稳定性： ± 25 / ± 50 ppm

标准软件包： 7050mm / 5032mm / 3225mm石英晶体振荡器

内部MEMS谐振器不需要外部XTAL或XO

编码	石英晶振厂家	描述	系列	频率
4HF100000Z3AACTGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3AACTGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3AACUGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3AACUGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3AACXGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3AACXGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3BACTGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3BACTGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3BACUGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3BACUGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3BACXGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z3BACXGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVPECL	4HF	100 MHz
4HF100000Z4AACTGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4AACTGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4AACUGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4AACUGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4AACXGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4AACXGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4BACTGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4BACTGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4BACUGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4BACUGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4BACXGI	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF100000Z4BACXGI8	Renesas晶振	MEMS OSC XO 100.0000MHZ LVDS SMD	4HF	100 MHz
4HF106250Z3AACTGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3AACTGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3AACUGI	进口晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3AACUGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3AACXGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3AACXGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3BACTGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3BACTGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3BACUGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3BACUGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3BACXGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z3BACXGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVPECL	4HF	106.25 MHz
4HF106250Z4AACTGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4AACTGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4AACUGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4AACUGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4AACXGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4AACXGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4BACTGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4BACTGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4BACUGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4BACUGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4BACXGI	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF106250Z4BACXGI8	Renesas晶振	MEMS OSC XO 106.2500MHZ LVDS SMD	4HF	106.25 MHz
4HF125000Z3BACTGI	Renesas晶振	MEMS OSC XO 125.0000MHZ LVPECL	4HF	125 MHz
4HF125000Z3BACTGI8	Renesas晶振	MEMS OSC XO 125.0000MHZ LVPECL	4HF	125 MHz
4HF125000Z3BACUGI	Renesas晶振	MEMS OSC XO 125.0000MHZ LVPECL	4HF	125 MHz
4HF125000Z3BACUGI8	Renesas晶振	MEMS OSC XO 125.0000MHZ LVPECL	4HF	125 MHz
4HF125000Z3BACXGI	Renesas晶振	MEMS OSC XO 125.0000MHZ LVPECL	4HF	125 MHz
4HF125000Z3BACXGI8	Renesas晶振	MEMS OSC XO 125.0000MHZ LVPECL	4HF	125 MHz
4HF125000Z4BACTGI	Renesas晶振	MEMS OSC XO 125.0000MHZ LVDS SMD	4HF	125 MHz
4HF125000Z4BACTGI8	Renesas晶振	MEMS OSC XO 125.0000MHZ LVDS SMD	4HF	125 MHz
4HF125000Z4BACUGI	Renesas晶振	MEMS OSC XO 125.0000MHZ LVDS SMD	4HF	125 MHz
4HF125000Z4BACUGI8	Renesas晶振	MEMS OSC XO 125.0000MHZ LVDS SMD	4HF	125 MHz
4HF125000Z4BACXGI	Renesas晶振	MEMS OSC XO 125.0000MHZ LVDS SMD	4HF	125 MHz
4HF125000Z4BACXGI8	Renesas晶振	MEMS OSC XO 125.0000MHZ LVDS SMD	4HF	125 MHz
4HF133330Z3AACTGI	Renesas晶振	MEMS OSC XO 133.3300MHZ LVPECL	4HF	133.33 MHz
4HF133330Z3AACTGI8	Renesas晶振	MEMS OSC XO 133.3300MHZ LVPECL	4HF	133.33 MHz
4HF133330Z3AACUGI	Renesas晶振	MEMS OSC XO 133.3300MHZ LVPECL	4HF	133.33 MHz
4HF133330Z3AACUGI8	Renesas晶振	MEMS OSC XO 133.3300MHZ LVPECL	4HF	133.33 MHz
4HF156250Z3BACTGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz
4HF156250Z3BACTGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz
4HF156250Z3BACUGI	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz
4HF156250Z3BACUGI8	Renesas晶振	MEMS OSC XO 156.2500MHZ LVPECL	4HF	156.25 MHz
