当前位置：首页 » 行业资讯 » KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振

KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振

返回列表 来源：爱普生晶振 查看手机网址
扫一扫!KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振扫一扫!
 浏览：- 发布日期：2022-07-18 08:35:11【大 中 小】
分享到：

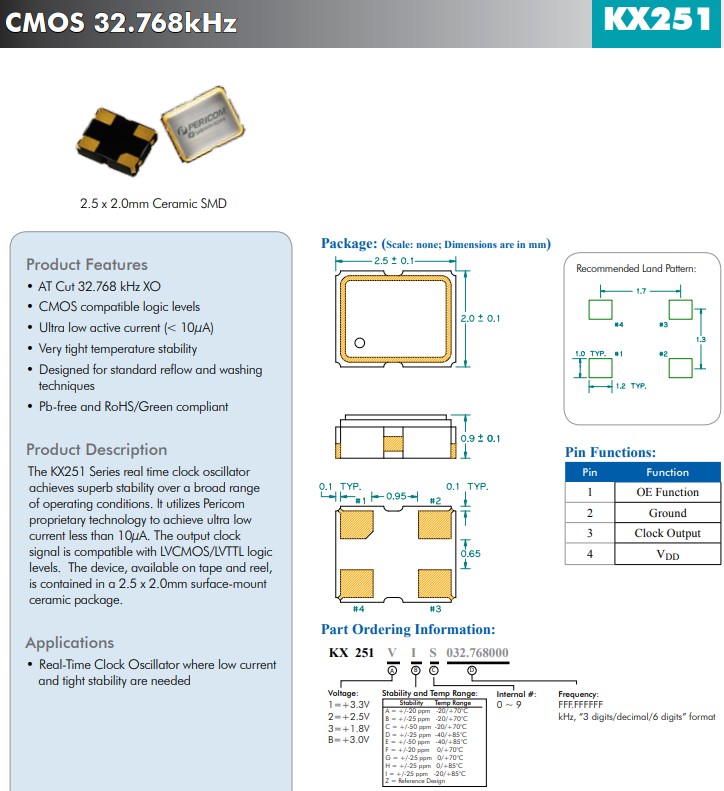

亚陶晶振KX251系列实时时钟振荡器在广泛的工作条件下实现了卓越的稳定性。1.8V/2.5V/3.3V，小体积晶振尺寸2.5x2.0mm, 32.768k晶振，CMOS晶体振荡器，它利用Pericom专有技术实现小于10μA的超低电流。输出时钟信号与LVCMOS/LVTTL逻辑电平兼容。该器件采用卷带包装，采用2.5x2.0mm表面贴装陶瓷封装。

特征：
AT Cut 32.768kHz XO晶体振荡器
CMOS兼容逻辑电平
超低有功电流（< 10μA）
非常严格的温度稳定性
专为标准回流和清洗技术而设计
无铅且符合 RoHS/Green 标准
应用：需要低电流和高度稳定性的实时时钟振荡器

KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振

FK4910001 Diodes Incorporated SaRonix-eCera™ FK 49.152MHz ±50ppm -20°C ~ 70°C
FK5000015 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±25ppm -20°C ~ 70°C
FK5000016 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -20°C ~ 70°C
FK5000019 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -40°C ~ 85°C
FK5000020 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -20°C ~ 70°C
FK5000022 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±25ppm -20°C ~ 70°C
FK5400005 Diodes Incorporated SaRonix-eCera™ FK 54MHz ±25ppm -20°C ~ 70°C
FK5400006 Diodes Incorporated SaRonix-eCera™ FK 54MHz ±50ppm -20°C ~ 70°C
FK6000003 Diodes Incorporated SaRonix-eCera™ FK 60MHz ±50ppm -20°C ~ 70°C
FK6000005 Diodes Incorporated SaRonix-eCera™ FK 60MHz ±25ppm -20°C ~ 70°C
FK6250003 Diodes Incorporated SaRonix-eCera™ FK 62.5MHz ±50ppm -20°C ~ 70°C
FK6250004 Diodes Incorporated SaRonix-eCera™ FK 62.5MHz ±25ppm -20°C ~ 70°C
FK6250005 Diodes Incorporated SaRonix-eCera™ FK 62.5MHz ±50ppm -40°C ~ 85°C
FK6400001 Diodes Incorporated SaRonix-eCera™ FK 64MHz ±50ppm -20°C ~ 70°C
FK6400002 Diodes Incorporated SaRonix-eCera™ FK 64MHz ±25ppm -20°C ~ 70°C
FK6400003 Diodes Incorporated SaRonix-eCera™ FK 64MHz ±50ppm -40°C ~ 85°C
FK6600004 Diodes Incorporated SaRonix-eCera™ FK 66MHz ±50ppm -20°C ~ 70°C
FK6600005 Diodes Incorporated SaRonix-eCera™ FK 66MHz ±25ppm -20°C ~ 70°C
FK6600006 Diodes Incorporated SaRonix-eCera™ FK 66MHz ±50ppm -40°C ~ 85°C
FK6660005 Diodes Incorporated SaRonix-eCera™ FK 66.667MHz ±50ppm -20°C ~ 70°C
FK6660006 Diodes Incorporated SaRonix-eCera™ FK 66.667MHz ±25ppm -20°C ~ 70°C
FK6660007 Diodes Incorporated SaRonix-eCera™ FK 66.667MHz ±50ppm -40°C ~ 85°C
FK6660008 Diodes Incorporated SaRonix-eCera™ FK 66.66MHz ±50ppm -20°C ~ 70°C
FK6660009 Diodes Incorporated SaRonix-eCera™ FK 66.67MHz ±50ppm -40°C ~ 85°C
FK7420004 Diodes Incorporated SaRonix-eCera™ FK 74.25MHz ±50ppm -40°C ~ 85°C
FK7500006 Diodes Incorporated SaRonix-eCera™ FK 75MHz ±50ppm -20°C ~ 70°C

晶振

参数

FK7500007 Diodes Incorporated SaRonix-eCera™ FK 75MHz ±25ppm -20°C ~ 70°C
FK7500009 Diodes Incorporated SaRonix-eCera™ FK 75MHz ±50ppm -40°C ~ 85°C
FK7770001 Diodes Incorporated SaRonix-eCera™ FK 77.76MHz ±50ppm -20°C ~ 70°C
FK7770002 Diodes Incorporated SaRonix-eCera™ FK 77.76MHz ±25ppm -20°C ~ 70°C
FK7770003 Diodes Incorporated SaRonix-eCera™ FK 77.76MHz ±50ppm -40°C ~ 85°C
FN0100007 Diodes Incorporated SaRonix-eCera™ FN 1MHz ±50ppm -40°C ~ 85°C
FN0180035 Diodes Incorporated SaRonix-eCera™ FN 1.843MHz ±50ppm -20°C ~ 70°C
FN0180036 Diodes Incorporated SaRonix-eCera™ FN 1.843MHz ±25ppm -20°C ~ 70°C
FN0180037 Diodes Incorporated SaRonix-eCera™ FN 1.843MHz ±50ppm -40°C ~ 85°C
FN0200043 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±25ppm -20°C ~ 70°C
FN0200044 Diodes Incorporated SaRonix-eCera™ FN 2.048MHz ±50ppm -40°C ~ 85°C
FN0200046 Diodes Incorporated SaRonix-eCera™ FN 2MHz ±50ppm -20°C ~ 70°C
FN0230001 Diodes Incorporated SaRonix-eCera™ FN 2.34MHz ±50ppm -20°C ~ 70°C
FN0360036 Diodes Incorporated SaRonix-eCera™ FN 3.686MHz ±50ppm -40°C ~ 85°C
FN0360038 Diodes Incorporated SaRonix-eCera™ FN 3.686MHz ±50ppm -20°C ~ 70°C
FN0400060 Diodes Incorporated SaRonix-eCera™ FN 4.096MHz ±50ppm -20°C ~ 70°C
FN0400061 Diodes Incorporated SaRonix-eCera™ FN 4MHz ±25ppm -20°C ~ 70°C
FN0400062 Diodes Incorporated SaRonix-eCera™ FN 4MHz ±50ppm -20°C ~ 70°C
FN0400063 Diodes Incorporated SaRonix-eCera™ FN 4MHz ±50ppm -40°C ~ 85°C
FN0600010 Diodes Incorporated SaRonix-eCera™ FN 6MHz ±50ppm -40°C ~ 85°C
FN0600011 Diodes Incorporated SaRonix-eCera™ FN 6MHz ±50ppm -20°C ~ 70°C
FN0640004 Diodes Incorporated SaRonix-eCera™ FN 6.4MHz ±50ppm -40°C ~ 85°C
FN0670003 Diodes Incorporated SaRonix-eCera™ FN 6.758MHz ±25ppm -20°C ~ 70°C
FN0800032 Diodes Incorporated SaRonix-eCera™ FN 8MHz ±50ppm -40°C ~ 85°C
FN0810016 Diodes Incorporated SaRonix-eCera™ FN 8.192MHz ±50ppm -20°C ~ 70°C

KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振

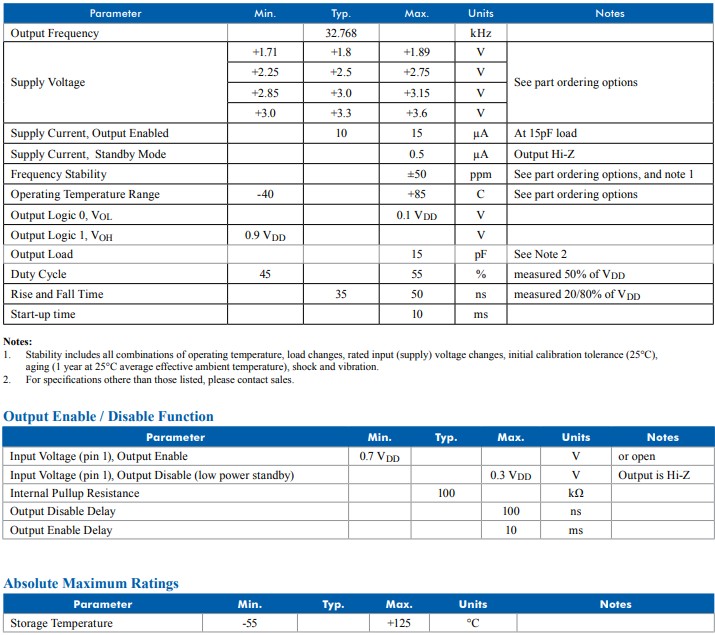

产品参数

输出逻辑 CMOS
电源电压 (V) 1.8,2.5,3.3
包装尺寸（毫米） 2.5 x 2.0 x 0.9
包装类型 陶瓷缝
稳定性 (PPM) 20到50
产品系列 KX251 有源晶体
频率范围 (MHz) 32.768KHZ
抖动均方根 (ps) <1 PS
垫 4
家庭 千赫XO
FN0810017 Diodes Incorporated SaRonix-eCera™ FN 8.192MHz ±25ppm -20°C ~ 70°C
FN0810018 Diodes Incorporated SaRonix-eCera™ FN 8.192MHz ±50ppm -40°C ~ 85°C
FN0810019 Diodes Incorporated SaRonix-eCera™ FN 8.192MHz ±25ppm -20°C ~ 70°C
FN0810020 Diodes Incorporated SaRonix-eCera™ FN 8.192MHz ±25ppm -20°C ~ 70°C
FN1000055 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -20°C ~ 70°C
FN1000057 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±50ppm -40°C ~ 85°C
FN1000058 Diodes Incorporated SaRonix-eCera™ FN 10MHz ±25ppm -20°C ~ 70°C
FN1100025 Diodes Incorporated SaRonix-eCera™ FN 11.059MHz ±50ppm -40°C ~ 85°C
FN1100027 Diodes Incorporated SaRonix-eCera™ FN 11.059MHz ±50ppm -20°C ~ 70°C
FN1200037 Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -20°C ~ 70°C
FN1200038 Diodes Incorporated SaRonix-eCera™ FN 12MHz ±25ppm -20°C ~ 70°C
FN1200041 Diodes Incorporated SaRonix-eCera™ FN 12MHz ±50ppm -40°C ~ 85°C
FN1220024 Diodes Incorporated SaRonix-eCera™ FN 12.288MHz ±50ppm -20°C ~ 70°C
FN1220026 Diodes Incorporated SaRonix-eCera™ FN 12.288MHz ±25ppm -20°C ~ 70°C
FN1280007 Diodes Incorporated SaRonix-eCera™ FN 12.8MHz ±25ppm -20°C ~ 70°C
FN1320001 Diodes Incorporated SaRonix-eCera™ FN 13.288MHz ±25ppm -20°C ~ 70°C
FN1430047 Diodes Incorporated SaRonix-eCera™ FN 14.318MHz ±50ppm -20°C ~ 70°C
FN1430048 Diodes Incorporated SaRonix-eCera™ FN 14.3181MHz ±25ppm -20°C ~ 70°C
FN1430049 Diodes Incorporated SaRonix-eCera™ FN 14.3181MHz ±50ppm -40°C ~ 85°C
FN1430050 Diodes Incorporated SaRonix-eCera™ FN 14.318MHz ±50ppm -20°C ~ 70°C
FN1470033 Diodes Incorporated SaRonix-eCera™ FN 14.746MHz ±50ppm -20°C ~ 70°C
FN1470034 Diodes Incorporated SaRonix-eCera™ FN 14.746MHz ±25ppm -20°C ~ 70°C
FN1470035 Diodes Incorporated SaRonix-eCera™ FN 14.746MHz ±50ppm -40°C ~ 85°C
FN1500008 Diodes Incorporated SaRonix-eCera™ FN 15MHz ±50ppm -40°C ~ 85°C
FN1600044 Diodes Incorporated SaRonix-eCera™ FN 16MHz ±25ppm -20°C ~ 70°C

KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振

KX201 1.82.53.3 2.0 x 1.6 x 0.75 陶瓷缝 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶体振荡器
KX251 1.82.53.3 2.5 x 2.0 x 0.9 陶瓷缝 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS 晶体振荡器
KX31Q 3.32.51.8 3.2 x 2.5 陶瓷缝 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低电流、32.768KHz、汽车级CMOS晶体振荡器
KX321 1.82.53.3 3.2 x 2.5 x 1.0 陶瓷缝 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶体振荡器
KX501 1.82.53.3 5.0 x 3.2 x 1.2 陶瓷缝 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶体振荡器
FN1600045 Diodes Incorporated SaRonix-eCera™ FN 16MHz ±50ppm -40°C ~ 85°C
FN1630021 Diodes Incorporated SaRonix-eCera™ FN 16.384MHz ±50ppm -20°C ~ 70°C
FN1630022 Diodes Incorporated SaRonix-eCera™ FN 16.384MHz ±25ppm -20°C ~ 70°C
FN1630023 Diodes Incorporated SaRonix-eCera™ FN 16.384MHz ±50ppm -40°C ~ 85°C
FN1630024 Diodes Incorporated SaRonix-eCera™ FN 16.384MHz ±25ppm -20°C ~ 70°C
FN1660005 Diodes Incorporated SaRonix-eCera™ FN 16.6MHz ±50ppm -20°C ~ 70°C
FN1690007 Diodes Incorporated SaRonix-eCera™ FN 16.934MHz ±50ppm -20°C ~ 70°C
FN1840018 Diodes Incorporated SaRonix-eCera™ FN 18.432MHz ±50ppm -20°C ~ 70°C
FN1840019 Diodes Incorporated SaRonix-eCera™ FN 18.432MHz ±25ppm -20°C ~ 70°C
FN1840020 Diodes Incorporated SaRonix-eCera™ FN 18.432MHz ±50ppm -40°C ~ 85°C
FN1840021 Diodes Incorporated SaRonix-eCera™ FN 18.432MHz ±25ppm -20°C ~ 70°C
FN1940015 Diodes Incorporated SaRonix-eCera™ FN 19.44MHz ±50ppm -20°C ~ 70°C
FN1940016 Diodes Incorporated SaRonix-eCera™ FN 19.44MHz ±25ppm -20°C ~ 70°C
FN1940018 Diodes Incorporated SaRonix-eCera™ FN 19.44MHz ±50ppm -40°C ~ 85°C
FN2000113 Diodes Incorporated SaRonix-eCera™ FN 20MHz ±25ppm -20°C ~ 70°C
FN2000118 Diodes Incorporated SaRonix-eCera™ FN 20MHz ±50ppm -40°C ~ 85°C
FN2000121 Diodes Incorporated SaRonix-eCera™ FN 20MHz ±50ppm -20°C ~ 70°C
FN2000123 Diodes Incorporated SaRonix-eCera™ FN 20MHz ±50ppm -20°C ~ 70°C
FN2210008 Diodes Incorporated SaRonix-eCera™ FN 22.118MHz ±50ppm -20°C ~ 70°C
FN2400045 Diodes Incorporated SaRonix-eCera™ FN 24MHz ±50ppm -40°C ~ 85°C
FN2400046 Diodes Incorporated SaRonix-eCera™ FN 24MHz ±50ppm -20°C ~ 70°C
FN2400047 Diodes Incorporated SaRonix-eCera™ FN 24MHz ±25ppm -20°C ~ 70°C
FN2450040 Diodes Incorporated SaRonix-eCera™ FN 24.576MHz ±50ppm -40°C ~ 85°C
FN2450041 Diodes Incorporated SaRonix-eCera™ FN 24.576MHz ±25ppm -20°C ~ 70°C
FN2450042 Diodes Incorporated SaRonix-eCera™ FN 24.576MHz ±50ppm -20°C ~ 70°C
FN2450046 Diodes Incorporated SaRonix-eCera™ FN 24.575MHz ±50ppm -40°C ~ 85°C

KX251系列32.768K晶振CMOS晶体振荡器,KX2513BS032.768000,2520mm晶振,ECERA超小型晶振

我们的32.768kHz晶体振荡器 (XO) 具有适用于各种应用的卓越性能。我们的产品包括世界上最小的32.768kHz晶体振荡器 (XO)，小体积晶振尺寸仅为 2.0 x 1.6 mm（KM 系列）。KM 系列旨在应对小型化的挑战，同时保持时序信号的卓越精度。我们还提供 KX 系列晶体振荡器，它们是业界功耗最低（小于 10 µA）和最严格稳定性 (+/- 20 ppm) 的 32kHz XO。
由于许多低功耗和便携式应用程序大部分时间都处于待机模式，因此这些系统必须最大限度地降低待机功耗。我们基于 32.768 kHz 的定时源允许这些系统快速转换到待机模式（<10ms），以最大限度地延长电池寿命，而不会牺牲维持准确时钟和日历所需的稳定性（± 20ppm）。

“推荐阅读”

    【本文标签】：KX251系列32.768K晶振CMOS晶体振荡器 KX2513BS032.768000 2520mm晶振 ECERA超小型晶振
