ATS-SM,ATS098SM-1,9.8304MHz,20PF,30PPM,-20~70℃,49SMD，美国CTS晶振公司,功能标准HC-49/US[通孔]和HC-49/US-SM[表面安装]包装稳定频率超过温度和驱动水平基础和第三泛音晶体频率范围3.2-64MHz频率容差，±30 ppm标准频率稳定性，±50ppm，50标准工作温度-20°C+70°标准，-40°C+85°C胶带和卷轴包装可用RoHS/绿色兼容[6/6]应用ATS/ATS-SM晶体系列提供了良好的长期稳定性和可靠性。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。
ATS-SM,ATS098SM-1,9.8304MHz,20PF,30PPM,-20~70℃,49SMD

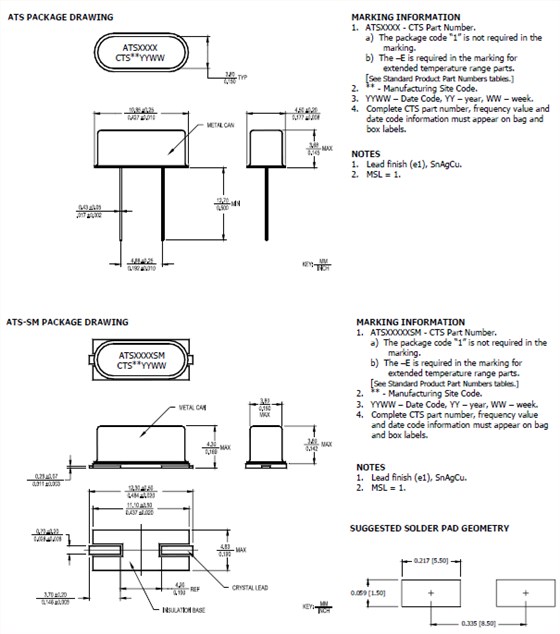

PARAMETER
VALUE
Frequency Range
3.2 MHz to 64.0 MHz
Operating Mode
Fundamental or 3rd Overtone
Crystal Cut
AT-Cut
Frequency Tolerance @ +25°C
± 30 ppm Standard *
Frequency Stability Tolerance
(Operating Temperature Range, Referenced to 25°C Reading)
± 50 ppm Standard *
Operating Temperature Range
-20°C to +70°C *
-40°C to +85°C Available,See Ordering Information
Equivalent Series Resistance
See ESR Table
Load Capacitance or Resonance Mode
See Standard Part Numbers tables *
Shunt Capacitance(C0)
7.0 pF Maximum
Drive Level
100 µW Typical, 1,000 µW Maximum
Aging @ +25°C
±3 ppm/yr Typical, ±5 ppm/yr Maximum
Insulation Resistance
500 Ohms @ DC 100V
Storage Temperature Range
-40°C to +85°C
Reflow Condition, per JEDEC J-STD-020
+260°C Maximum, 10 Seconds Maximum
ATS-SM,ATS098SM-1,9.8304MHz,20PF,30PPM,-20~70℃,49SMD
| CTS原厂编码 | 生产厂家 | 型号 | Type 系列 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 |
| ATS049ASM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 4.9152MHz | ±50ppm | ±30ppm | Series |
| ATS08ASM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 8MHz | ±50ppm | ±30ppm | 20pF |
| ATS060SM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 6MHz | ±50ppm | ±30ppm | 20pF |
| ATS041CSM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 4.194304MHz | ±50ppm | ±30ppm | 12pF |
| ATS080SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 8MHz | ±50ppm | ±30ppm | Series |
| ATS240SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 24MHz | ±50ppm | ±30ppm | Series |
| ATS100SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 10MHz | ±50ppm | ±30ppm | Series |
| ATS080SM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 8MHz | ±50ppm | ±30ppm | Series |
| ATS12ASM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 12MHz | ±50ppm | ±30ppm | 20pF |
| ATS240BSM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 24MHz | ±50ppm | ±30ppm | 18pF |
| ATS08ASM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 8MHz | ±50ppm | ±30ppm | 20pF |
| ATS036SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 3.579545MHz | ±50ppm | ±30ppm | 18pF |
| ATS160SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 16MHz | ±50ppm | ±30ppm | Series |
| ATS200SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 20MHz | ±50ppm | ±30ppm | Series |
| ATS049BSM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 4.9152MHz | ±50ppm | ±30ppm | 18pF |
| ATS080BSM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 8MHz | ±50ppm | ±30ppm | 18pF |
| ATS250BSM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 25MHz | ±50ppm | ±30ppm | 18pF |
| ATS060SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 6MHz | ±50ppm | ±30ppm | 20pF |
| ATS120SM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 12MHz | ±50ppm | ±30ppm | Series |
| ATS037BSM-1 | CTS-Frequency Controls | ATS-SM | MHz Crystal | 3.6864MHz | ±50ppm | ±30ppm | 18pF |
| ATS120SM-1E | CTS-Frequency Controls | ATS-SM | MHz Crystal | 12MHz | ±50ppm | ±30ppm | Series |
