X1A000141000600,FC-135R石英晶振,日本EPSON晶振

X1A000141000600,FC-135R石英晶振,日本EPSON晶振X1A000141000600,FC-135R石英晶振,日本EPSON晶振

产品简介

X1A000141000600,FC-135R石英晶振,日本EPSON晶振,3215小型贴片规格,面向电池供电IoT微型传感器开发.超低驱动功耗适配纽扣电池长期续航,32.768KHz标准频率为MCURTC模块提供精准时钟,支撑定时数据采集,设备休眠唤醒,日志记录功能.宽温-40℃至85℃适配室内外温差环境,气密封装防尘防潮,长期户外运行不易停振,频偏.两脚贴片兼容全自动SMT流水线,无铅环保符合全球出口规范,适配温湿度传感器,门窗感应标签,微型定位器.


产品详情

X1A000141000600,FC-135R石英晶振,日本EPSON晶振

EPSON日产FC-135R晶振型号X1A000141000600,32.768KHz低频谐振器,专为TWS蓝牙耳机,BLE无线传感模组打造.微型3215mm轻薄封装节约模组布线空间,音叉晶体静态功耗极低,满足耳机长时间休眠待机需求,稳定支撑定时连接,充电计时,降噪定时功能.一体化密封外壳隔绝水汽粉尘,抗震动性能适配耳机日常磕碰,高低温切换无明显频漂.标准负载电容匹配各类蓝牙音频主控,外围电路简单易调试,缩短硬件研发周期.日本原厂全流程检测,老化漂移数值极小,长期使用计时稳定,原装货源稳定,轻量化无线音频模组量产适配性极强.

X1A000141000600,FC-135R石英晶振,日本EPSON晶振

品牌 EPSON爱普生晶振
编码 X1A000141000600
型号 FC-135R
频率 32.768KHZ
精度 ±20ppm
负载 6PF
尺寸 3215mm
工作温度 −40℃ ～ +85℃

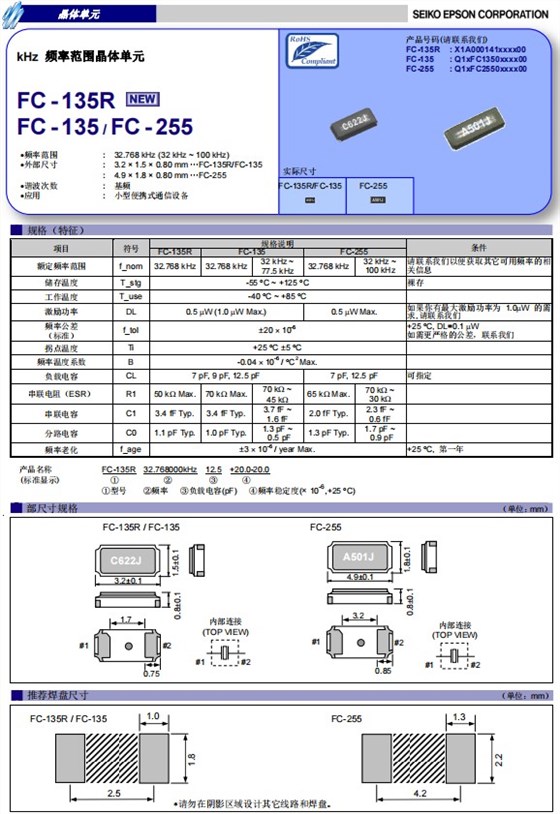

X1A000141000600,FC-135R石英晶振,日本EPSON晶振FC-135，FC-135R,FC-255

更多相关晶振参考

编码 品牌 型号 尺寸 频率 负载
12.87000 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 12.5pF
12.87001 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 9pF
12.87002 GEYER KX-327V 1.25×1.05×0.5mm 32.768kHz 7pF
12.87034 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 4pF
12.87080 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87081 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF
12.87083 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF
12.87086 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 6pF
12.87090 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87095 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87105 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF
12.87107 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87109 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12pF
12.87110 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87111 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87112 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87113 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87114 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87115 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87116 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 12.5pF
12.87118 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF
12.87119 GEYER KX-327S 8.2×3.8×2.5mm 32.768kHz 6pF
12.87120 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87121 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87123 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF
12.87126 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87127 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF
12.87128 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 6pF
12.87129 GEYER KX-327XS 4.95×1.82×0.96mm 32.768kHz 12.5pF
12.87130 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87131 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87132 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87133 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87134 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87135 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87136 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87137 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 9pF
12.87138 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 12.5pF
12.87139 GEYER KX-327L 7.0×1.5×1.4mm 32.768kHz 7pF
12.87143 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87144 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87145 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768KHz 12.5pF
12.87146 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87147 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87148 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87149 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87150 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87151 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 9pF
12.87152 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87153 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 7pF
12.87155 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87157 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87158 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87159 GEYER KX-327NHT 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87160 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87161 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87163 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 7pF
12.87164 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87165 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87166 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87167 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87168 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87169 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
12.87170 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF
12.87171 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF
12.87172 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 9pF
12.87173 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 9pF
12.87174 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF
12.87175 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF
12.87176 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 7pF
12.87177 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 12.5pF
12.87178 GEYER KX-327FT 1.6×1.0×0.5mm 32.768kHz 4pF
12.87180 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 9pF
12.87181 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87182 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 7pF
12.87183 GEYER KX-327NH 3.2×1.5×0.8mm 32.768kHz 12.5pF
12.87186 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 12.5pF
12.87187 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 6pF
12.87188 GEYER KX-327R 2.0×1.2×0.6mm 32.768kHz 9pF
