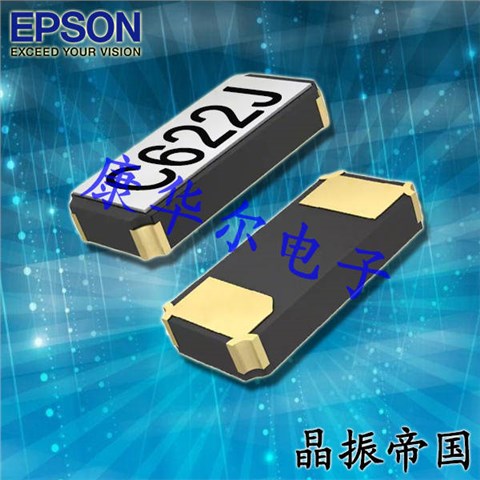

Q13FC1350000400,日本爱普生无源晶振,3215贴片晶振

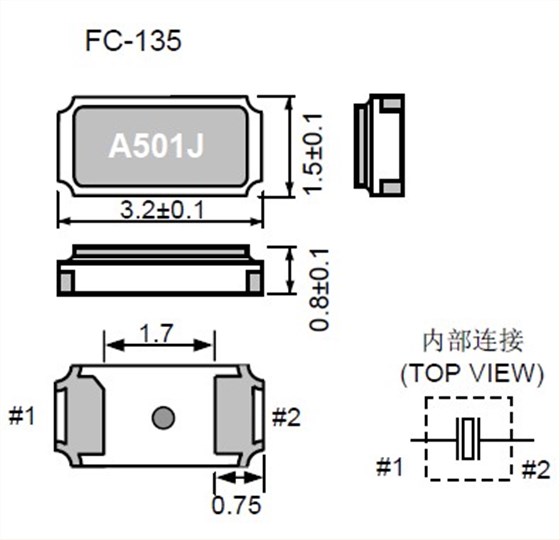

Q13FC1350000400是日本爱普生原厂FC-135系列3215mm封装无源贴片晶振,标准频率32.768kHz,尺寸3.2×1.5×0.9mm,两脚金属密封贴片结构,适配全自动SMT贴装生产.产品负载电容12.5pF,常温频率公差±20ppm,串联最大ESR70kΩ,激励功率低至0.5μW,超低功耗适配电池供电设备.工作温域覆盖-40℃至+85℃,温漂曲线稳定,年老化偏差极小,符合RoHS无铅环保标准.专为RTC实时时钟设计,广泛用于蓝牙WiFi无线模组,智能穿戴,工业传感器,便携仪表,原厂音叉石英工艺保障长期计时精准,现货稳定,一致性高,是消费与物联网设备主流时钟无源晶振选型.
Q13FC1350000400,日本爱普生无源晶振,3215贴片晶振
| 品牌 | 爱普生 |
| 编码 | Q13FC1350000400 |
| 型号 | FC-135晶振 |
| 频率 | 32.7658K |
| 精度 | ±20ppm |
| 负载 | 12.5PF |
| 尺寸 | 3215mm |
| 工作温度 | −40℃ ～ +85℃ |
Q13FC1350000400,日本爱普生无源晶振,3215贴片晶振
更多相关晶振参考
| 编码 | 品牌 | 型号 | 尺寸 | 频率 | 负载 |
| 12.87000 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 12.5pF |
| 12.87001 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 9pF |
| 12.87002 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 7pF |
| 12.87034 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 4pF |
| 12.87080 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87081 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87083 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87086 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87090 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87095 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87105 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87107 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87109 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12pF |
| 12.87110 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87111 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87112 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87113 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87114 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87115 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87116 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87118 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87119 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87120 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87121 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87123 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87126 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87127 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87128 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87129 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87130 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87131 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87132 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87133 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87134 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87135 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87136 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87137 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 9pF |
| 12.87138 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87139 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87143 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87144 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87145 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768KHz | 12.5pF |
| 12.87146 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87147 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87148 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87149 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87150 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87151 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87152 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87153 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87155 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87157 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87158 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87159 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87160 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87161 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87163 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 7pF |
| 12.87164 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87165 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87166 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87167 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87168 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87169 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87170 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87171 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87172 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 9pF |
| 12.87173 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 9pF |
| 12.87174 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87175 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87176 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87177 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87178 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 4pF |
| 12.87180 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87181 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87182 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87183 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87186 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87187 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 6pF |
| 12.87188 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
