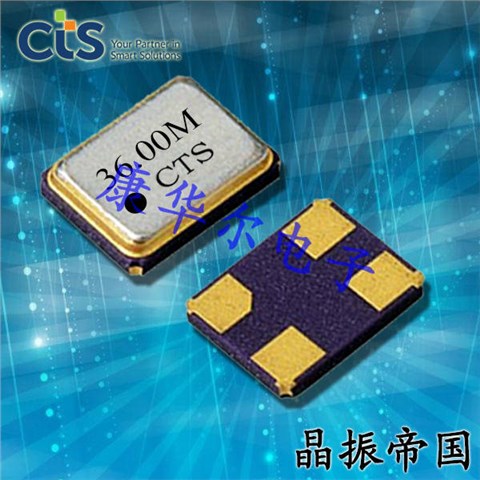

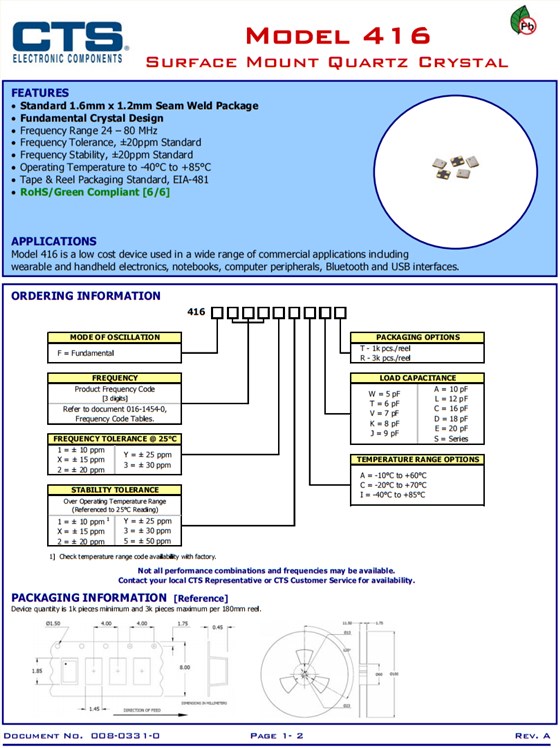

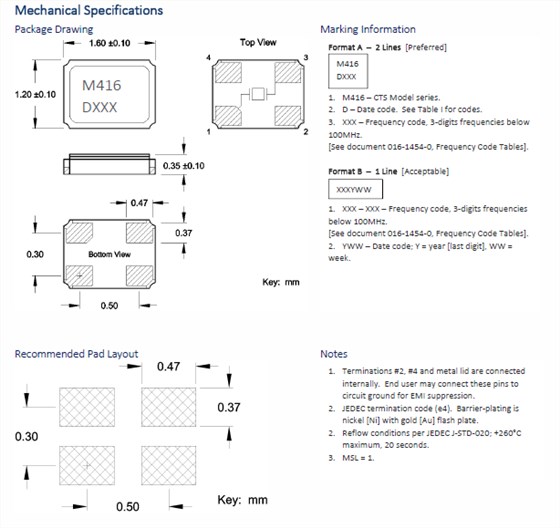

416F38013IDR|38MHz|10PPM|18PF|-40~85℃，CTS晶振，密封陶瓷表面安装封装，基本晶体设计，频率范围24-80MHz，频率公差，±20ppm标准，频率稳定性，±20ppm标准，工作温度范围到-40°C到+85°C，磁带和卷轴包装，EIA-418，可穿戴和手持电子，无线通信，FPGA/微控制器，计算机外设，USB接口，测量设备，消费电子，高密度板布局。
416F38013IDR|38MHz|10PPM|18PF|-40~85℃

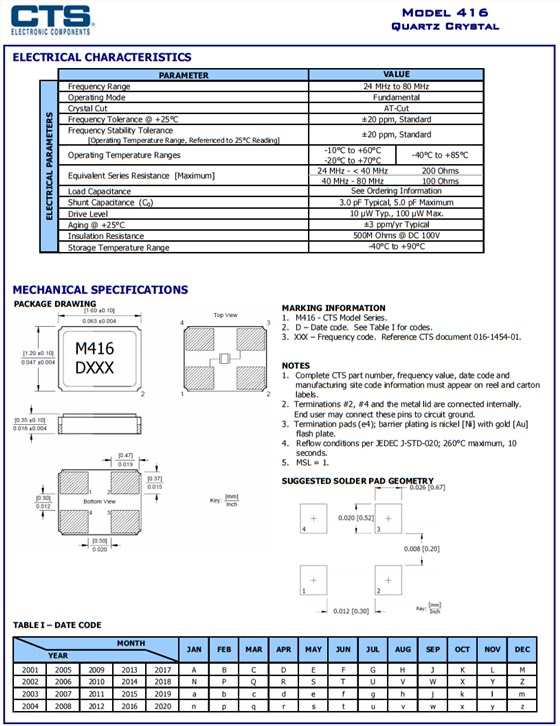

PARAMETER
SYMBOL
CONDITIONS
MIN TY P MAX
UNIT
Operating Temperature
TA
-
- 10
-20
-30
-40
+25
+60
+70
+85
+85
°C
Storage Temperature
TSTG
-
-40 - +90
°C
Frequency Stability
PARAMETER
SYMBOL
CONDITIONS
MIN TY P MAX
UNIT
Frequency Range
fO
-
24 - 80
MHz
Frequency Tolerance
Δf/fO
@ +25°C
10, 15, 20, 25 or 30
±ppm
Frequency Stability
Δf/f25
Referenced to +25°C reading
10, 15, 20, 25, 30 or 50
±ppm
Aging
Δf/f0
Typical per year @ +25°C
- ±3 -
ppm
Crystal Parameters
PARAMETER
SYMBOL
CONDITIONS
MIN TY P MAX
UNIT
Operating Mode
-
-
Fundamental
-
Crystal Cut
-
-
AT-Cut Strip
-
Load Capacitance
CL
-
See Ordering Information
pF
Shunt Capacitance
C0
-
- 3.0 5.0
pF
Series Resistance
Fundamental
R1
24MHz - <30MHz
30MHz - <37MHz
37MHz - <80MHz
- - 120
- - 80
- - 60
?
Drive Level
DL
-
- 10 200
µW
Insulation Resistance
Ri
+100Vdc ±15Vdc
500 - -
M?
416F38013IDR|38MHz|10PPM|18PF|-40~85℃
| CTS原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 | ESR电阻 |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | ±20ppm | 8pF | 200 Ohm |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | ±20ppm | 8pF | 100 Ohm |
