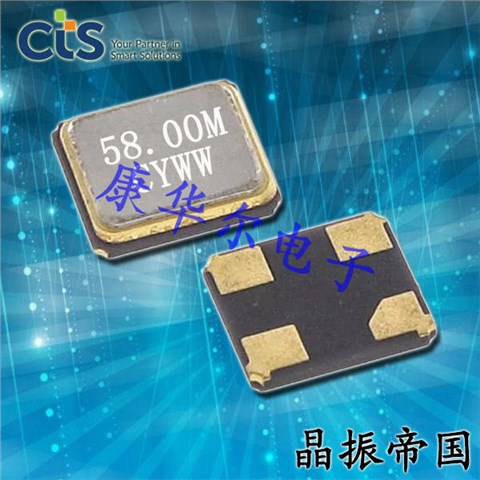

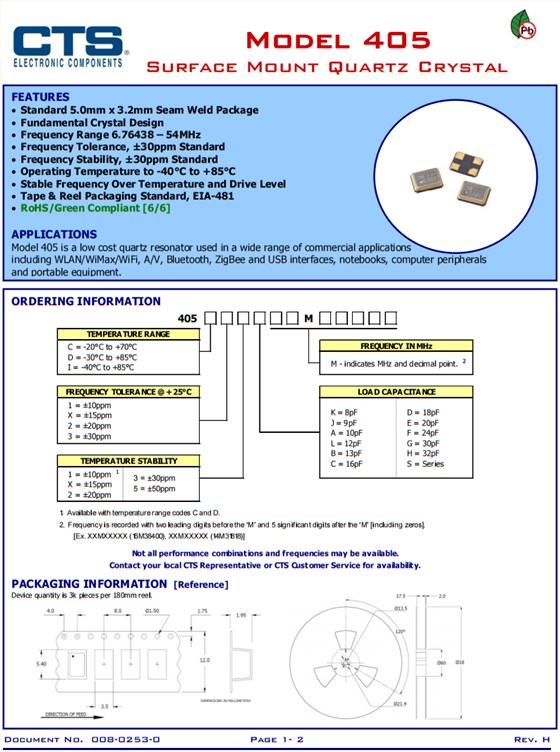

405C35B15M36000,15.36MHz,30ppm,13PF,-20~70℃,5032，美国CTS晶振公司，标准5.0mm x 3.2mm焊缝包装，基本晶体设计频率范围6.76438-54MHz频率公差，±30ppm标准频率稳定，±30ppm，标准工作温度-40°C+85°C，稳定频率超过温度和驱动器水平，磁带和卷轴包装标准，EIA-481，RoHS/绿色兼容[6/6]，405型是一种低成本的石英谐振器，广泛应用于包括WLAN/WiMax/WiFi、A/V、蓝牙、ZigBee和USB接口、笔记本电脑、计算机外设和便携式设备。
| PARAMETER | VALUE | ||||||||||||
| Frequency Range | 15.36MHz | ||||||||||||
| Operating Mode | Fundamental | ||||||||||||
| Crystal Cut | AT-Cut | ||||||||||||
| Frequency Tolerance @ +25°C | ±30ppm, Standard | ||||||||||||
|
Frequency Stability Tolerance [Operating Temperature Range, Referenced to +25°C Reading] |
±30ppm, Standard | ||||||||||||
| Operating Temperature Ranges | -20°C to +70°C | ||||||||||||
| -30°C to +85°C | -40°C to +85°C | ||||||||||||
| Equivalent Series Resistance [Maximum] | 6.76438MHz - <11MHz | 80 Ohms | |||||||||||
| 11MHz - <15MHz | 60 Ohms | ||||||||||||
| 15MHz - <35MHz | 50 Ohms | ||||||||||||
| 35MHz - 54MHz | 40 Ohms | ||||||||||||
| Load Capacitance | See Ordering Information | ||||||||||||
| Shunt Capacitance [C0] | 5.0pF Typical, 7.0pF Maximum | ||||||||||||
| Drive Level | 10µW Typ., 200µW Max. | ||||||||||||
| Aging @ +25°C | ±3ppm/yr Typical | ||||||||||||
| Insulation Resistance | 500M Ohms @ DC 100V | ||||||||||||
| Storage Temperature Range | -40°C to +100°C | ||||||||||||
CTS晶振405,405I35D48M00000石英晶振
CTS原厂编码
生产厂家
型号
Type 系列
频率
频率稳定度
频率偏差
负载电容
405C35B16M00000
CTS-Frequency Controls
405
MHz Crystal
16MHz
±50ppm
±30ppm
13pF
405I35D12M00000
CTS-Frequency Controls
405
MHz Crystal
12MHz
±50ppm
±30ppm
18pF
405C35B25M00000
CTS-Frequency Controls
405
MHz Crystal
25MHz
±50ppm
±30ppm
13pF
405I35D25M00000
CTS-Frequency Controls
405
MHz Crystal
25MHz
±50ppm
±30ppm
18pF
405C35D12M00000
CTS-Frequency Controls
405
MHz Crystal
12MHz
±50ppm
±30ppm
18pF
405C35B12M00000
CTS-Frequency Controls
405
MHz Crystal
12MHz
±50ppm
±30ppm
13pF
405C35B24M00000
CTS-Frequency Controls
405
MHz Crystal
24MHz
±50ppm
±30ppm
13pF
405C35D27M00000
CTS-Frequency Controls
405
MHz Crystal
27MHz
±50ppm
±30ppm
18pF
405C35B16M36800
CTS-Frequency Controls
405
MHz Crystal
16.368MHz
±50ppm
±30ppm
13pF
405C35B19M20000
CTS-Frequency Controls
405
MHz Crystal
19.2MHz
±50ppm
±30ppm
13pF
405I35D48M00000
CTS-Frequency Controls
405
MHz Crystal
48MHz
±50ppm
±30ppm
18pF
405C35B11M05920
CTS-Frequency Controls
405
MHz Crystal
11.0592MHz
±50ppm
±30ppm
13pF
405C35E16M00000
CTS-Frequency Controls
405
MHz Crystal
16MHz
±50ppm
±30ppm
20pF
405C35D10M00000
CTS-Frequency Controls
405
MHz Crystal
10MHz
±50ppm
±30ppm
18pF
405C11B26M00000
CTS-Frequency Controls
405
MHz Crystal
26MHz
±10ppm
±10ppm
13pF
405C11A16M00000
CTS-Frequency Controls
405
MHz Crystal
16MHz
±10ppm
±10ppm
10pF
405C11A19M20000
CTS-Frequency Controls
405
MHz Crystal
19.2MHz
±10ppm
±10ppm
10pF
405C35B12M80000
CTS-Frequency Controls
405
MHz Crystal
12.8MHz
±50ppm
±30ppm
13pF
405C35B13M00000
CTS-Frequency Controls
405
MHz Crystal
13MHz
±50ppm
±30ppm
13pF
