6G路由器应用晶振SUO22L3A481-100.000M超低相位抖动振荡器

2023-07-12 17:39:30

Suntsu石英振荡器提供通孔或表面贴装封装,有多种尺寸可供选择。我们提供宽频率范围和许多不同的电压和逻辑选项。从下面列出的数据表中选择一个标准零件号,或者联系我们的销售团队请求您想要的任何定制参数,我们将根据您的特定需求进行设计。晶体振荡器是一种电子电路,它利用压电材料振动晶体的机械共振来产生频率非常精确的电信号。该频率通常用于记录时间,为数字集成电路提供稳定的时钟信号,以及稳定无线电发射机和接收机的频率。6G路由器应用晶振SUO22L3A481-100.000M超低相位抖动振荡器

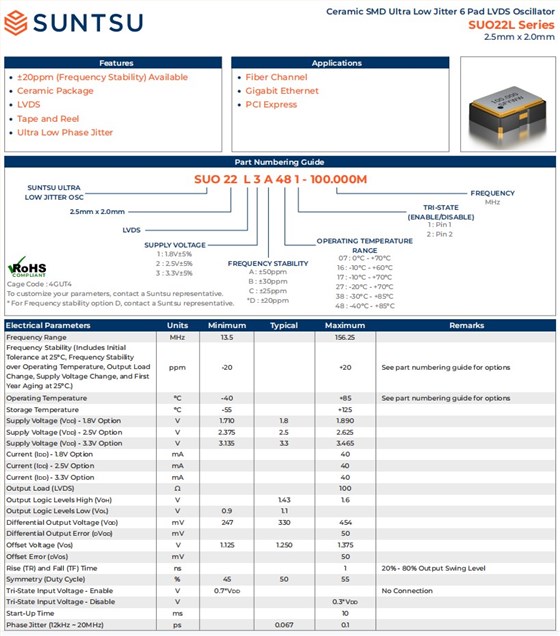

Suntsu松图晶振SUO22L系列,小体积晶振尺寸:2.5x2.0mm陶瓷封装,超低抖动LVDS差分晶体振荡器,六脚贴片晶振,石英晶振,石英晶体振荡器,提供20ppm(频率稳定性),工作温度范围:-40℃至+85℃,电源电压:1.8V/2.5V/3.3V,具有超小型,轻薄型,超低相位抖动,低功耗,低损耗,低耗能,低电平,低电源电压,满足低消耗电流的特点。应用于:光纤通道,千兆以太网,PCI Express,通讯设备,无线网络,蓝牙晶振,物联网,GPS定位系统,6G路由器,交换机,10G以太网及各种频率控制设备上。

SUO22L


6G路由器应用晶振SUO22L3A481-100.000M超低相位抖动振荡器

差分晶振有不同的输出信号,LV-PECL,LVDS,HCSL,是差分晶振通用的输出信号。一般为六脚晶振,能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰(EMI)是高度免疫的.实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性,具有高性能,低功耗,低噪声,低抖动,低损耗等特点.被广泛用于通讯设备,机顶盒,光端机,安防设备及各种频率控制设备上.

差分晶振一般为六脚石英贴片晶振,工作温度范围-40℃至+85℃,差分晶振的频率相对都比较高,比如从50MHz起可以做到700MHz或者更低和更高频率,且任意频率精确到个位小数点后六位。电源电压能够做到2.5V-3.3V之间。例如:2.25V、2.5V 、3.0V、3.3V、3.6V可任意选择应用。常见的封装尺寸有7050(7.0x5.0mm)、5032(5.0x3.2mm)、3225(3.2x2.5mm),更小封装可达到2520(2.5x2.0mm),常用的输出方式主要有LVPECL和LVDS两种。

石英晶体振荡器 包装尺寸 输出 工作温度
SQG22L2A071-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0℃ - +70℃
SQG22L2A072-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0℃ - +70℃
SQG22L2A161-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +60℃
SQG22L2A162-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +60℃
SQG22L2A171-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +70℃
SQG22L2A172-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +70℃
SQG22L2A271-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20℃ - +70℃
SQG22L2A272-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20℃ - +70℃
SQG22L2A381-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30℃ - +85℃
SQG22L2A382-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30℃ - +85℃
SQG22L2A481-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40℃ - +85℃
SQG22L2A482-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40℃ - +85℃
SQG22L2B071-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0℃ - +70℃
SQG22L2B072-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0℃ - +70℃
SQG22L2B161-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +60℃
SQG22L2B162-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +60℃
SQG22L2B171-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +70℃
SQG22L2B172-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +70℃
SQG22L2B271-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20℃ - +70℃
SQG22L2B272-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20℃ - +70℃
SQG22L2B381-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30℃ - +85℃
SQG22L2B382-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30℃ - +85℃
SQG22L2B481-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40℃ - +85℃
SQG22L2B482-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40℃ - +85℃
SQG22L2C071-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0℃ - +70℃
SQG22L2C072-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0℃ - +70℃
SQG22L2C161-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 石英晶振
SQG22L2C162-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10℃ - +60℃
SQG22L2C171-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +70°C
SQG22L2C172-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +70°C
SQG22L2C271-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20°C - +70°C
SQG22L2C272-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20°C - +70°C
SQG22L2C381-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30°C - +85°C
SQG22L2C382-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30°C - +85°C
SQG22L2C481-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40°C - +85°C
SQG22L2C482-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40°C - +85°C
SQG22L3A071-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0°C - +70°C
SQG22L3A072-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0°C - +70°C
SQG22L3A161-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +60°C
SQG22L3A162-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +60°C
SQG22L3A171-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +70°C
SQG22L3A172-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +70°C
SQG22L3A271-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20°C - +70°C
SQG22L3A272-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20°C - +70°C
SQG22L3A381-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30°C - +85°C
SQG22L3A382-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30°C - +85°C
SQG22L3A481-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40°C - +85°C
SQG22L3A482-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -40°C - +85°C
SQG22L3B071-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0°C - +70°C
SQG22L3B072-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS 0°C - +70°C
SQG22L3B161-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +60°C
SQG22L3B162-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +60°C
SQG22L3B171-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +70°C
SQG22L3B172-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -10°C - +70°C
SQG22L3B271-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20°C - +70°C
SQG22L3B272-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -20°C - +70°C
SQG22L3B381-8.000M-1500.000M 2.5X2.0 CERAMIC SMD (6 PAD) OSCILLATOR LVDS -30°C - +85°C
6G路由器应用晶振SUO22L3A481-100.000M超低相位抖动振荡器

Suntsu是一家专注于中端市场的电子产品制造商和经销商。我们的产品专长包括频率控制、互连、机电、天线和PCB。我们通过库存管理计划帮助客户制造更好的产品,节省时间、金钱,并改善现金流/交付周期。
