Q24,0-JXS21-10-10/10-FU-WA-LF,2016贴片无源晶振,Jauch欧美晶振

Q24,0-JXS21-10-10/10-FU-WA-LF,2016贴片无源晶振,Jauch欧美晶振

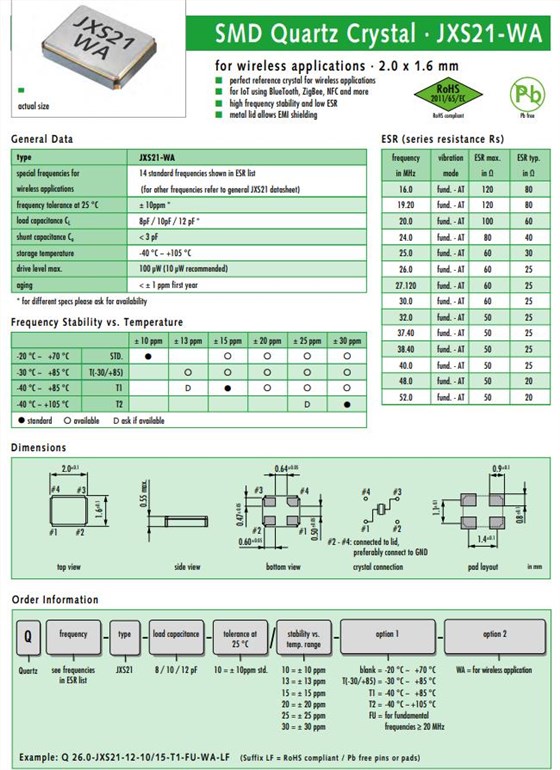

Jauch欧美晶振Q24,0-JXS21-10-10/10-FU-WA-LF,2016贴片进口石英晶振,参数配置优异,是欧美射频方案热门料号.封装规格2.0×1.6×0.55mm,四脚贴片结构,兼容市面主流SMT贴片机.额定频率24.000MHz,负载电容10pF,常温公差±10ppm,全温稳定度±10ppm,ESR最大80Ω,工作温度区间-20℃~+70℃,编带包装,满足自动化生产,RoHS无铅环保.基波无源振荡,相位噪声表现出色.±10ppm高精度等级,优于普通消费级晶振,满足射频无线模块对时钟精度的要求.兼具微型体积,高精度,低相位噪声优势,是物联网无线模组,便携射频设备优选的Jauch欧美无源晶振.

Q24,0-JXS21-10-10/10-FU-WA-LF,2016贴片无源晶振,Jauch欧美晶振

品牌	Jauch
编码	Q 24,0-JXS21-10-10/10-FU-WA-LF
型号	JXS21网络通讯设备晶振
频率	24M
精度	±10ppm
负载	10PF

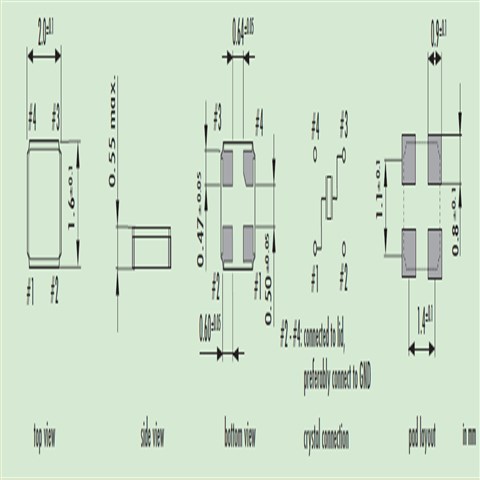

尺寸	2016
工作温度	−20℃ ～ +70℃

Q24,0-JXS21-10-10/10-FU-WA-LF,2016贴片无源晶振,Jauch欧美晶振
