8Y-32.000MAAV-T,TXC,32MHz,2016,-20~70℃

产品简介

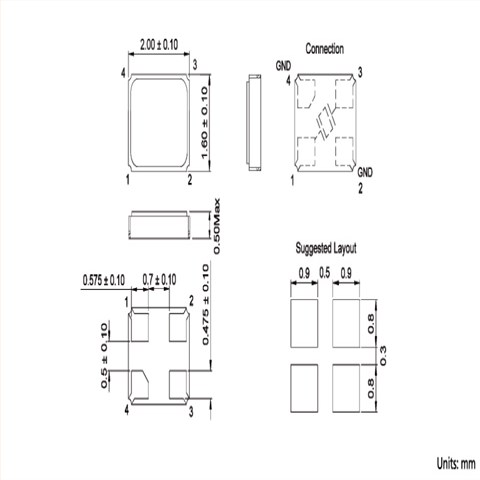

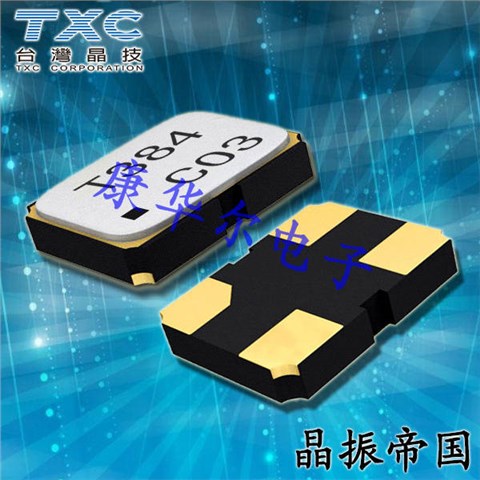

8Y-32.000MAAV-T,TXC,32MHz,2016,-20~70℃,台湾晶技晶振公司,频率范围：16MHz至66MHz，陶瓷SMD封装密封，密封外部尺寸（mm）L：2.0 x W：1.6 x H：0.5， RoHS兼容且无Pb，蓝牙无线网络，微处理器，移动电话，电脑，调制解调器,音频、视频消费产品

产品详情

8Y-32.000MAAV-T,TXC,32MHz,2016,-20~70℃,台湾晶技晶振公司,频率范围：16MHz至66MHz，陶瓷SMD封装密封，密封外部尺寸（mm）L：2.0 x W：1.6 x H：0.5， RoHS兼容且无Pb，蓝牙无线网络，微处理器，移动电话，电脑，调制解调器,音频、视频消费产品

8Y-32.000MAAV-T,TXC,32MHz,2016,-20~70℃

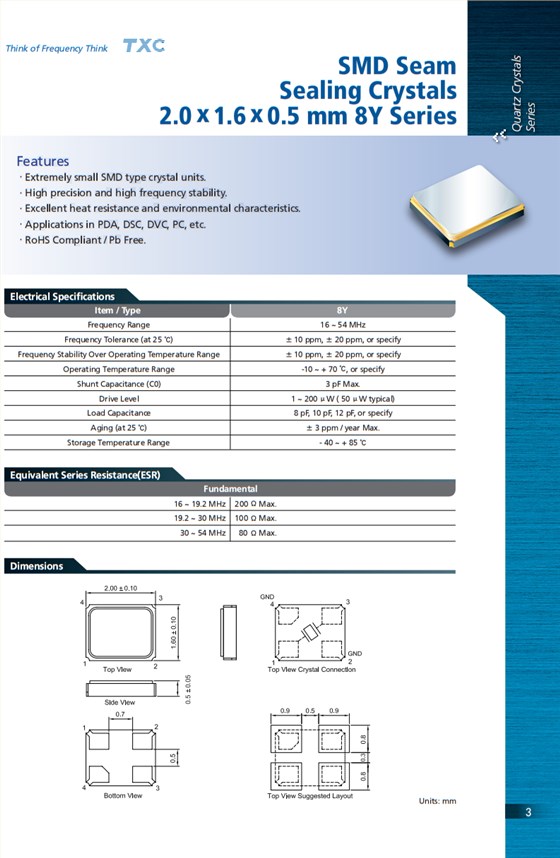

项目		8Y	Conditions
频率范围	F0	16MHz ~ 66MHz
频率容差	Ftol	±30ppm, ±20ppm, ±10ppm	at 25°C
工作温度范围内的频率偏差度	Fstab	±30 ppm	-20°C ~ +70°C
		±20 ppm
		± 10 ppm
		± 10 ppm	-30°C ~ +85°C
		±30 ppm	-40°C ~ +85°C
		±20 ppm	-40°C ~ +85°C
		±60 ppm	-40°C ~ +125°C
工作温度范围	TOTR	-20°C ~ +70°C
		-40°C ~ +85°C
		-40°C ~ +125°C
并联电容	C0	3pF Max.
驱动电平	DL	1 ~ 200μW (50μW Typ.)
负载电容	CL	6pF, 8pF, 10pF, 12pF
老化	Faging	±3 ppm Max.	at 25°C ± 3°C,first year
储存温度	TSTR	-55°C ~ +125°C

8Y-32.000MAAV-T,TXC,32MHz,2016,-20~70℃

TXC原厂编码	生产厂家	型号	系列	频率	频率稳定度	工作温度
8Y-16.000MAAV-T	TXC Crystal	8Y	MHz Crystal	16MHz	±30ppm	-20°C ~ 70°C
8Y-16.000MAAV-T	TXC Crystal	8Y	MHz Crystal	16MHz	±30ppm	-20°C ~ 70°C
8Y-16.000MAAV-T	TXC Crystal	8Y	MHz Crystal	16MHz	±30ppm	-20°C ~ 70°C
8Y-24.000MAAJ-T	TXC Crystal	8Y	MHz Crystal	24MHz	±30ppm	-20°C ~ 70°C
8Y-24.000MAAJ-T	TXC Crystal	8Y	MHz Crystal	24MHz	±30ppm	-20°C ~ 70°C
8Y-24.000MAAJ-T	TXC Crystal	8Y	MHz Crystal	24MHz	±30ppm	-20°C ~ 70°C
8Y-25.000MAAJ-T	TXC Crystal	8Y	MHz Crystal	25MHz	±30ppm	-20°C ~ 70°C
8Y-25.000MAAJ-T	TXC Crystal	8Y	MHz Crystal	25MHz	±30ppm	-20°C ~ 70°C
8Y-25.000MAAJ-T	TXC Crystal	8Y	MHz Crystal	25MHz	±30ppm	-20°C ~ 70°C
8Y-27.120MEEQ-T	TXC Crystal	8Y	MHz Crystal	27.12MHz	±10ppm	-20°C ~ 70°C
8Y-27.120MEEQ-T	TXC Crystal	8Y	MHz Crystal	27.12MHz	±10ppm	-20°C ~ 70°C
8Y-27.120MEEQ-T	TXC Crystal	8Y	MHz Crystal	27.12MHz	±10ppm	-20°C ~ 70°C
8Y-32.000MAAV-T	TXC Crystal	8Y	MHz Crystal	32MHz	±30ppm	-20°C ~ 70°C
8Y-32.000MAAV-T	TXC Crystal	8Y	MHz Crystal	32MHz	±30ppm	-20°C ~ 70°C
8Y-32.000MAAV-T	TXC Crystal	8Y	MHz Crystal	32MHz	±30ppm	-20°C ~ 70°C
8Y-32.000MAAE-T	TXC Crystal	8Y	MHz Crystal	32MHz	±30ppm	-20°C ~ 70°C
8Y-32.000MAAE-T	TXC Crystal	8Y	MHz Crystal	32MHz	±30ppm	-20°C ~ 70°C
8Y-32.000MAAE-T	TXC Crystal	8Y	MHz Crystal	32MHz	±30ppm	-20°C ~ 70°C
8Y-25.000MEEQ-T	TXC Crystal	8Y	MHz Crystal	25MHz	±10ppm	-20°C ~ 70°C
8Y-25.000MEEQ-T	TXC Crystal	8Y	MHz Crystal	25MHz	±10ppm	-20°C ~ 70°C
8Y-25.000MEEQ-T	TXC Crystal	8Y	MHz Crystal	25MHz	±10ppm	-20°C ~ 70°C
8Y-27.120MAAE-T	TXC Crystal	8Y	MHz Crystal	27.12MHz	±30ppm	-20°C ~ 70°C
8Y-27.120MAAE-T	TXC Crystal	8Y	MHz Crystal	27.12MHz	±30ppm	-20°C ~ 70°C
