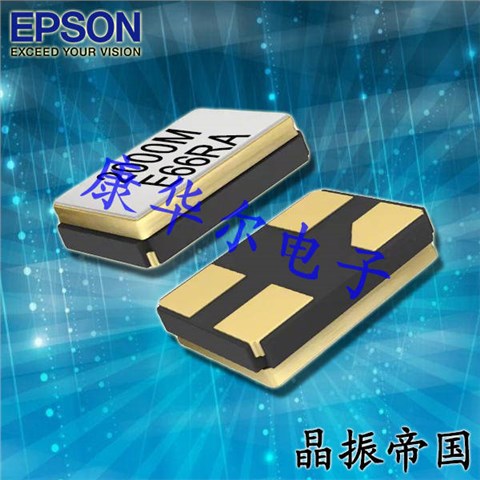

FA-238A25.00M-80FFYYH50RE,EPSON无源晶振,车载多媒体晶振
FA-238A25.00M-80FFYYH50RE是EPSON爱普生推出的无源贴片晶振,专为车载多媒体设备设计.标称频率25MHz,频率精度优异,温漂控制出色,可在车载复杂温变环境下稳定输出时钟信号.产品符合车载控制器晶振严苛标准,抗振动,抗冲击,抗电磁干扰能力强,适配车辆行驶中的颠簸与电磁杂波环境.小型化贴片封装适配车载设备紧凑的内部空间,支持自动化贴装生产.电气参数匹配车载影音,车机中控,车载音响等主流电路,运行功耗低,性能持久稳定,能有效保障多媒体系统音视频播放流畅,功能运行正常,是车载电子常用的优质时钟元件.
FA-238A25.00M-80FFYYH50RE,EPSON无源晶振,车载多媒体晶振
| 品牌 | EPSON |
| 编码 | FA-238A25.00M-80FFYYH50RE |
| 型号 | FA-238A晶振 |
| 频率 | 25M |
| 精度 | ±15ppm |
| 负载 | 8pF |

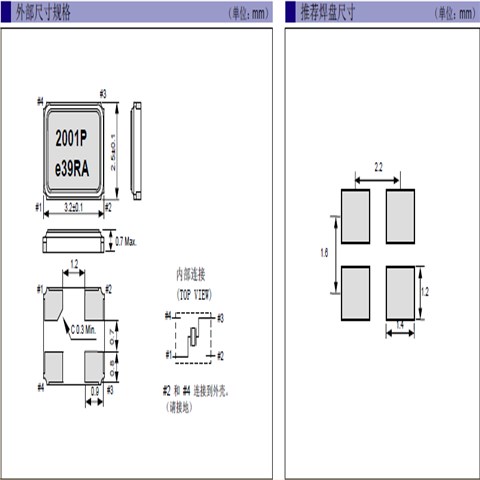

| 尺寸 | 3.2×2.5×0.8mm |
| 工作温度 | -40℃~125℃ |
FA-238A25.00M-80FFYYH50RE,EPSON无源晶振,车载多媒体晶振
更多相关晶振参考
| 编码 | 品牌 | 型号 | 尺寸 | 频率 | 负载 |
| 12.87000 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 12.5pF |
| 12.87001 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 9pF |
| 12.87002 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 7pF |
| 12.87034 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 4pF |
| 12.87080 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87081 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87083 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87086 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87090 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87095 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87105 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87107 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87109 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12pF |
| 12.87110 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87111 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87112 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87113 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87114 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87115 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87116 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87118 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87119 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87120 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87121 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87123 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87126 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87127 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87128 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87129 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87130 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87131 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87132 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87133 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87134 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87135 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87136 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87137 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 9pF |
| 12.87138 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87139 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87143 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87144 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87145 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768KHz | 12.5pF |
| 12.87146 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87147 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87148 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87149 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87150 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87151 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87152 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87153 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87155 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87157 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87158 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87159 | GEYER | KX-327NHT | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87160 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87161 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87163 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 7pF |
| 12.87164 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87165 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87166 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87167 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87168 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87169 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87170 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87171 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87172 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 9pF |
| 12.87173 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 9pF |
| 12.87174 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87175 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87176 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 7pF |
| 12.87177 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 12.5pF |
| 12.87178 | GEYER | KX-327FT | 1.6×1.0×0.5mm | 32.768kHz | 4pF |
| 12.87180 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87181 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87182 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87183 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87186 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87187 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 6pF |
| 12.87188 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
