EA5070PA20-8.000M,7050mm,8MHz,Ecliptek石英晶体谐振器，Ecliptek日蚀晶振，美国进口晶振，型号：EA5070，编码为：EA5070PA20-8.000M，频率：8MHz，负载：20pF，频率稳定性：±15ppm，频率容差：±10ppm，工作温度：-20°C ~+70°C，是一款小体积晶振尺寸：7.0x5.0mm晶振，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，无铅环保晶振，石英晶振，具有超小型，轻薄型，高性能，高品质等特点。应用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，汽车电子，数码电子，安防设备等应用。
EA5070PA20-8.000M,7050mm,8MHz,Ecliptek石英晶体谐振器,参数表
| 品牌 | Ecliptek日蚀晶振 |
| 型号 |
EA5070 |
| 物料编码 | EA5070PA20-8.000M |
| 频率 | 8.000MHz |
| 频率稳定性 | ±15ppm |
| 频率容差 | ±10ppm |
| 负载电容 | 20pF |
| 工作温度 | -20℃至+70℃ |
| 尺寸 |
7.0x5.0mm |

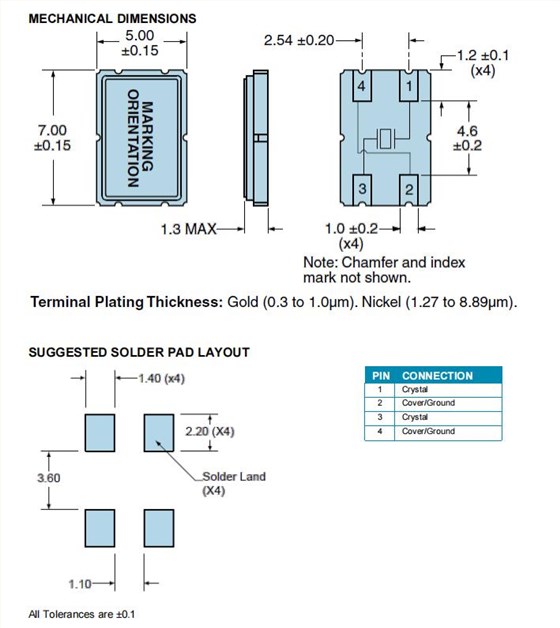

EA5070PA20-8.000M,7050mm,8MHz,Ecliptek石英晶体谐振器,尺寸图
| 产品编码 | 晶振厂家 | 型号 | 频率 | 负载电容 |
| EA5070CA12-24.000M TR | Ecliptek晶振 | EA5070 | 24 MHz | 12 pF |
| EA5070CA18-20.000M TR | Ecliptek晶振 | EA5070 | 20 MHz | 18 pF |
| EA5070CAS-8.000M TR | Ecliptek晶振 | EA5070 | 8 MHz | 8 pF |
| EA5070FA16-22.5792M TR | Ecliptek晶振 | EA5070 | 22.5792 MHz | 16 pF |
| EA5070FA18-10.000M | Ecliptek晶振 | EA5070 | 10 MHz | 18 pF |
| EA5070FA18-14.31818M | Ecliptek晶振 | EA5070 | 14.31818 MHz | 18 pF |
| EA5070FA18-24.000M TR | Ecliptek晶振 | EA5070 | 24 MHz | 18 pF |
| EA5070FA18-25.000M TR | Ecliptek晶振 | EA5070 | 25 MHz | 18 pF |
| EA5070FA18-27.000M TR | Ecliptek晶振 | EA5070 | 27 MHz | 18 pF |
| EA5070FA20-7.3728M | Ecliptek晶振 | EA5070 | 7.3728 MHz | 20 pF |
| EA5070GA18-25.000625M | Ecliptek晶振 | EA5070 | 25.000625 MHz | 18 pF |
| EA5070GA18-25.000625M TR | Ecliptek晶振 | EA5070 | 25.000625 MHz | 18 pF |
| EA5070GA20-7.3728M | Ecliptek晶振 | EA5070 | 7.3728 MHz | 20 pF |
| EA5070JA18-25.000625M TR | Ecliptek晶振 | EA5070 | 25.000625 MHz | 18 pF |
| EA5070JA20-14.31818M TR | Ecliptek晶振 | EA5070 | 14.31818 MHz | 20 pF |
| EA5070JA20-6.000M TR | Ecliptek晶振 | EA5070 | 6 MHz | 20 pF |
| EA5070PA20-8.000M | Ecliptek晶振 | EA5070 | 8 MHz | 20 pF |
