ECS-3215MV-327KE系列HCMOS振荡器非常适合智能电表应用

2023-02-13 11:49:10

ECS Inc国际晶振集团符合世界各地对于石英晶体,贴片晶振,有源晶振,晶体振荡器等产品要求的所有标准.质量符合国际标准体现了在商业实践和产品方面的卓越品质.ECS Inc晶振不仅要让客户满意并且要超越客户所期望的.激励鼓励全体员工通过激发创造力、主动性和责任感来促进大家做更有意义的事.通过持续改进集成业务流程,以实现系统的有效性、效率和灵活性.

ECS晶振ECS-3215MV-327KE系列HCMOS振荡器采用3.2mmx1.5mmx0.9mm陶瓷封装,提供MultiVoltTM功能。这些电子元件提供32.768kHz的频率,频率稳定度为50ppm,在-40°C至+85°C的标准工业工作温度下具有1.3A的低功耗晶振,作为MultiVoltTM系列振荡器的一部分,ECS-3215MV-327KE设计采用1.6V至3.6V的可变电源电压或标准1.8V、2.5V、3.0V或3.3V电源供电。该器件针对各种无补偿晶体振荡器提供更高的稳定性,是智能电表、可穿戴设备、工业和物联网应用的理想之选。

ECS-3215MV-327KE系列HCMOS振荡器非常适合智能电表应用

原厂代码 品牌 有源晶体 频率 工作温度
ECS-VXO-73-32.768-TR ECS Crystal ECS-VXO-73 32.768MHz -10°C ~ 70°C
ECS-VXO-73-32.768-TR ECS Crystal ECS-VXO-73 32.768MHz -10°C ~ 70°C
ECS-VXO-73-32.768-TR ECS Crystal ECS-VXO-73 32.768MHz -10°C ~ 70°C
ECS-327KE-TR ECS Crystal ECS-327KE 32.768kHz -40°C ~ 85°C
ECS-327KE-TR ECS Crystal ECS-327KE 32.768kHz -40°C ~ 85°C
ECS-327KE-TR ECS Crystal ECS-327KE 32.768kHz -40°C ~ 85°C
ECS-327SMO-TR ECS Crystal ECS-327SMO 32.768kHz -40°C ~ 85°C
ECS-327SMO-TR ECS Crystal ECS-327SMO 32.768kHz -40°C ~ 85°C
ECS-327SMO-TR ECS Crystal ECS-327SMO 32.768kHz -40°C ~ 85°C
ECS-8FMX-327.6-TR ECS Crystal ECS-8FX 32.768MHz -40°C ~ 85°C
ECX-H25BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H25CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-H35BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H35CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-H23CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-H27BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H27CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-H37BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H37CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-L25BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L25CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-L35BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L35CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-P25BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P25CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-P35BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P35CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-H33BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H33CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-L23BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L23CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-L33BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L33CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-P23BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P23CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-P33BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P33CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-L27BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L27CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-L37BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L37CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-P27BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P27CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-P37BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P37CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-H22BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H22CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-H32BN-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -40°C ~ 85°C
ECX-H32CM-32.768 ECS Crystal ECSpressCON™ ECX-H 32.768MHz -20°C ~ 70°C
ECX-L22BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L22CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-L32BN-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -40°C ~ 85°C
ECX-L32CM-32.768 ECS Crystal ECSpressCON™ ECX-L 32.768MHz -20°C ~ 70°C
ECX-P22BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P22CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECX-P32BN-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -40°C ~ 85°C
ECX-P32CM-32.768 ECS Crystal ECSpressCON™ ECX-P 32.768MHz -20°C ~ 70°C
ECS-327KO-TR ECS Crystal ECS-327KO 32.768k -40°C ~ 85°C
ECS-327KO-TR ECS Crystal ECS-327KO 32.768kHz -40°C ~ 85°C
ECS-327KO-TR ECS Crystal ECS-327KO 32.768kHz -40°C ~ 85°C
ECS-3215MV-327KE系列HCMOS振荡器非常适合智能电表应用

特点:
小体积尺寸:3.2x1.5x0.9mm四脚贴片晶振
频率:32.768KHz石英晶体振荡器
稳定性:50ppm @-40℃至+85℃
温度范围:-40℃至+85℃
电流消耗:1.3µA
多电压功能,采用+1.8V、+2.5V、+3.0V或+3.3V或1.6V ~ 3.6V电源
HCMOS输出
符合RoHS和REACH标准
应用于:物联网,产业的,无线的,衣服,智能电表,医疗(非维持生命)

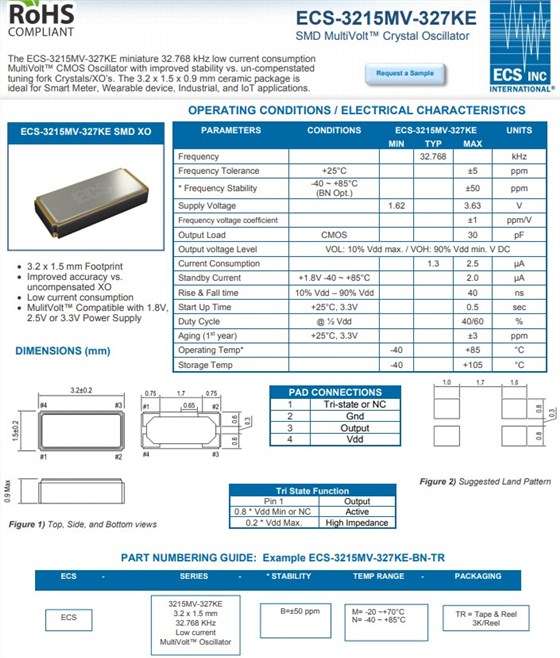

ECS-3215MV-327KE
