低电流振荡器ECS-2520MVLC-250-BN-TR非常适合LoRaWAN模块应用

2022-10-22 11:17:29 康华尔电子

ECS-2520MVLC紧凑型低电流 MultiVolt™ 表面贴装振荡器具有扩展的输出频率范围,适用于各种时钟应用。

ECS-2520MVLC低电流振荡器在-40至+85范围内具有±50ppm的稳定性等级。有源晶体ECS-2520MVLC采用2.5mmx2.0mmx0.8mm陶瓷封装,四脚贴片晶振,具有MultiVoltTM功能,兼容1.8V、2.5V、3.0V或3.3V电源,并提供多种输出频率从:1MHz至75MHz。该器件是一款紧凑、高性能、低电流且具有成本竞争力的石英晶体振荡器,非常适合消费、工业和通信领域的便携式和空间受限应用。

ECS-2520MVLC,编码ECS-2520MVLC-250-BN-TR,是一款小型SMD低电流CMOS振荡器,MultiVolt能力为1.6至3.6V,采用2.5x2.0x0.8mm陶瓷封装,非常适合LoRaWAN、低功耗/便携式、工业和物联网应用。

低电流振荡器ECS-2520MVLC-250-BN-TR非常适合LoRaWAN模块应用

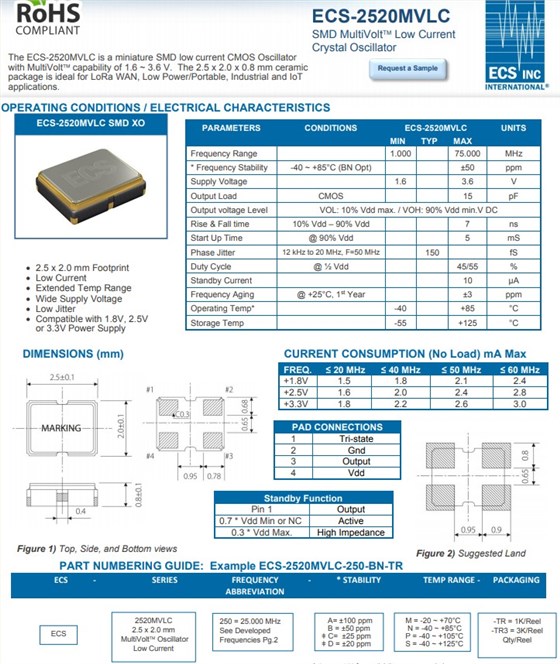

ECS-2520MVLC

原厂代码 品牌 Series型号 频率 工作温度
ECS-2520S33-100-EN-TR ECScrystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S33-120-EN-TR ECScrystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S33-160-EN-TR ECScrystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S33-200-EN-TR ECScrystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S33-240-EN-TR ECScrystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S33-250-EN-TR ECScrystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S33-260-EN-TR ECScrystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S33-320-EN-TR ECScrystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S33-400-EN-TR ECScrystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S33-440-EN-TR ECScrystal ECS-2520S 44MHz -40°C ~ 85°C
ECS-2520S33-500-EN-TR ECScrystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S30-050-EN-TR ECScrystal ECS-2520S 5MHz -40°C ~ 85°C
ECS-2520S30-100-EN-TR ECS晶振 ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S30-120-EN-TR ECScrystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S30-160-EN-TR ECScrystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S30-200-EN-TR ECScrystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S30-240-EN-TR ECScrystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S30-250-EN-TR ECScrystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S30-260-EN-TR ECScrystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S30-320-EN-TR ECScrystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S30-400-EN-TR ECScrystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S30-440-EN-TR ECScrystal ECS-2520S 44MHz -40°C ~ 85°C
ECS-2520S30-500-EN-TR ECScrystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S25-050-EN-TR ECScrystal ECS-2520S 5MHz -40°C ~ 85°C
ECS-2520S25-100-EN-TR ECScrystal ECS-2520S 10MHz -40°C ~ 85°C
ECS-2520S25-120-EN-TR ECScrystal ECS-2520S 12MHz -40°C ~ 85°C
ECS-2520S25-160-EN-TR ECScrystal ECS-2520S 16MHz -40°C ~ 85°C
ECS-2520S25-200-EN-TR ECScrystal ECS-2520S 20MHz -40°C ~ 85°C
ECS-2520S25-240-EN-TR ECScrystal ECS-2520S 24MHz -40°C ~ 85°C
ECS-2520S25-250-EN-TR ECScrystal ECS-2520S 25MHz -40°C ~ 85°C
ECS-2520S25-260-EN-TR ECScrystal ECS-2520S 26MHz -40°C ~ 85°C
ECS-2520S25-320-EN-TR ECScrystal ECS-2520S 32MHz -40°C ~ 85°C
ECS-2520S25-400-EN-TR ECScrystal ECS-2520S 40MHz -40°C ~ 85°C
ECS-2520S25-440-EN-TR ECScrystal ECS-2520S 44MHz -40°C ~ 85°C
ECS-2520S25-500-EN-TR ECScrystal ECS-2520S 50MHz -40°C ~ 85°C
ECS-2520S18-050-EN-TR ECScrystal ECS-2520S 5MHz -40°C ~ 85°C
ECS-2520S18-100-EN-TR ECScrystal ECS-2520S 10MHz -40°C ~ 85°C

低电流振荡器ECS-2520MVLC-250-BN-TR非常适合LoRaWAN模块应用

特征:
小体积晶振尺寸:2.5x2.0x0.8mm占用空间
扩展温度范围
MultiVolt TM与 1.8V、2.5V、3.0V或3.3V电源兼容
低抖动:150 fS(典型值)
低电流消耗:1.8V、20MHz 时最大1.5 mA(无负载)
待机电流:10µA
稳定性±50ppm at -40℃至+85℃
符合RoHS 3和REACH标准

应用:物联网,存储设备,导航,医疗(非生命维持),移动设备,工业的,无线设备,网络摄像机
