X3AEEJNANF-50.000000-50MHz--8PF--40~105℃-1612

产品简介

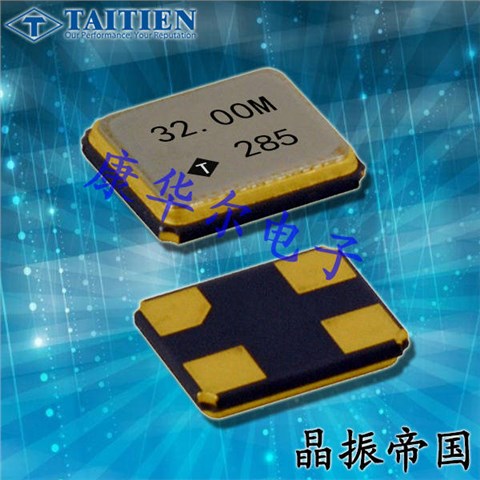

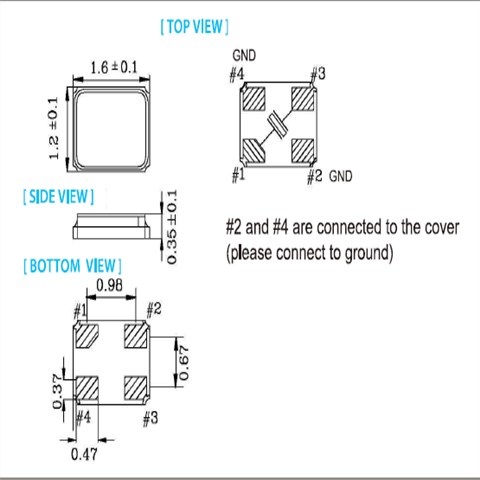

X3AEEJNANF-50.000000-50MHz--8PF--40~105℃-1612,台湾TATIEN晶振公司,典型的1.65 x 1.25 x 0.3 mm超薄陶瓷包装。8 mm宽的胶带和卷轴包装，用于自动组装。紧密公差10 ppm可用。蓝牙，移动电话，无线局域网。办公自动化。音频和视频。

产品详情

X3AEEJNANF-50.000000-50MHz--8PF--40~105℃-1612,台湾TATIEN晶振公司,典型的1.65 x 1.25 x 0.3 mm超薄陶瓷包装。8 mm宽的胶带和卷轴包装，用于自动组装。紧密公差10 ppm可用。蓝牙，移动电话，无线局域网。办公自动化。音频和视频。

X3AEEJNANF-50.000000-50MHz--8PF--40~105℃-1612

参数

最小值

典型值

最大值

单位

工作温度

--40

125

标准频率

26，40

MHz

激励电平

200

分流电容（C0）

3.0

绝缘电阻

500M Q@ DC100V

老化

±1.0 to ±3.0

ppm/year

X3AEEJNANF-50.000000-50MHz--8PF--40~105℃-1612

Taitien原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容
X3AEEJNANF-27.000000	Taitien	X3	27MHz	±30ppm	±30ppm	8pF
X3AEEJNANF-27.120000	Taitien	X3	27.12MHz	±30ppm	±30ppm	8pF
X3AEEJNANF-30.000000	Taitien	X3	30MHz	±30ppm	±30ppm	8pF
X3AEEJNANF-38.400000	Taitien	X3	38.4MHz	±30ppm	±30ppm	8pF
X3AEELNANF-26.000000	Taitien	X3	26MHz	±30ppm	±30ppm	8pF
X3AEELNANF-27.000000	Taitien	X3	27MHz	±30ppm	±30ppm	8pF
X3AEELNANF-27.120000	Taitien	X3	27.12MHz	±30ppm	±30ppm	8pF
X3AEELNANF-30.000000	Taitien	X3	30MHz	±30ppm	±30ppm	8pF
X3AEELNANF-38.400000	Taitien	X3	38.4MHz	±30ppm	±30ppm	8pF
X3AEELNANF-40.000000	Taitien	X3	40MHz	±30ppm	±30ppm	8pF
X3AEELNANF-48.000000	Taitien	X3	48MHz	±30ppm	±30ppm	8pF
X3LEECNANF-26.000000	Taitien	X3	26MHz	±30ppm	±30ppm	6pF
X3LEECNANF-27.000000	Taitien	X3	27MHz	±30ppm	±30ppm	6pF
X3LEECNANF-27.120000	Taitien	X3	27.12MHz	±30ppm	±30ppm	6pF
X3LEECNANF-30.000000	Taitien	X3	30MHz	±30ppm	±30ppm	6pF
X3LEECNANF-38.400000	Taitien	X3	38.4MHz	±30ppm	±30ppm	6pF
X3LEECNANF-40.000000	Taitien	X3	40MHz	±30ppm	±30ppm	6pF
X3LEECNANF-48.000000	Taitien	X3	48MHz	±30ppm	±30ppm	6pF
X3LEEJNANF-27.000000	Taitien	X3	27MHz	±30ppm	±30ppm	6pF
X3LEEJNANF-27.120000	Taitien	X3	27.12MHz	±30ppm	±30ppm	6pF
X3LEEJNANF-30.000000	Taitien	X3	30MHz	±30ppm	±30ppm	6pF
X3LEEJNANF-38.400000	Taitien	X3	38.4MHz	±30ppm	±30ppm	6pF
X3LEEJNANF-48.000000	Taitien	X3	48MHz	±30ppm	±30ppm	6pF
