爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振

爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振，日本进口晶振，EPSON爱普生株式会社，型号为：SG2520VGN，编码为：X1G0059010003，频率为：156.250000 MHz，小体积晶振尺寸为2.5x2.0x0.84mm，六脚贴片晶振，LVDS输出差分晶体振荡器。6G将以指数级的方式增加网络通信流量。6G通信网络需要高速和宽带宽，同时最小化噪声。这将通过一个高频、低抖动的参考时钟来实现的通信设备，其中将使用小形式因素的光学模块。SG2016VGN是非常流行的SG3225VEN系列的下一代，提供相同的功能组合，由于使用内部设计的IC和改进的频率容忍性能。应用于：网络设备（路由器、交换机、光模块等），蓝牙晶振，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC。

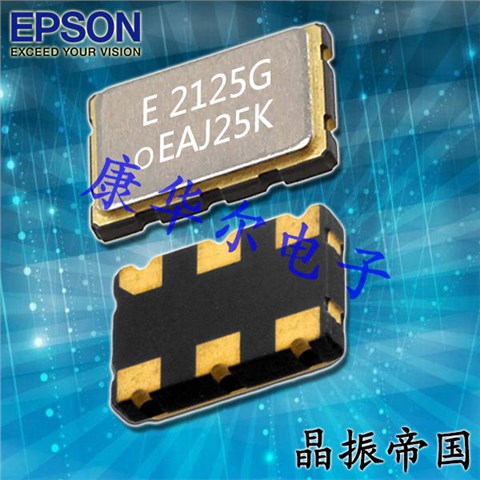

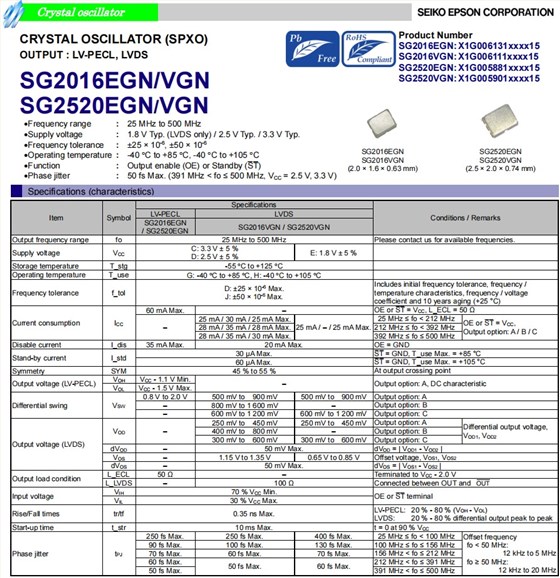

爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振，参数表

Item	Symbol	Specifications
		LV-PECL		LVDS		Conditions / Remarks
		SG2016EGN	SG2016VGN / SG2520VGN
		/ SG2520EGN
Output frequency range	fo	25 MHz to 500 MHz				Please contact us for available frequencies.
Supply voltage	VCC	C: 3.3 V ± 5 % D: 2.5 V ± 5 %			E: 1.8 V ± 5 %
Storage temperature	T_stg	-55℃to +125℃
Operating temperature	T_use	G: -40℃to +85℃, H: -40℃to +105℃
Frequency tolerance	f_tol	D: ±25 × 10-6 Max. J: ±50 × 10-6 Max.				Includes initial frequency tolerance, frequency /
						temperature characteristics, frequency / voltage coefficient and 10 years aging (+25℃)
Current consumption		60 mA Max.	–			OE or S?T?= VCC, L_ECL = 50 Ω
	ICC		25 mA / 30 mA / 25 mA Max.		25 mA / – / 25 mA Max.	25 MHz ≤ fo < 212 MHz	OE or S?T?= VCC, Output option: A / B / C
		–	28 mA / 35 mA / 28 mA Max.			212 MHz ≤ fo < 392 MHz
			28 mA / 35 mA / 30 mA Max.			392 MHz ≤ fo ≤ 500 MHz
Disable current	I_dis	35 mA Max.	20 mA Max.			OE = GND
Stand-by current	I_std	30 μA Max.				S?T?= GND, T_use Max. = +85℃
		60 μA Max.				S?T?= GND, T_use Max. = +105℃
Symmetry	SYM	45 % to 55 %				At output crossing point
Output voltage (LV-PECL)	VOH	VCC - 1.1 V Min.	–			Output option: A, DC characteristic
	VOL	VCC - 1.5 V Max.
Differential swing	VSW	0.8 V to 2.0 V	500 mV to900 mV		500 mV to900 mV	Output option: A
		–	800 mV to 1 600 mV		–	Output option: B
		–	600 mV to 1 200 mV		600 mV to 1 200 mV	Output option: C
	VOD		250 mV to450 mV		250 mV to450 mV	Output option: A	Differential output voltage, VOD1, VOD2
Output voltage (LVDS)		–	400 mV to800 mV		–	Output option: B
			300 mV to600 mV		300 mV to600 mV	Output option: C
	dVOD	–	50 mV Max.			dVOD = \| VOD1 - VOD2 \|
	VOS	–	1.15 V to 1.35 V		0.65 V to 0.85 V	Offset voltage, VOS1, VOS2
	dVOS	–	50 mV Max.			dVOS = \| VOS1 - VOS2 \|
Output load condition	L_ECL	50 Ω	–			Terminated to VCC - 2.0 V
	L_LVDS	–	100 Ω			Connected between OUT andOUT
Input voltage	VIH	70 % VCC Min.				OE or S?T?terminal
	VIL	30 % VCC Max.
Rise/Fall times	tr/tf	0.35 ns Max.				LV-PECL:20 % - 80 % (VOH - VOL)
						LVDS:20 % - 80 % differential output peak to peak
Start-up time	t_str	10 ms Max.				t = 0 at 90 % VCC
Phase jitter	tPJ	250 fs Max.	250 fs Max.		400 fs Max.	25 MHz ≤ fo < 100 MHz	Offset frequency
		90 fs Max.	100 fs Max.		130 fs Max.	100 MHz ≤ fo ≤ 156 MHz	fo < 50 MHz:
		70 fs Max.	60 fs Max.		70 fs Max.	156 MHz < fo ≤ 212 MHz	12 kHz to 5 MHz
		60 fs Max.	50 fs Max.		60 fs Max.	212 MHz < fo ≤ 391 MHz	fo ≥ 50 MHz:
		50 fs Max.				391 MHz < fo ≤ 500 MHz	12 kHz to 20 MHz

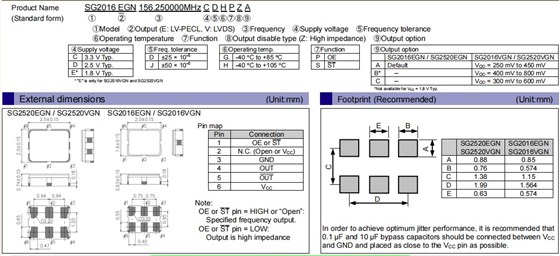

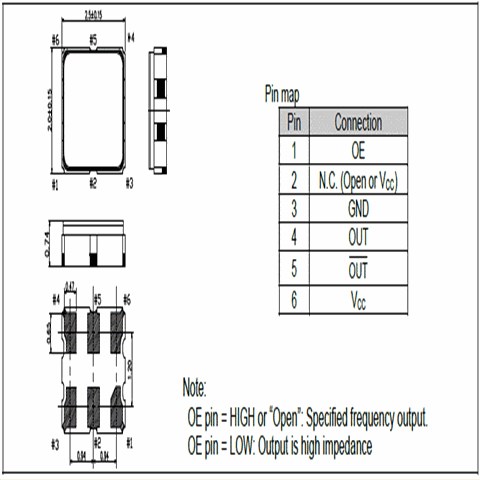

爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振，尺寸图

爱普生LVDS输出SPXO晶体振荡器SG2520VGN,X1G0059010003,高速转换器6G晶振

差分晶振有不同的输出信号,LV-PECL,LVDS,HCSL,是差分晶振通用的输出信号.一般为六脚石英贴片晶振,能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰（EMI）是高度免疫的.实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性,具有高性能,低功耗,低噪声,低抖动,低损耗等特点.被广泛用于通讯设备,机顶盒,光端机,安防设备及各种频率控制设备上.

石英晶体振荡器	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0059010001	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059010002	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059010003	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010004	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059010006	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010007	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059010008	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410001	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410002	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410003	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059410004	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410005	SG2520VHN	156.250000 MHz	爱普生晶振	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059410006	SG2520VHN	155.520000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410007	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410008	SG2520VHN	174.703000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410009	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410010	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410011	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410603	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410604	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410605	SG2520VHN	467.529297 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
