TFPM1P32K7680R,8038无源晶振,32.768kHz晶振

TFPM1P32K7680R,8038无源晶振,32.768kHz晶振

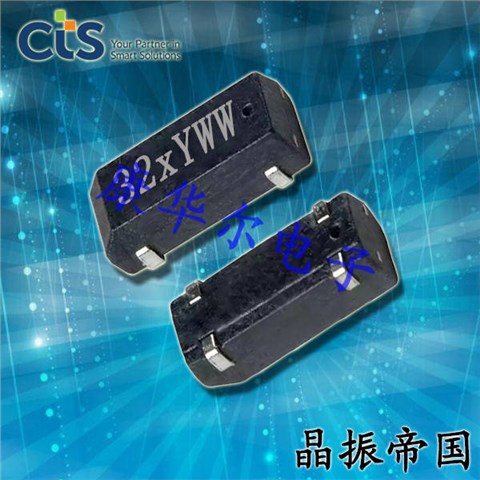

TFPM1P32K7680R是8038mm无源晶振,标称频率32.768kHz,专为低功耗微控制器LSE外部时钟开发.器件优化驱动电平适配特性,低驱动功率下稳定起振,有效降低整机待机功耗.封装尺寸8.0×3.8mm,占用PCB空间适中,负载电容12.5pF,兼容STM32等系列单片机时钟架构.温度漂移控制优良,长期老化率低,长时间运行不易产生计时偏差.适用于电池供电设备,包含燃气水表,便携监测设备,无线传感终端,智能手环,为各类低功耗物联网产品提供持续精准的实时时钟信号.

TFPM1P32K7680R,8038无源晶振,32.768kHz晶振

品牌	CTS-Frequency Controls
编码	TFPM1P32K7680R
型号	TFPM晶振
频率	32.768 kHz
精度	±10ppm
负载	12.5pF

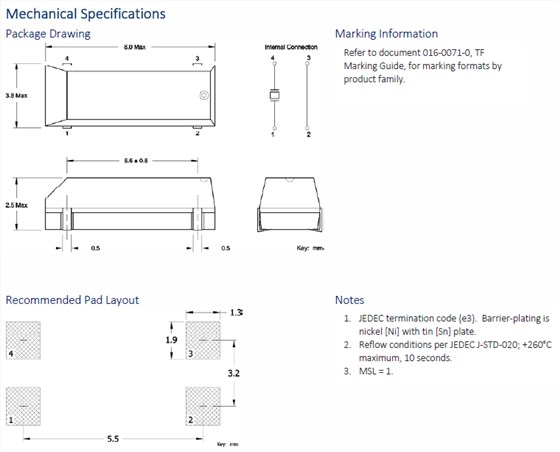

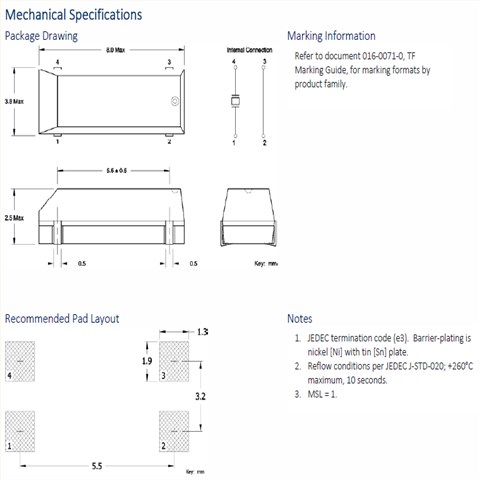

尺寸	8.00mm x 3.80mm
工作温度	-40℃~+85℃

TFPM1P32K7680R,8038无源晶振,32.768kHz晶振

更多相关晶振参考

编码	品牌	型号	尺寸	频率	负载
12.87000	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	12.5pF
12.87001	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	9pF
12.87002	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	7pF
12.87034	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	4pF
12.87080	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87081	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87083	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87086	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	6pF
12.87090	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87095	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87105	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87107	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87109	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12pF
12.87110	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87111	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87112	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87113	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87114	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87115	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87116	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87118	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87119	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87120	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87121	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87123	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87126	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87127	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87128	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87129	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87130	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87131	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87132	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87133	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87134	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87135	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87136	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87137	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	9pF
12.87138	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87139	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87143	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87144	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87145	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768KHz	12.5pF
12.87146	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87147	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87148	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87149	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87150	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87151	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	9pF
12.87152	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87153	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	7pF
12.87155	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87157	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87158	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87159	GEYER	KX-327NHT	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87160	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87161	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87163	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	7pF
12.87164	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87165	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87166	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87167	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87168	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87169	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87170	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87171	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87172	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	9pF
12.87173	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	9pF
12.87174	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87175	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87176	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	7pF
12.87177	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	12.5pF
12.87178	GEYER	KX-327FT	1.6×1.0×0.5mm	32.768kHz	4pF
12.87180	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87181	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87182	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87183	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87186	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87187	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	6pF
12.87188	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
