Q 52.0-JXS32-8-10/10-FU-WA-LF|52M|8PF|3225|-20~70℃.法国Jauch晶振公司,Jauch晶振,JXS32-WA晶振,3225晶振,平板电脑晶振,贴片晶振,无源晶振,石英晶振,无线网络设备晶振.接缝密封陶瓷/金属封装，扩展温度范围可用，高机械可靠性类型可用，用于汽车类型，见汽车数据表
Q 52.0-JXS32-8-10/10-FU-WA-LF|52M|8PF|3225|-20~70℃

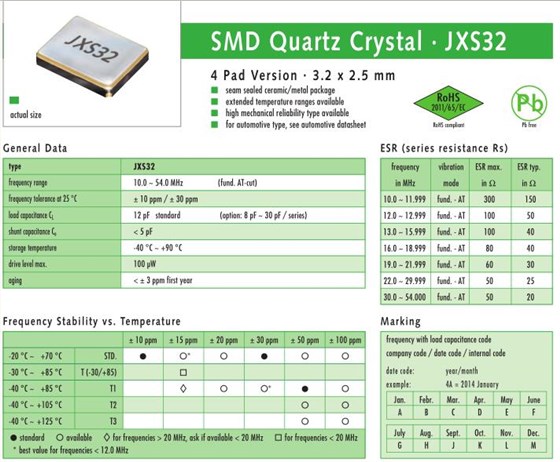

| type | JXS32 | ||||||||
| frequency range | 10.0 ~ 54.0 MHz(fund. AT-cut) | ||||||||
| frequency tolerance at 25 °C | ± 10 ppm / ± 30 ppm | ||||||||
| load capacitance CL | 12 pFstandard(option: 8 pF ~ 30 pF / series) | ||||||||
| shunt capacitance Co | < 5 pF | ||||||||
| storage temperature | -40 °C ~ +90 °C | ||||||||
| drive level max. | 100 µW | ||||||||
| aging | < ± 3 ppm first year | ||||||||
Q 52.0-JXS32-8-10/10-FU-WA-LF|52M|8PF|3225|-20~70℃
