Q 19.2-JXS21-10-10/10-WA-LF 19.2MHz 10PF 10PPM -20~70℃

产品详情

Jauch晶振JXS21-WA,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振.法国Jauch晶振公司，Jauch晶振,JXS21-WA晶振,4脚石英晶体2.0 x 1.6毫米，± 10 ppm型可用，EMI屏蔽可通过接地盖，回流焊温度： 260°C max。陶瓷/金属包装

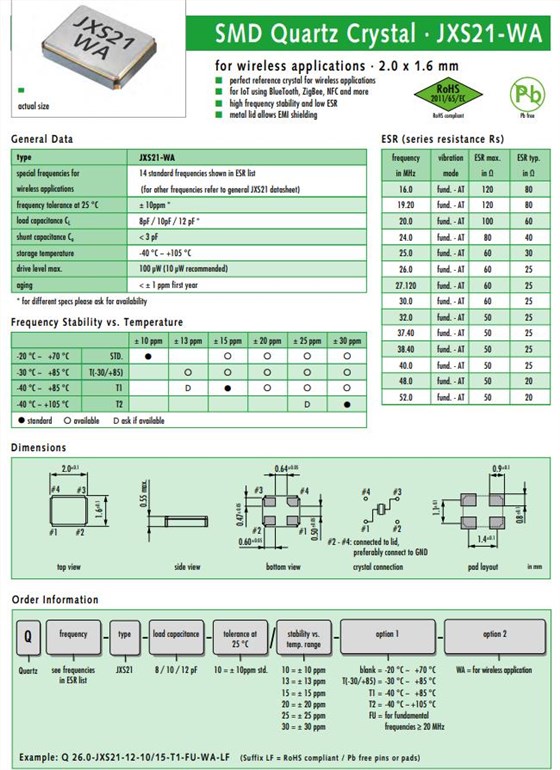

Jauch晶振JXS21-WA,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振

type			JXS21
frequency range			19.2 MHz( fund.AT-cut )
frequency tolerance at 25 °C			± 10 ppm / ± 20 ppm / ± 30 ppm
load capacitance CL			12 pFstandard(option: 8 pF ~ 30 pF / series)
shunt capacitance Co			< 5 pF
storage temperature			-40 °C ~ +90 °C
drive level max.			100 µW (10 µW recommended)
aging			< ± 3 ppm first year (< ± 1 ppm for tol. ± 10 ppm on request)

Jauch晶振JXS21-WA,Q 26.0-JXS21-10-10/10-FU-WA-LF晶振

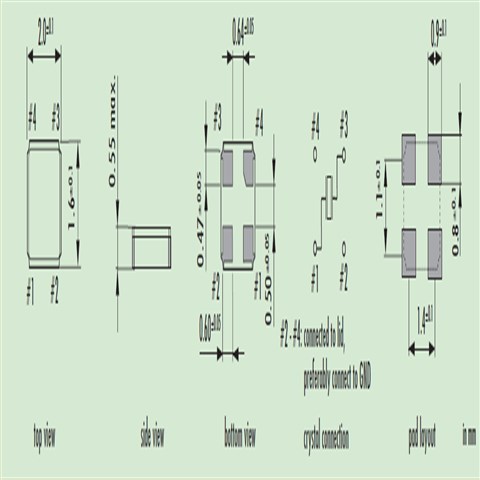

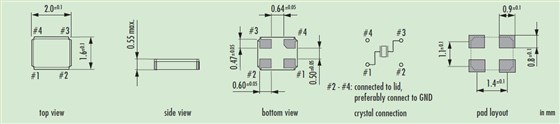

jxs21 2016

JXS21-WA

JAUCH原厂编码	生产商	型号	类型	频率	频率偏差	负载电容
Q 26.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	26MHz	±10ppm	10pF
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	26MHz	±10ppm	12pF
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	26MHz	±10ppm	8pF
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	26MHz	±10ppm	9pF
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	27.12MHz	±10ppm	10pF
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	27.12MHz	±10ppm	12pF
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	27.12MHz	±10ppm	8pF
Q 27.12-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	27.12MHz	±10ppm	9pF
Q 38.4-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	38.4MHz	±10ppm	10pF
Q 38.4-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	38.4MHz	±10ppm	12pF
Q 38.4-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	38.4MHz	±10ppm	8pF
Q 38.4-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	38.4MHz	±10ppm	9pF
Q 40.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	40MHz	±10ppm	10pF
Q 40.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	40MHz	±10ppm	12pF
Q 40.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	40MHz	±10ppm	8pF
Q 40.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	40MHz	±10ppm	9pF
Q 32.0-JXS21-10-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	32MHz	±10ppm	10pF
Q 32.0-JXS21-12-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	32MHz	±10ppm	12pF
Q 32.0-JXS21-8-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	32MHz	±10ppm	8pF
Q 32.0-JXS21-9-10/10-FU-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	32MHz	±10ppm	9pF
Q 19.2-JXS21-10-10/10-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	19.2MHz	±10ppm	10pF
Q 19.2-JXS21-12-10/10-WA-LF	Jauch Quartz	JXS21-WA	MHz Crystal	19.2MHz	±10ppm	12pF
