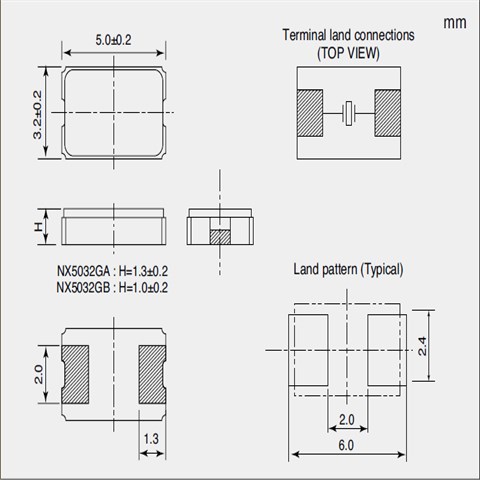

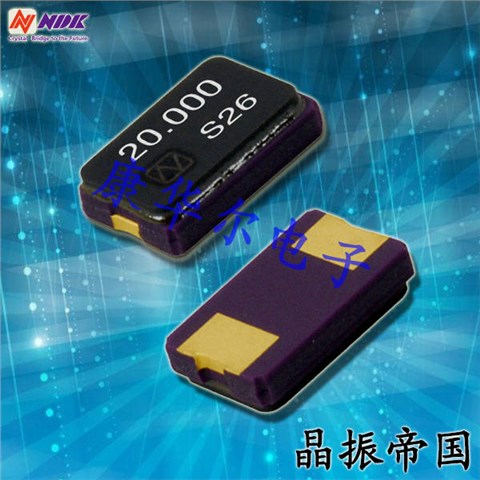

NDK|NX5032GA-14.31818M-STD-CSK-4|14.31818MHz|30PPM|5032，日本NDK晶振,理想的OA/AV应用和配件的汽车。紧凑而薄。(5.0×3.2×1.3mm typ.)。支持从8 MHz开始的低频频率。具有优良的环境特性，包括耐热性和耐冲击性。满足使用无铅焊料进行再流分析的要求。
NDK|NX5032GA-14.31818M-STD-CSK-4|14.31818MHz|30PPM|5032
| 参数 | NX5032GA | |||||||
| 标准频率 | 8 to 10.5 MHz | 10.5 to 50 MHz | 8 to 10.5 MHz | 10.5 to 50 MHz | 50 to 55 MHz | |||
| 泛音顺序 | Fundamental | |||||||
| 频率公差(25 ±3 °C) | ±30 × 10−6 | ±20 × 10−6 | ||||||
| 频率与温度之间的特性( +25 °C) | ±50 × 10−6 | ±30 × 10−6 | ||||||
| 工作温度范围 | −40 to +85 °C | −10 to +70 °C | ||||||
| 储存温度范围 | −40 to +125 °C | −40 to +85 °C | ||||||
| 等效串联电阻 | Refer to *1 | Refer to *2 | ||||||
| 驱动电平 | 50 μW (Max. 500 μW) | |||||||
| 负载电容 | 8 pF | |||||||
| 规格编号 | STD-CSK-7 | STD-CSK-8 | STD-CSK-3 | STD-CSK-4 | STD-CKW3 | |||
NDK|NX5032GA-14.31818M-STD-CSK-4|14.31818MHz|30PPM|5032
| NDK原厂编码 | 生产厂家 | 型号 | 系列 | 频率 | 频率稳定度 |
| NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 24MHz | ±50ppm |
| NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 24MHz | ±50ppm |
| NX5032GA-24.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 24MHz | ±50ppm |
| NX5032GA-25.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±50ppm |
| NX5032GA-25.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±50ppm |
| NX5032GA-25.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±50ppm |
| NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±50ppm |
| NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±50ppm |
| NX5032GA-27.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±50ppm |
| NX5032GA-16.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-16.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-16.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-10.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±50ppm |
| NX5032GA-10.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±50ppm |
| NX5032GA-10.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±50ppm |
| NX5032GA-12.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±50ppm |
| NX5032GA-12.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±50ppm |
| NX5032GA-12.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±50ppm |
| NX5032GA-48.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 48MHz | ±50ppm |
| NX5032GA-48.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 48MHz | ±50ppm |
| NX5032GA-48.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 48MHz | ±50ppm |
| NX5032GA-16.384000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16.384MHz | ±50ppm |
| NX5032GA-16.384000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16.384MHz | ±50ppm |
| NX5032GA-16.384000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 16.384MHz | ±50ppm |
| NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±50ppm |
| NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±50ppm |
| NX5032GA-20.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±50ppm |
| NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 32MHz | ±50ppm |
| NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 32MHz | ±50ppm |
| NX5032GA-32.000000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 32MHz | ±50ppm |
| NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±30ppm |
| NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±30ppm |
| NX5032GA-27M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 27MHz | ±30ppm |
| NX5032GA-12.288M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±30ppm |
| NX5032GA-12.288M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±30ppm |
| NX5032GA-12.288M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±30ppm |
| NX5032GA-14.31818M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 14.31818MHz | ±30ppm |
| NX5032GA-14.31818M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 14.31818MHz | ±30ppm |
| NX5032GA-14.31818M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 14.31818MHz | ±30ppm |
| NX5032GA-25.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±30ppm |
| NX5032GA-25.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±30ppm |
| NX5032GA-25.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 25MHz | ±30ppm |
| NX5032GA-12MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±30ppm |
| NX5032GA-12MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±30ppm |
| NX5032GA-12MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±30ppm |
| NX5032GA-10.000M-STD-CSU-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±150ppm |
| NX5032GA-10.000M-STD-CSU-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±150ppm |
| NX5032GA-10.000M-STD-CSU-1 | NDK晶振 | NX5032GA | MHz Crystal | 10MHz | ±150ppm |
| NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±150ppm |
| NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±150ppm |
| NX5032GA-20.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±150ppm |
| NX5032GA-12.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±150ppm |
| NX5032GA-12.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±150ppm |
| NX5032GA-12.000M-STD-CSU-2 | NDK晶振 | NX5032GA | MHz Crystal | 12MHz | ±150ppm |
| NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±30ppm |
| NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±30ppm |
| NX5032GA-20.000M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 20MHz | ±30ppm |
| NX5032GA-13.56M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 13.56MHz | ±30ppm |
| NX5032GA-13.56M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 13.56MHz | ±30ppm |
| NX5032GA-13.56M-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 13.56MHz | ±30ppm |
| NX5032GA-12.288000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±50ppm |
| NX5032GA-12.288000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±50ppm |
| NX5032GA-12.288000MHZ-LN-CD-1 | NDK晶振 | NX5032GA | MHz Crystal | 12.288MHz | ±50ppm |
| NX5032GA-16MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-16MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-16MHZ-STD-CSK-8 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±50ppm |
| NX5032GA-16MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±30ppm |
| NX5032GA-16MHZ-STD-CSK-4 | NDK晶振 | NX5032GA | MHz Crystal | 16MHz | ±30ppm |
